Home > Products > power barrow > BY800W construction equipments crawler wheelbarrow power barrow

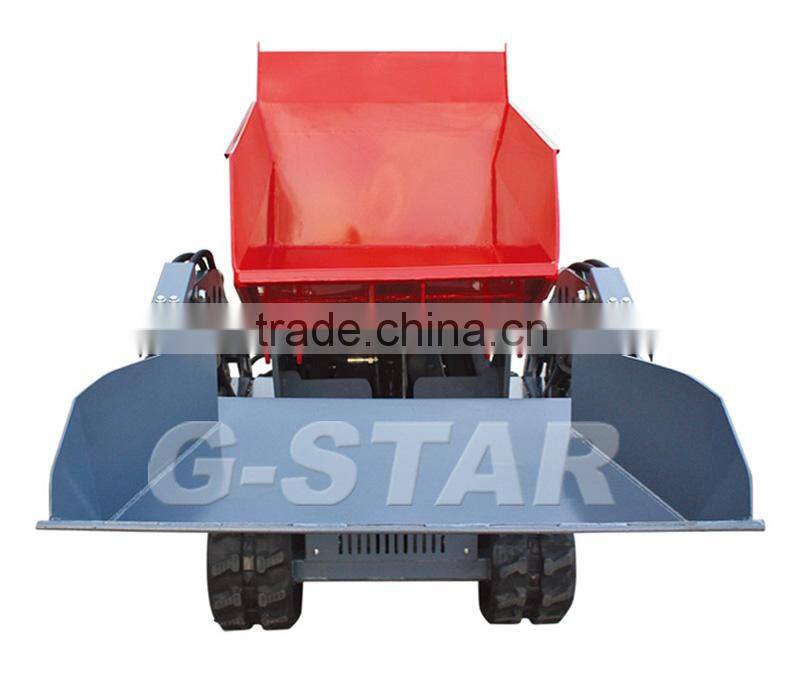

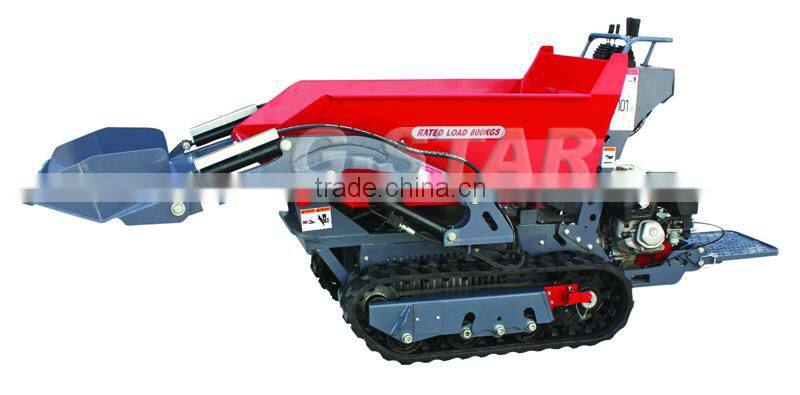

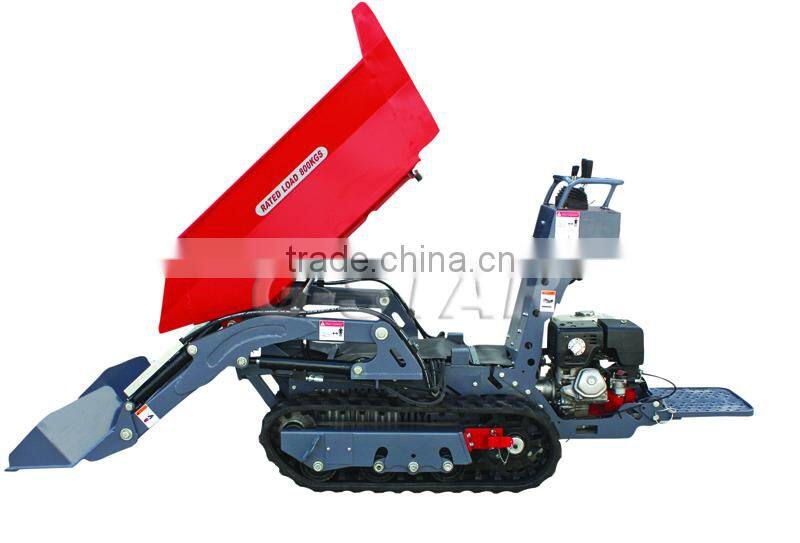

BY800W construction equipments crawler wheelbarrow power barrow
- 500 Unit / Units per Month
- Shanghai Shenzhen Ningbo Qingdao and so on
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
BY400 tracked wheel barrow 400kg self loading power barrow
-
BY300 ant power wheel barrow hydraulic self power barrow
-
BY1000 garden mini dumper truck 1ton self loading mini dumper
-
BY800W steel track dumper self loading crawler mini dumper
-
BY400 mini track dumper made in china hydraulic self loading mini dumper
-
BY300C concrete dumper crawler driven mini dumper
Product Details
Place of Origin | Jiangsu, China | Brand Name | ANT | |
Model Number | BY800W | Tray Material | Metal | |
Wheel Type | Other, Crawler | Load | 800kg | |
Water Capacity | 800kg | Sand Capacity | 800kg |
Product Description
power barrow
Features of power barrow
- Unique design with humanization.
- Piston pump imported from USA Hydro-Gear with global warranty.
- Multi-functional machine with a variety of optional accessonries.
Detailed Description of power barrow
- Maximum loading weight is 800kgs.
- Easy and comfortable operation due to the intuitive controls.
- Self-loading shovel not only can be used as a small excavator but also keep the balance of the machine during unloading.
- Lifting height reaches to 1.4m by X-support.
- Easy climbing and stable crossing the obstacles.
- Spot turning ,mini slipping.
Specifications of power barrow
MODEL | BY800W |
Engine | 13hp 4stroke gasoline or diesel |
Operative weight | 800kgs(1762lbs) |
Max travel speed | 0-4.8km/h(0-3.0mph) |
Transmission | |
Hydraulic pump | 2*variable displ. |
Flow | 2*32.4Vmin(2*8.5gpm) |
Hydraulic motors | 2*orbital |
Brake parking | Mechanical |
Hydraulic system | |
Hydraulic pump | Piston pump |
Flow | 1*13.5Vmin(1*3.5gpm) |
Hi-flow | 1*22Vmin(1*3.5gpm) |
Max pressure | 150bar(2180psi) |
Main valve | 2-3way |
Cooled system | air-cooled |
Skip tipping system | Hydraulic |
Tracks | |
Standard track width | 180mm(7.1in) |
Rocking rollers | Yes |
Track tensioning | Yes |
Loading capacity | |
20GP | 6pcs |
40GP | 14pcs |
Packing | |
Weight | 625kgs |
Dimension | 2170*900*1170(L*W*H mm) |
20GP | 6PCS |
40GP | 12PCS |
CE, EPA, SGS, EU PATENT
1. For our machiners, we have 12 months warranty.
2. Within12 months, if there is some accessory going wrong, we will send you the accessory at once, free of charge or deliver the spare parts in next order.
3. No responsibility for man-made destroy.
4. If the buyer has any questions from our technical department, we can supply on-line service.
POWER BARROW SERIES
Model | Feature and Working Type | Engine Optional | Loading Weight | |
BY150 | Manual | Honda, Loncin | 150kg | |
BY250S | Manual (Chain Drive) | Honda, B&S, Loncin | 250kg | |
BY250X | Electric Self Loaing | B&S | 300kg | |
BY300S | Manual (Chain Drive) | Honda, B&S, Loncin | 300kg | |
BY300X | Electric Self Loaing | B&S | 300kg | |
BY300C | Manual (Crawler Drive) | Honda, B&S, Loncin | 800kg | |
BY800 | Piston Pump Self Loading (1.4m hit up, shovel) | Honda, B&S, Diesel | 800kg | |
BY800W | Piston Pump Self Loading (shovel) | Honda, B&S, Diesel | 800kg | |
BY800S | Piston Pump Self Loading | Honda, B&S, Diesel | 800kg | |
BY1000 | Piston Pump Three Sides Self Loading | Honda, B&S, Diesel | 1000kg | |
BY1000M | Piston Pump Self Loading | Honda, B&S, Diesel | 1000kg |
NANTONG G-STAR INTERNATIONAL TRAIDNG CO.,LTD established in 2003, is a modern enterprise specialized in research & development, production and sales of light construction machinery. The present leading series of products include power barrow, construction machinery and garden machinery.
Our credentials includes CE certifications, EPA certifications and European Patent cetifications. Every year we participate the machinery exhibitions at home and abroad.
As a result of our high products and outstanding customer service, we have gained a global sales network reaching Australia, Gemany, Canada, Kazakhstan, Russia, Malaysia, New Zealand and so on...
OUR PRODUCTS R&D TEAM
OUR EXHIBITONS
*Q:What's your MOQ of this term?
A:1 unit
*Q:Could you stick customer's brand on the products?
A:Of course,we welcome the OEM orders.
*Q:How long is your warranty?
A:6 months for used or 1 year after leave factory
*Q:What's your packing?
A:Solid carton,steel frame with carton cover or wooden case
*Q:What's your payment method?
A:T/T 30% deposit,the balance against the copy of B/L Or L/C at sight
*Q:What's your delivery time?
A:Delivery timely about 15-20 days after receiving the deposit
Thanks for your time! More details please send inquiry or contact us directly.
Attn: Candy Tang
Skype: candytjj
Tel: 86-513-68881081 Fax: 86-513-68881085
