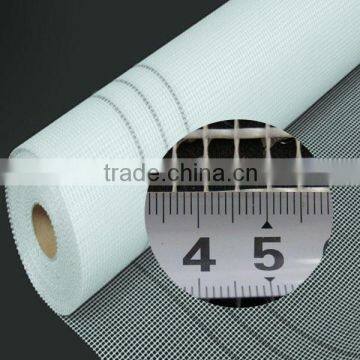

20% resin coated C-Glass medium Alkali fiber glass wire mesh for wall insulation

Specifications

Fiber glass wire mesh
1.C-Glass fiber glass yarn
2.20% resin coating
3.Medium Alkali
4.Wall insulation material

20% resin coated C-Glass medium Alkali fiber glass wire mesh for wall insulation



1.Features of fiber glass wire mesh

 1.Good corrosion resistance against alkali.

  2.High strength, light weight.

  3.Good dimensional stability, stiffness, smooth, not easy to shrinkage, excellent orientation.

  4.Good toughness and impact resistance

  5.Good mildew resistance and pest control.

  6.Fire protection, thermal,sound and electric insulation.



2. Applications of fiber glass wire mesh

   1.The wall enhanced material such as glass fiber wall mesh cloth, GRC wall panels, EPS exterior insulation board, gypsum board, etc.

   2.Reinforced cement products.For example:Roman column, the flue, etc.

   3.Private networks for VPNS, granite, Mosaic marble.

   4.Glass fiber grid cloth of waterproof material, asphalt roofing.

   5.Reinforced plastic, rubber framework.

   6.Fire prevention board.

   7.Grinding wheel base fabric.

   8.Road surface with geogrid.

   9.Used in sealing and so on.



3. Packing of fiber glass wire mesh

1.Packing inside film bag per 50m or 100m in roll.Two or more inside one weaving bag.

2.Packing inside film bag per 50m or 100m in roll.Four or more inside one carboard carton



4.Specification

 Fiber glass wire mesh

fiber glass wire mesh
No. of Product	Mesh size(mm)		Weight (g/m2)	T.S(N/50mmx20mm)		Resin content(%)	Weaving
	Radial	Weft		Radial	Weft
FWM504	4	4	50	≥650	≥500	12	Leno
FWM505	5	5	50	≥650	≥500	12	Leno
FWM602	20	10	60	≥750	≥700	12	Leno
FWM655	5	5	65	≥660	≥660	18	Leno
FWM705	5	5	70	≥750	≥700	18	Leno
FWM704	4	4	70	≥400	≥1050	18	Leno
FWM805	5	5	80	≥750	≥850	18	Leno
FWM1254	4	3.5	125	≥1050	≥900	18	Leno
FWM1255	5	5	125	≥1180	≥1180	18	Leno
FWM1455	5	5	145	≥1300	≥1650	18	Leno
FWM1454	4	4	145	≥1000	≥1300	18	Leno
FWM1605	5	5	160	≥1200	≥1200	18	Leno
FWM1604	4	4	160	≥1200	≥1300	18	Leno
FWM1804	4	3.5	180	≥1250	≥1500	18	Leno
FWM1253	2.5	2.5	125	≥2000	≥2000	18	Leno
