1.Model LF-UVO3-1500 Features

Test method:                         UV absorption method, automatic zero calibration,

Product advantages:             Data refresh per second, real online detection.

The light source system:       Long-life UV light source (253.7nm),

Working way:                        High quality suction pump built inside, to ensure that the sample stability.

Intelligent compensation:      The built-in light source automatic compensation function, the internal temperature sensor

                                              (compensation), built-in pressure sensor (compensation).

Measuring range:                  Testing scope very wide 0-1000PPM (optional 0-100PPM range).

Small size:                            145*70*165mm.

Data shows:                          4 LCD display, can choose the backlight, can also clear reading in darkness.

Output function:                    Standard 4-20mA current signal output or optional RS-485 communication.

2. Technical parameters of product

3. Application

LF-UVO3-1500 ozone analyzer is mainly used for ozone concentration monitoring; The main applications as below; air intake, and return air inlet of air conditioner; Assessment of ozone oxidation ability; ozone sterilization cabinet concentration detection; Medical ozone source detection; Experimental study of ozone; Sewage treatment project, and etc.

Adopting ultraviolet lamp as the light source system, the working life of ultraviolet lamp is more than 20000 hours; The measured data is stable and high precision;

The light pool adopts the integrated structure of shunting layer. So, there are some advantages as following.

No ozone leakage, resist for the higher pressure gas flow, and max gas flow, easy to clean, convenient maintenance and simple operation. There built one internal gas filter to keep the light pool clean, avoid dust flowing in which result in “zero drift” and “data drift”. The function of automatic zero calibration to ensure the accuracy of concentration and avoid zero drift; The device adopt the standard signal output with 4-20mA.

LF-UV1000 ozone gas concentration analyzer is a high-tech product of the specific application of the photoelectric conversion detection technology. Which adopt the advanced microprocessor control technology, the long-life light source pulse mode, characteristics of the ultraviolet light absorption by ozone, designed according to Bill Lambert (Beer-Lambert) ozone concentration detecting instrument law;

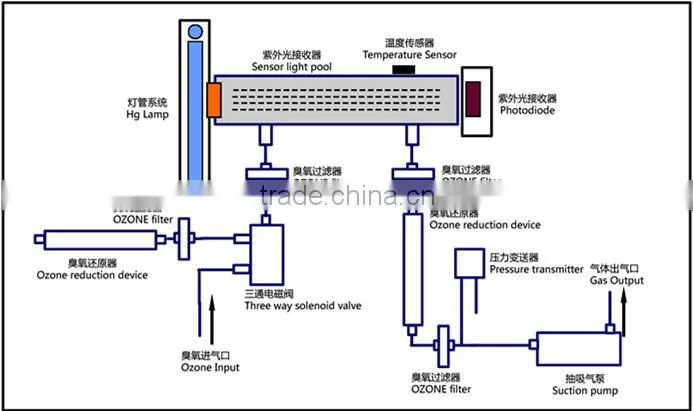

4. Detection Principle Diagram

 5. Structure Diagram

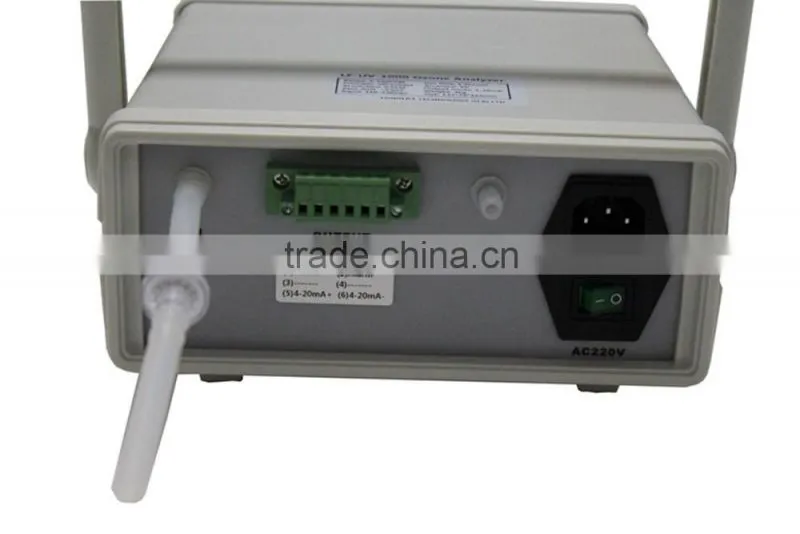

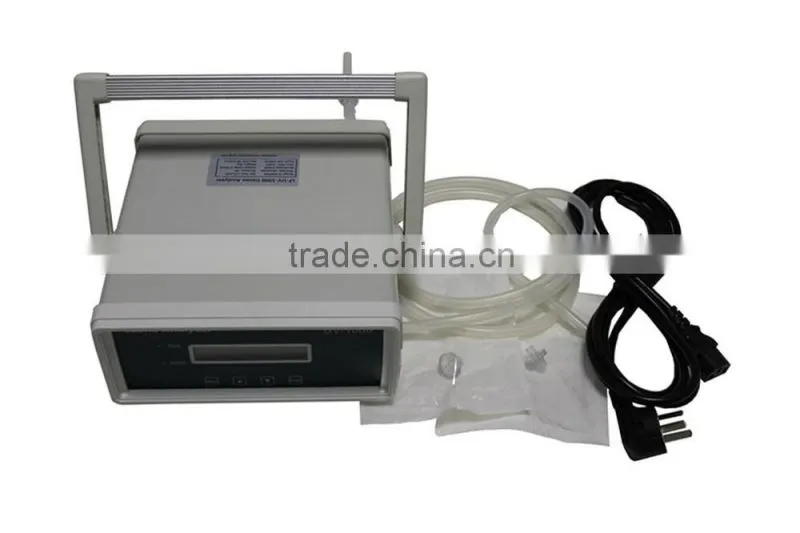

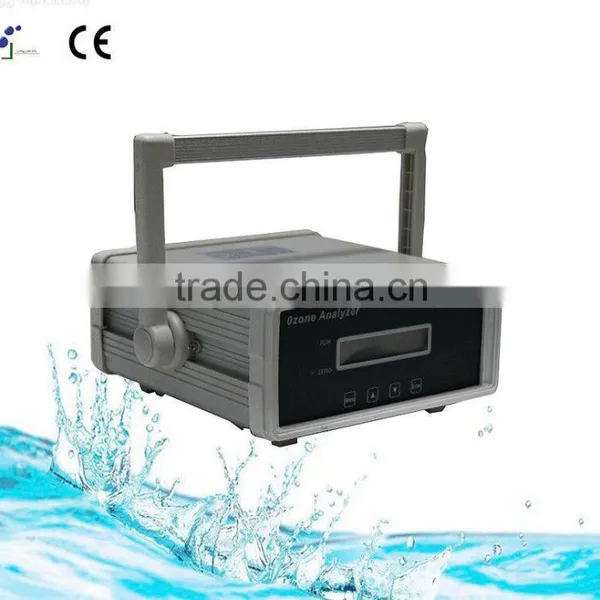

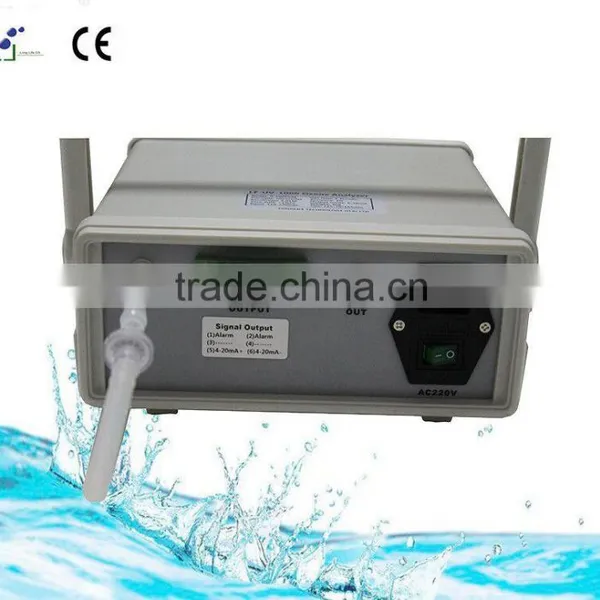

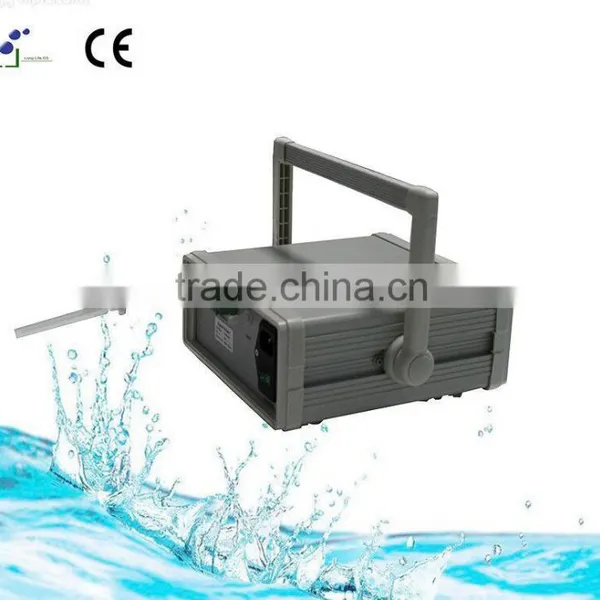

 6. Main Product Photo

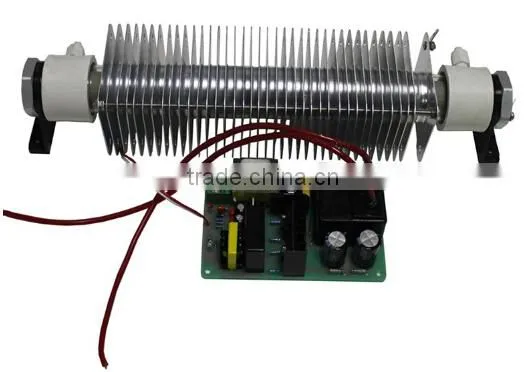

7. Ozone Generator Analyzer/Monitor/Tester

http://longlifeozone.en.china.cn/product/60252745768-221802020/High_quality_LF_SP015G_Medical_ozone_generator_ozone_tube.html

8. Factory

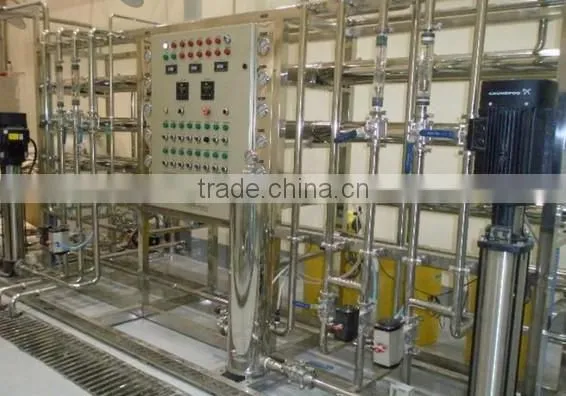

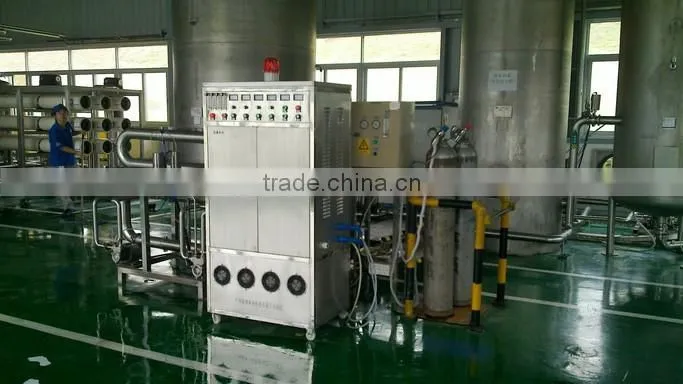

9. Application

10. Certificate
