Wall mounting bank ATM machine with cash acceptor and receipt printer

Name: Wall mounting bank ATM machine with cash acceptor and receipt printer
Brand: HUNGHUI
Availability: InStock

FOB Price

USD $1,500 - $5,000 / Set

1 Set(Min.Order)

Supply Ability 3000 Piece / Pieces per Month
Port Shenzhen
Payment Terms:T/T Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Place of Origin:

Guangdong, China

Brand Name:

HUNGHUI

Model Number:

KH-1012

Packaging Details

PE foam, Carton Case & Wooden Crate.Lead time: About 3-20 working days after order and drawing confirmed.

Product Description

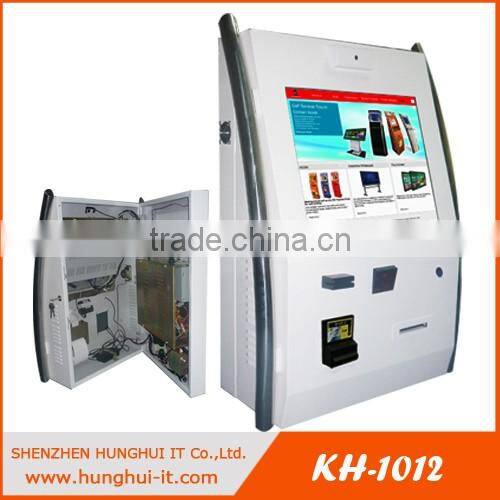

Wall mounting bank ATM machine with cash acceptor and receipt printer

Product Quick Specification:

Pc Configutation	Industrial Board	Seavo/ Gigabyte/Advantech AIMB 562
	CPU	Dual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7
	RAM	2G/4G/8G
	HDD	500G
	Interface	10COM(RS-232)Ports;1LTP;10* USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card
Monitor	Screen Size	17 inch/19inch(other size optional)
	Brightness	250cd/m2
	angle	horizontal 100°above;Vertical 80°above
	Contrast	1000:1
	Backlight tube life	more than 40,000hours
	Max. resolution	1280*1024
Touch Screen	Screen Size	17/19 inch Diagonal ( optional)
	Resolution	4096x4096
	High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times
Bank/Credit Card Reader	Interface	RS232
	Card Type	Support Magcard, IC Card, RF Card, Mifare S50,S70,UL Card
	Power Voltage	DC 24V±5%
	Card Entry method	Magnetic signal, Optoelectronic signal and rear card signal
Encrypted Pinpad	Feature	3DES Metal EPP : 16 keys, waterproof, dustproof, vandal proof
	Keylift~span	2,000,000 cycles
	Key force	2~3N
	Key trip	>2.5mm
	Protection level	ip65
Cash Acceptor	Validation Rate	96% or higher
	Banknote Insertion	Four-way
	Escrow	One banknote
	Capacity	1000 notes Max
Coin Acceptor	Coin Acceptance	Max 32 coin types, in 216 or 132 channels
	Detection ability of counterfeit Coins	with high detection ability of counterfeit coins
	Accepting Speed	2 Coins/Sec
	Supply Voltage	10V-16V DC
Epson Receipt Thermal Printer	Autocutter	included
	Technology	Thermal printing
	Paper width	80mm
	Printing speed	150mm/s
	Data buffer	4KB
	Interface	RS232 ,USB
Cash Dispenser	Cash Box	4 cash box can store 4 denominations
Cash Dispenser	Reject bin	1 reject bin
UPS	Input voltage	145-290va
	Output voltage	200-255va
	Max time for supplying a single PC	3~20minutes (for single PC)
Operation System	Windows xp or windows 7, copy version
Kiosk Cabinet	2mmPowder-coated Carbon steel metal for hpuse and 6mm strongbox with pin lockers for security Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.
Packing	Security Packing method with bubble foam and wooden case
Other Optional Components
1	Coin Dispenser
2	Advertising screen
3	Barcode scranner
4	Passport Scanner
5	Webcam
6	A4 printer...etc

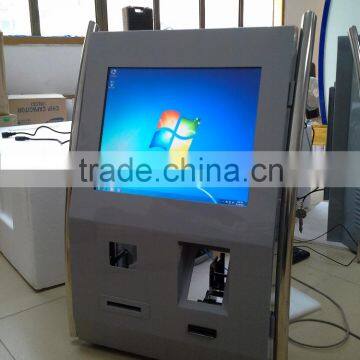

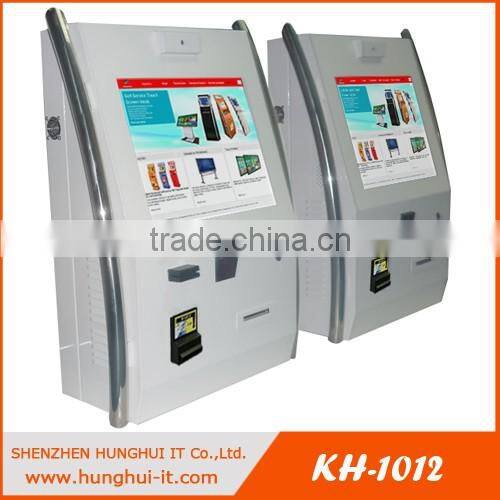

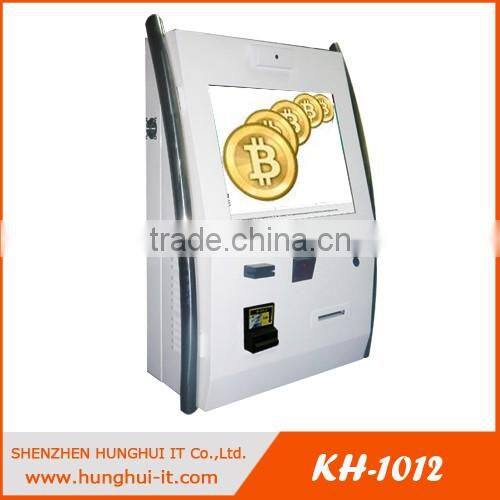

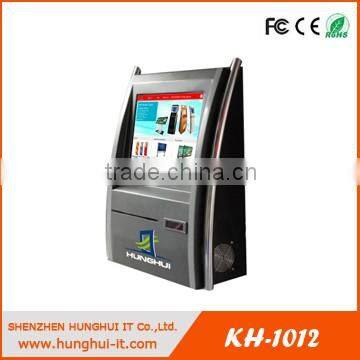

Detailed Images

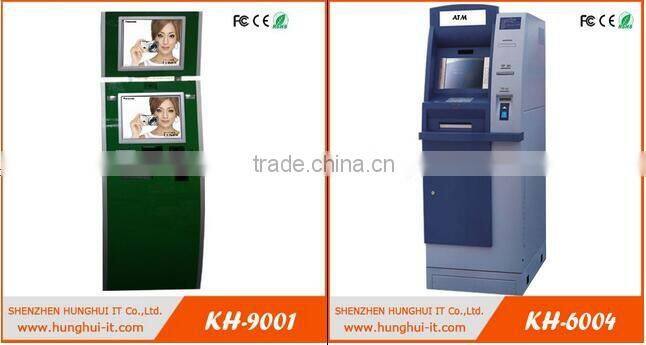

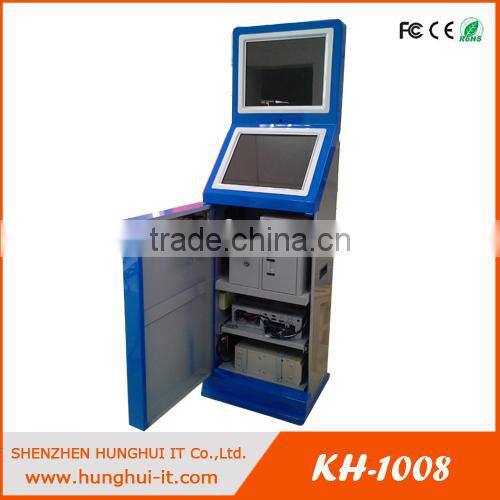

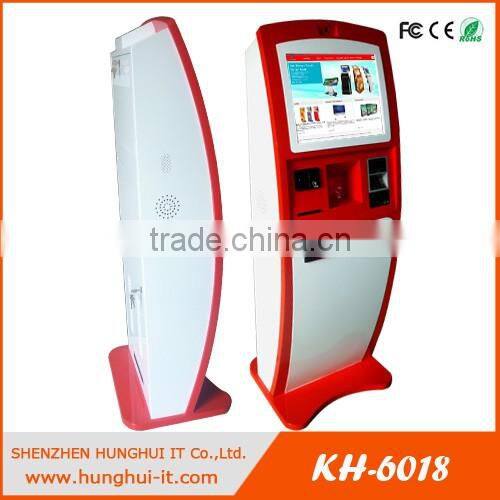

Other Models of the payment machines:

Specifications:

1.Sleek Bank ATM Cash ATM Machine
2.High Reliability and Safety bank ATM Kiosk
3.Optional size LCD Touch screen display

Wall mounting bank ATM machine Features:

1. Smart design & elegant appearance, wear-resistant and anti-corrosion power coating;

2. Ergonomically and compact structure, very convenient in operation and maintenance;

3. Anti-vandalism, water-proof, dust-proof and high-safety performance;

4. Rugged steel frame and long hours running, high precision, high stability & reliability;

5. Cost-effective, customer orientated design and environment adaptable.

Basic Functions:

· Retail/ Ordering/ Payment

· Internet/Information Access

· Ticketing/Card Printing

· Tel / Transport Card Recharging

· Photos,Ring Tones Download

· Product Information Release

· Account inquiry & transfer

FAQ:

1) Q:What is the minimum order?

A: Yes, our company mainly deals with wholesale deals,but if you insist buying one set,or you just need one set,we would be very likely to make the MOQ as 1 set for you though, except for some particularly small size .

2) Q:What payment methods your company accept?

A:We accept most ofthe payment methods,but mainly accept T/T,L/C,Western Union,Paypal and MoneyGram.

3) Q:How long is the warranty time for your products?

A:Our officially promised warranty time is one whole year after delivery at best.

4) Q:I would like to ask you if it's possible to have my logo on the product.

A:We hope you know that our company HungHui perfectly support customized logo service. But, we also hope you know that it's an extra service,so a little bit extra service fee is needed.

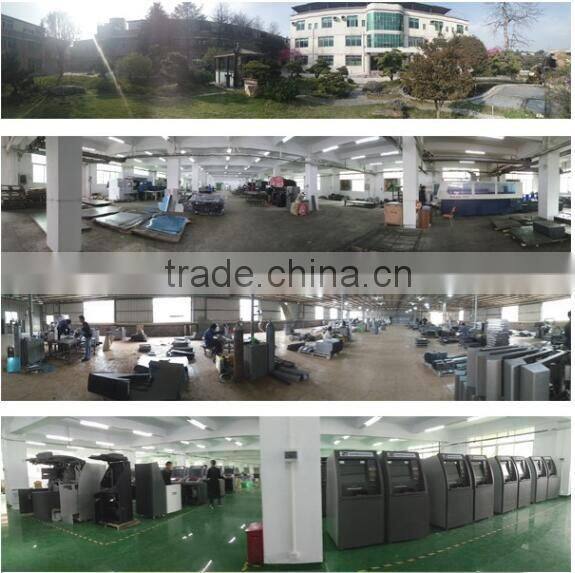

Company Profile

Shenzhen Hunghui IT Co., Ltd.

Shenzhen Hunghui IT Co., Ltd. is a leading kiosk, touchscreen and interactive whiteboard manufacturer and solution provider with long-term partnerships with many operators around the world. Hunghui is a proven leader in the kiosk industry and we distinguish ourselves from others in the self-service industry by assembling a team of professionals with in-depth expertise for the design and manufacture of self-service kiosks/ATMs. Being consistently innovative and making bold breakthroughs with state-of-the-art technologies, we partner with customers by giving them forward-thinking advice in order to design and produce more competitive, high-quality and aggressively priced products to meet their needs.

Since the very beginning of our establishment, "Advanced technology, high quality and best service" has always been the motto of Hunghui, with the management concept of "presenting personal style, pursuing perfection and following classical trend". Hunghui is dedicated to improving our technology in the field and product quality continuously, so as to offer customers classical products with the best performance and competitive price, ensuring that the price you pay for our products worth excellent value for money.

We apply ourselves to creating higher benefits for all customers & dealers with the purpose of growing together.

OEM/ODM projects are welcomed.
---------OEM/ODM projects enables us to grow together, and thus become reliable co-operators.

Accept material-processing orders & requirements
---------The perfect combination of your materials and our sincerity & professional skills makes perfect products.

Provide a full-service covering R&D, manufacture and sale
---------We take your requirements into high consideration and do our best to serve your special needs.

We now sincerely invite dealers to join us for a brilliant future together!
