YEPO BEARING
Deep groove ball bearings are the most widely used bearings. They utilize an uninterrupted raceway that makes them optimal for radial loads . This design permits precision tolerance, even at high-speed operation.
Deep Groove Ball Bearing Available Series
Miniature Ball bearing series: 67X. 68X. 69X. 60X. 62X. 63X. MRXX. MFXX
General single row series: 67XX. 68XX. 69XX. 160XX. 60XX. 62XX. 63XX. 64XX
Thickening Ball bearing series: 622XX. 623XX. 630XX. 632XX. 633XX. 638XX
Double row series: 42XX. 43XX
Stainless steel series: SS60XX. SS62XX. SS63XX. SS69XX. SSRXX. SSFRXX
Non-standard series: 60/XX. 62/XX. 63/XX

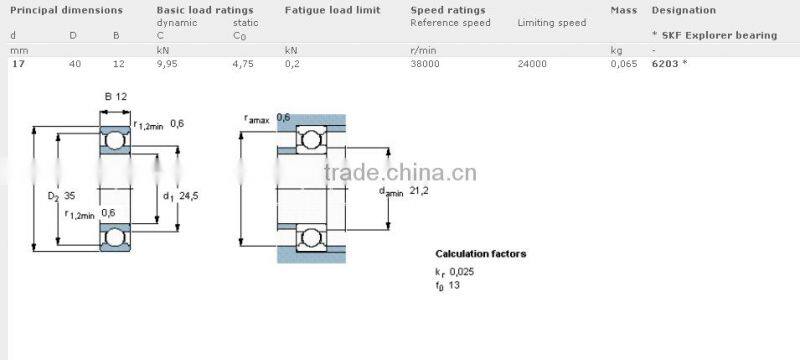

6203 data for your reference:
6200 Series full sheet data:
| Bearing No. | d | D | B | W.KG |
| 6200 | 10 | 30 | 9 | 0.032 |
| 6201 | 12 | 32 | 10 | 0.037 |
| 6202 | 15 | 35 | 11 | 0.045 |
| 6203 | 17 | 40 | 12 | 0.065 |
| 6204 | 20 | 47 | 14 | 0.11 |
| 6205 | 25 | 52 | 15 | 0.13 |
| 6206 | 30 | 62 | 16 | 0.20 |
| 6207 | 35 | 72 | 17 | 0.29 |
| 6208 | 40 | 80 | 18 | 0.37 |
| 6209 | 45 | 85 | 19 | 0.41 |
| 6210 | 50 | 90 | 20 | 0.46 |
| 6211 | 55 | 100 | 21 | 0.61 |
| 6212 | 60 | 110 | 22 | 0.78 |
| 6213 | 65 | 120 | 23 | 0.99 |
| 6214 | 70 | 125 | 24 | 1.05 |
| 6215 | 75 | 130 | 25 | 1.20 |
| 6216 | 80 | 140 | 26 | 1.40 |
| 6217 | 85 | 150 | 28 | 1.80 |
| 6218 | 90 | 160 | 30 | 2.15 |
| 6219 | 95 | 170 | 32 | 2.60 |
| 6220 | 100 | 180 | 34 | 3.15 |
| 6221 | 105 | 190 | 36 | 3.70 |
| 6222 | 110 | 200 | 38 | 4.35 |
| 6224 | 120 | 215 | 40 | 5.15 |
| 6226 | 130 | 230 | 40 | 5.80 |
| 6228 | 140 | 250 | 42 | 7.45 |
| 6230 | 150 | 270 | 45 | 9.40 |
| 6232 | 160 | 290 | 48 | 14.50 |
| 6234 | 170 | 310 | 52 | 17.50 |
| 6236 | 180 | 320 | 52 | 18.50 |
| 6238 | 190 | 340 | 55 | 23.00 |
| 6240 | 200 | 360 | 58 | 28.00 |
| 6244 | 220 | 400 | 65 | 37.00 |
| 6248 | 240 | 440 | 72 | 51.00 |
| 6252 | 260 | 480 | 80 | 65.50 |
| 6256 | 280 | 500 | 80 | 71.00 |
| 6260 | 300 | 460 | 74 | 88.50 |
| 6264 | 320 | 580 | 92 | 110.00 |
| 6268 | 340 | 620 | 92 | 110.00 |
6300 series full data sheet
| Bearing No. | d | D | B | W. KG |
| 6300 | 10 | 35 | 11 | 0.052 |
| 6301 | 12 | 37 | 12 | 0.06 |
| 6302 | 15 | 42 | 13 | 0.083 |
| 6303 | 17 | 47 | 14 | 0.113 |
| 6304 | 20 | 52 | 15 | 0.145 |
| 6305 | 25 | 62 | 17 | 0.235 |
| 6306 | 30 | 72 | 19 | 0.345 |
| 6307 | 35 | 80 | 21 | 0.464 |
| 6308 | 40 | 90 | 23 | 0.636 |
| 6309 | 45 | 100 | 25 | 0.829 |
| 6310 | 50 | 110 | 27 | 1.06 |
| 6311 | 55 | 120 | 29 | 1.37 |
| 6312 | 60 | 130 | 31 | 1.72 |
| 6313 | 65 | 140 | 33 | 2.11 |
| 6314 | 70 | 150 | 35 | 2.57 |
| 6315 | 75 | 160 | 37 | 3.08 |
| 6320 | 100 | 215 | 47 | 7 |
| 6340 | 200 | 420 | 80 | 3.67 |
| 6344 | 220 | 460 | 88 | 4.28 |
Characteristics
Low-weight, compact designs.
A wide range of sizes.
Simple in design
Suitable for high and even very high speeds
Main Usage
Car: the rear wheels and electric device, the transmission parts
Electric: general motors, and household electrical appliances
Others: instrument, internal combustion engines, construction machinery, railway vehicles, loading/unloading machinery, agricultural machinery, all kinds of industrial machinery
Package
1, For heavy bearing packages we use wooden case packing;
2, For light bearing packages we use industry packing.
Q. How to place an order?
A. Send us enquiry directly at the bottom, give us the bearing model with quanity, Brand,material, payments way,or other special requirements you want.
Q. Can I get a sample order?
A. Yes, you can. It depends on the total quantity and price.
Q. What is the smallest order can you accept?
A. The total amount can not below USD500.00 not including shipping fee.
Q. What is the delivery payments ?
A. EXW, FOB, CIF, you can choose.
Q. What's the shippping way ?
A. Sea transportation, DHL, TNT, UPS,FEDEX, as per your requirements.
Q. What is the lead time?
A. 5-7 days for small order in stock; 15-30 days for large order.
