plastic granulating machine

Specifications

plastic granulating machine
-automatic control
-raw material:PET/PP/PE
-capacity:50-800kg/h
-low energy consumption

plastic granulating machine



Description of plastic granulating machine :



This plastic granulating machine SHJ series parallel twin screw extruder, is suitable for producing PET granules from clean PET flakes.This machine is composed by SHJ parallel twin screw extruder, die, hydraulic screen exchanger, cooling flume, air dryer, cutter, silo, and could also be applied to other material like PET PP PE PA ABS etc.The SHJ series extruders are specially designed for PET bottles, flakes, PVC, Plastic sheets and other crushed materials, with good performance, high output, less power consumption cost per kilogram, and easy operation.



Stuctrure of plastic granulating machine :



Stage 1 is single screw extruder

Stage 2 is SJ low speed single screw extruder. Two machines are placed vertically



Advantages of plastic granulating machine :



1. Increasing the operation variables and realizing the process because of two-stage machine.

2. High effective and production capacity.

3. Good at process heat-sensitive material and devolatilization operation, Such as PVC, XLPE.

4. Zero halogen cable, shield material, carbon black etc.



Main parameters of plastic granulating machine :



Model	SHJ20	SHJ30	SHJ50	SHJ65	SHJ72	SHJ92
Screw diameter(mm)	21.7	30	50.5	62.4	71.2	91
Rotate speed(mm)	600	400	400/600	500/600	400/500	400/500
Motor power (kw)	4	11	11/15	55/75	90/110	220/250
L/D	32-40	28-48	28-48	28-48	28-48	28-40
Output(kg)	2-10	5-30	40-80	100-300	300-600	600-1000



Pelletizing mode of plastic granulating machine :



1. Water cooling strands pelletizing line





(1) High speed mixer  (2) Solids conveyer  (3)Main feeder  (4) Side feeder  (5) Glass fiber  (6) Twin screw extruder  (7) Water trough  (8) Air-knife  (9)  Pelletizer  (10) Product container



2) Air-cooling hot face pelletizing line



(1) Metering feeder  (2) Twin screw extruder  (3) Air-cooling hot face pelletizer  (4) cyclone separating device  (5) Air-cooling vibrating sieve



3) Water-ring hot face pelletizing line



(1) High speed mixer  (2) Main feeder  (3) Side feeder  (4) Twin screw extruder  (5) Water-ring granulator  (6) Centrifugal dewatering machine  (7) Vibrating sieve  (8) Product container

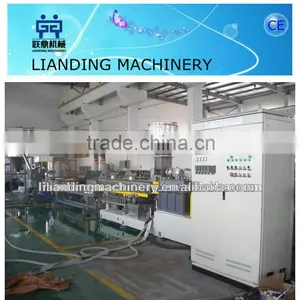

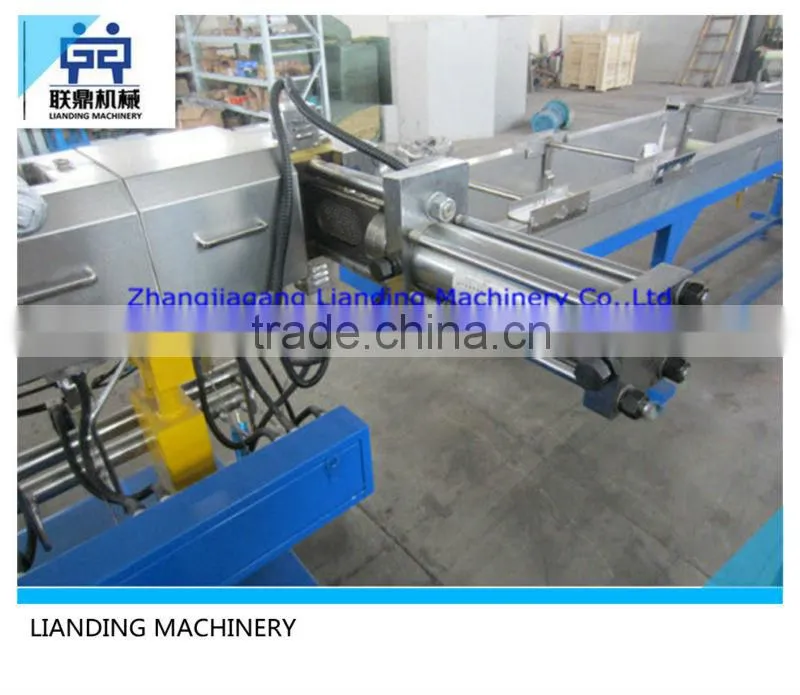

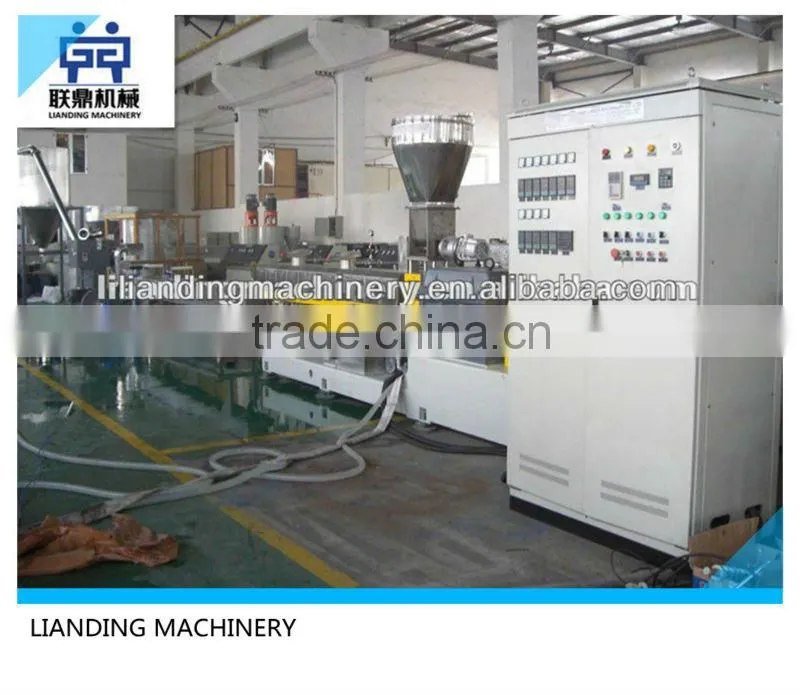

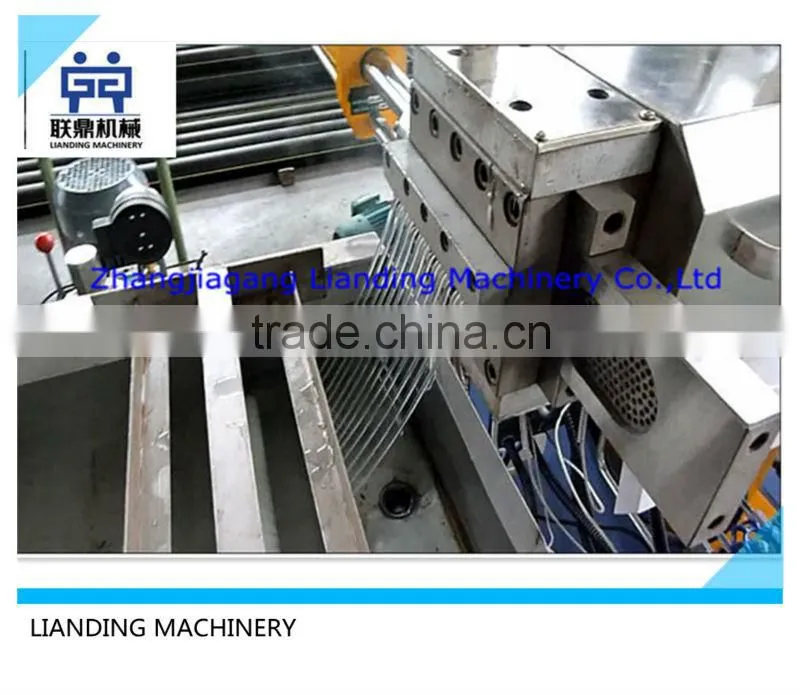

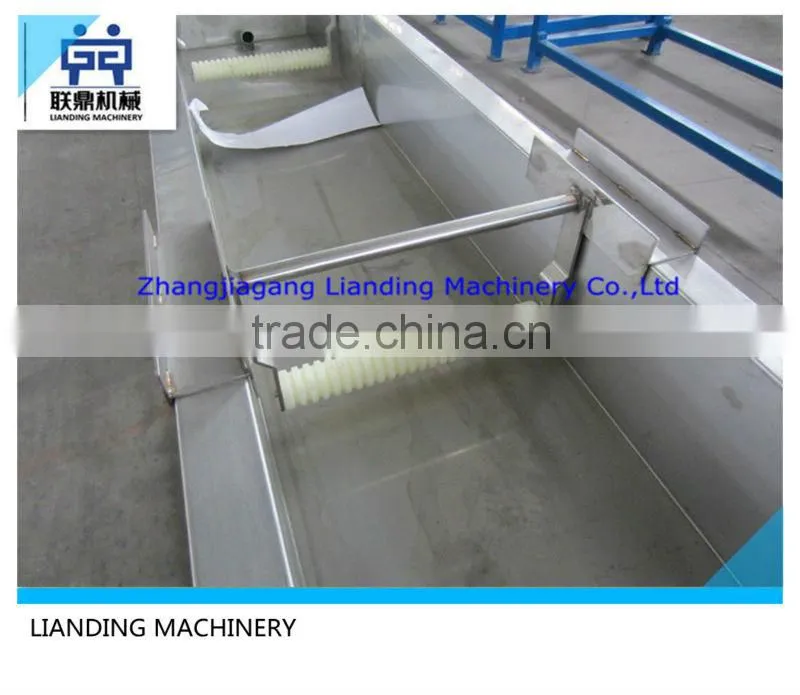

Photos show of plastic granulating machine :







Loading pictures of plastic granulating machine :









Payment of plastic granulating machine :

1. 30% T/T as deposit, and 70% T/T before delivery.

2. 100% irrevocable L/C at sight.



Package of plastic granulating machine :

1. Film package: we used simple package suit for shipping.

2. Wooden package: If you want to wooden package, you should paid extra cost.



After sales-service of plastic granulating machine :

1.If the equipment fails due to the quality of the machine during one year, we will provide replacement and the repair Free of Charge. After One Year customer must pay for Spare Parts, Saiou will provide long-term technical assistance.

2.Workers must operate the machines according to the design of the machine. Saiou Machinery will not be responsible for accidents which are caused by improper operation of workers.





If you are interested in this machine,please contact us without hesitate,we will ensure you high quality and low price.Welcome to send your enquiry for more information,we will reply to your enquiry within 12 hours.
