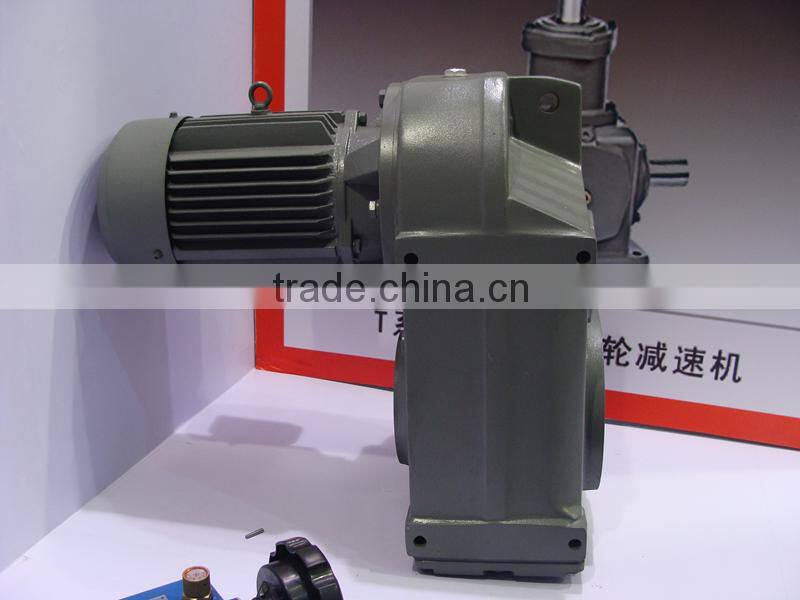

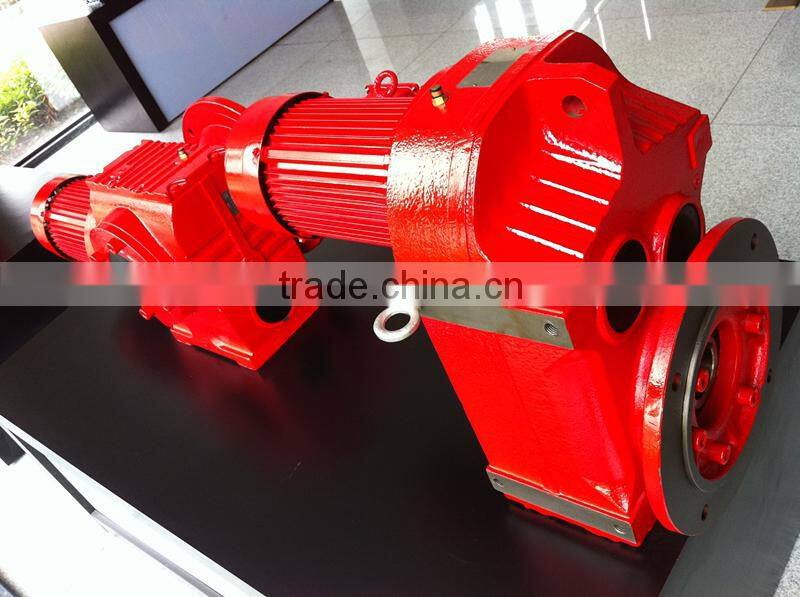

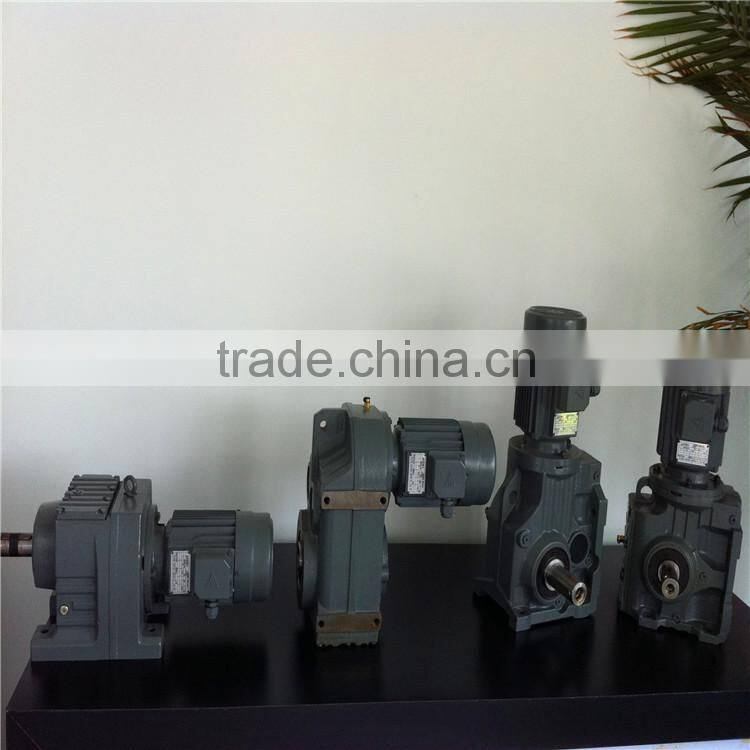

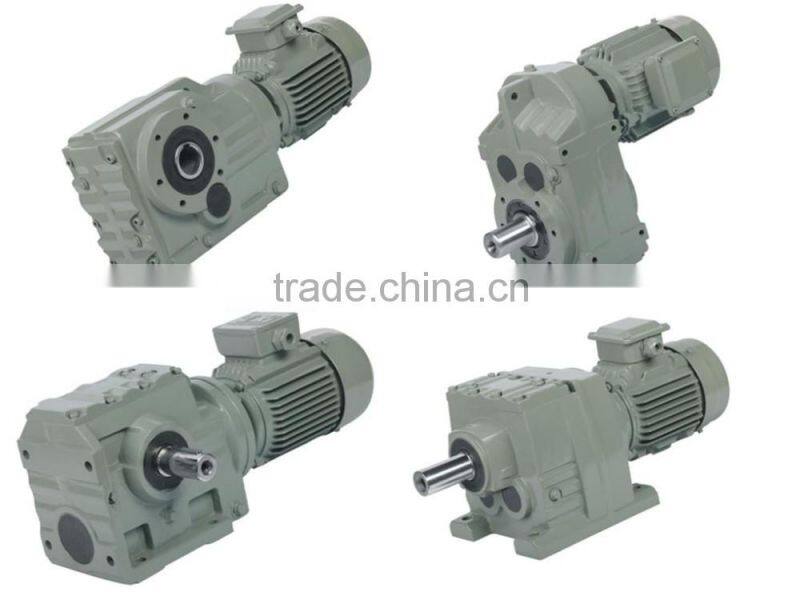

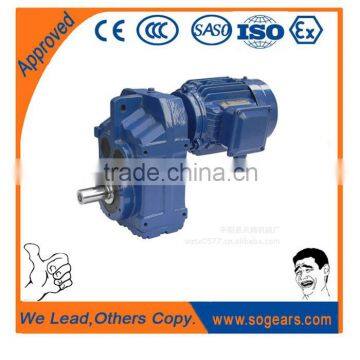

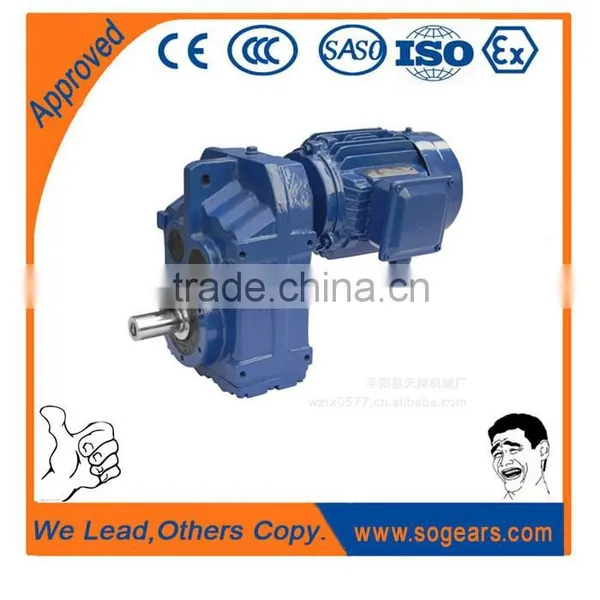

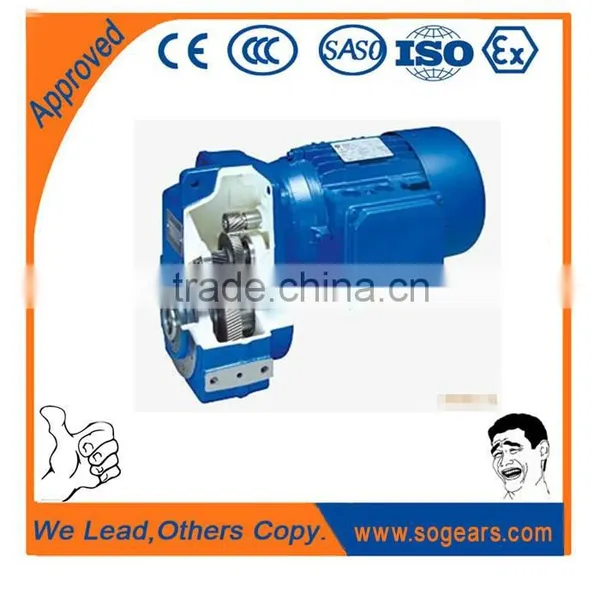

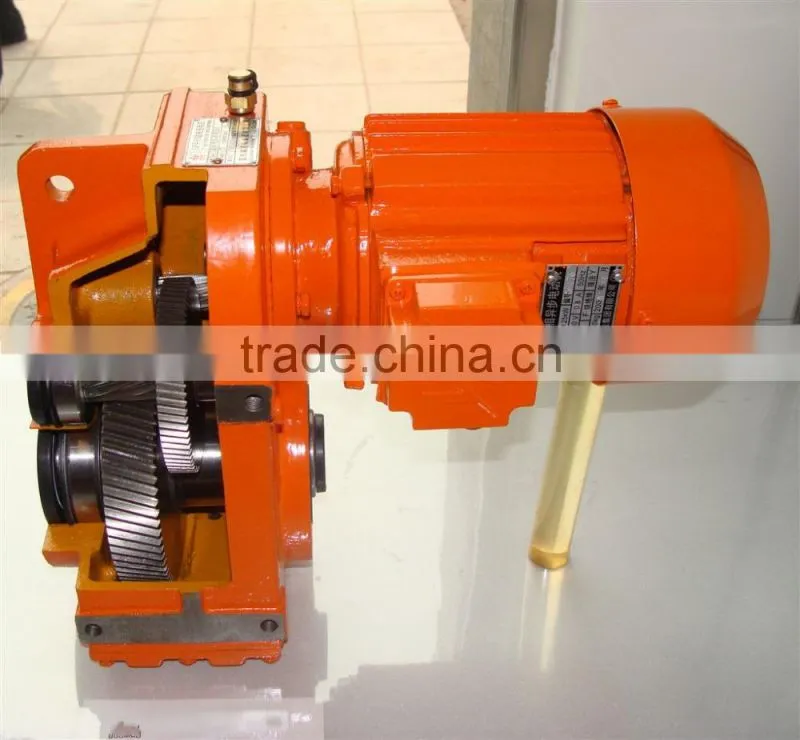

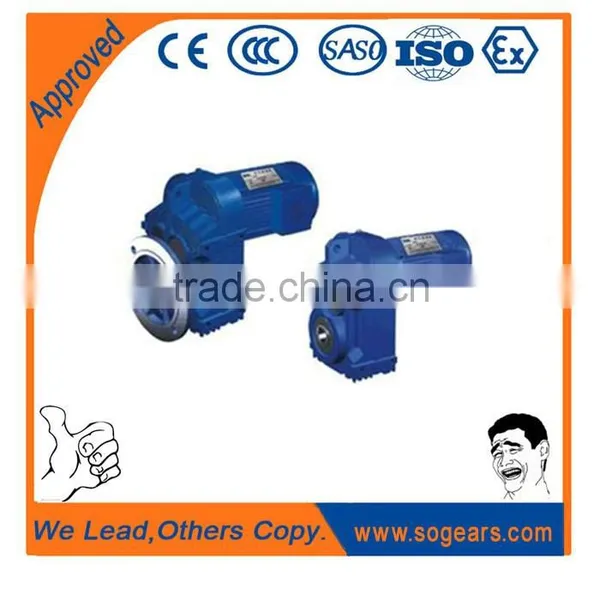

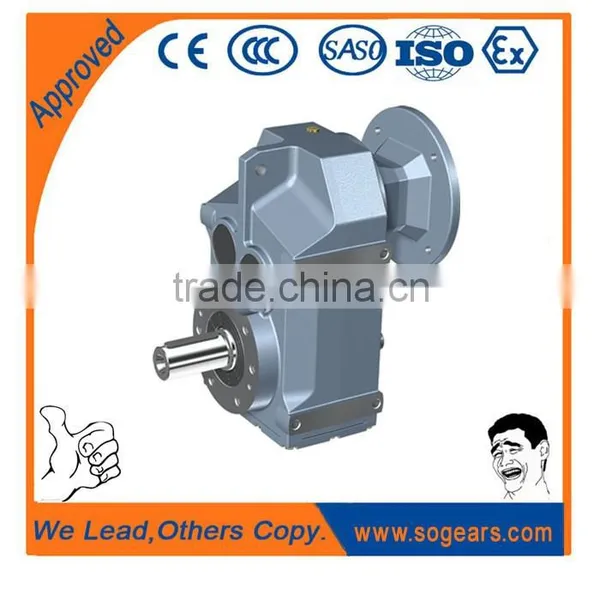

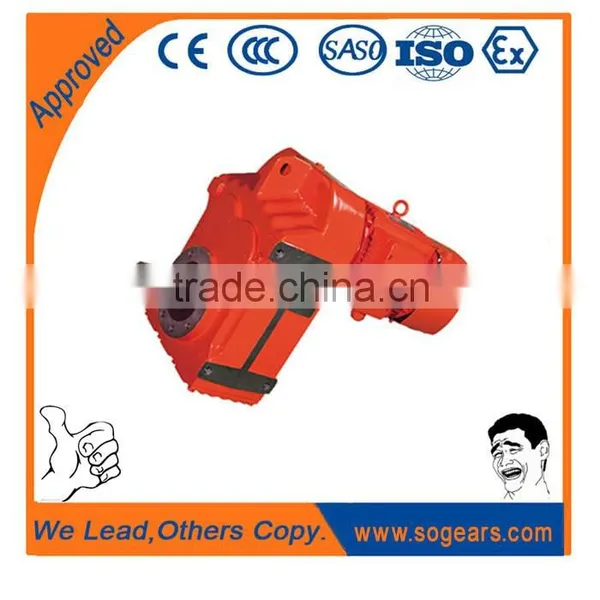

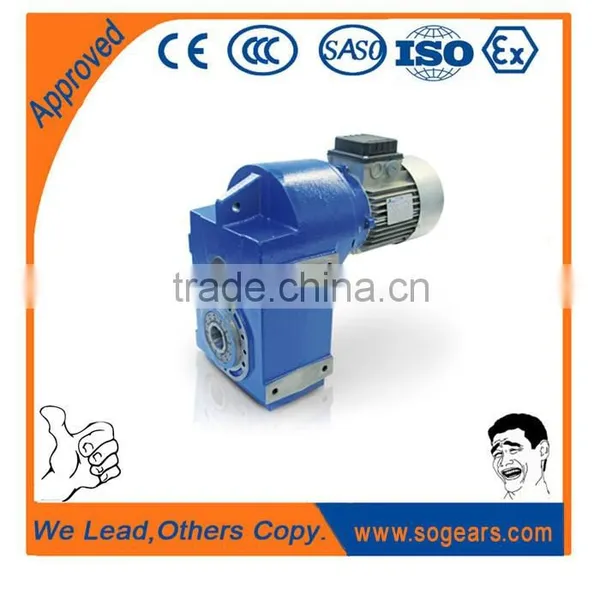

Good quality helical inline gearbox with electric motor

helical inline gearbox with electric motor

@Gearheads Options

Horizontal type with foot or Vertical type.

Input flange to couple the electromotor, direct coupled.

Solid axis with key or multiple spline or flange mounted with screw holes

@Electric motors options

Asynchronous AC-motors, Three&Single phase, DC-motors, hydraulic motor.

Variable frequency, brake, adjustable-speed, Explosion-Proof etc.

Protective insulation class IP54 IP65 IP44 etc.

Energy efficiency grades High, middle and low.

@gearbox with electric motor Features

Paint Color: Various
Cooling System: Fan cooler
Noise Level: Low type 65-75 Db, Smooth and stable in run
Seals: Nitrile material, dual lipped, double output seals available
Transmission efficiency: the efficiency of single machine is not less than 95%.
Material: Rugged cast iron or ductile housings, hard shafts and gears HRC58-62
Output way:Hollow shaft with keyed connection, shrink disk, splined ,solid shaft etc.
Bearing: China standard. But SKF, FAG, NSK, TIMKEN, NTN, KOYO, C&U is a aviable if need

@helical inline gearbox Application

Our this gear motor is same as SEW R mounting inline gear motor and has a good performance for torque transfer. The diameter of the shaft and the out dimension is same too. Also it is China standard. As to the packing, we use plywood case which bears strong crash when shipping. This in-line helical gear motor is using helical gear and torque efficiency is 95% almost. Out speed of this motor reducer is various. This will be chosen by the detailed parameters.
