Insulating Piercing Connector IPC Cable Clamp, Clamp Connector Wire Connector

Name: Insulating Piercing Connector IPC Cable Clamp, Clamp Connector Wire Connector
Brand: YIKA
Availability: InStock

FOB Price

USD $2 - $10 / Piece

10 Pieces(Min.Order)

Supply Ability 1000000 Piece / Pieces per Month
Port NINGBO SHANGHAI
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin:

Zhejiang, China

Brand Name:

YIKA

Model Number:

JJC-4

Packaging Details

40PCS/CTN

Product Description

Insulating Piercing Connector IPC Cable Clamp,

Clamp Connector Wire Connector

Specifications

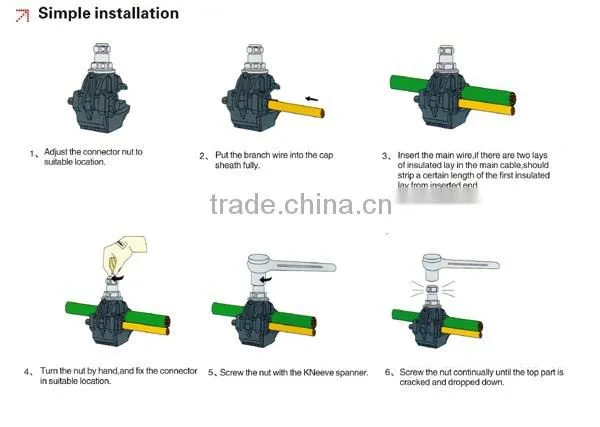

1) Insulating Piercing connector, simple installation, no need strip the cable coat.

2) Moment nut, piercing pressure is constant, keep good electric connection and make no damage to lead.

3) Self-seam frame, wetproof, waterproof, and anti-corrosion, extend the using life of insulated lead and connector.

4) Adopted special connection tablet, apply to joint of Cu (Al) and Cu(Al) or Cu and Al.

5) Small electric connecting resistance, connecting resistance less than 1.1 times of the resistance of branch conductor with the same length.

6) Special insulated case body, resistance to illumination and environmental aging, the insulation strength can up to 12KV.

7) Arc surface design, apply to connection with the same (different) diamater, wide connection scope (0.75mm² – 400mm²)

Type	Equivalent type	Main line section area (mm²)	Branch Line section area (mm²)	nominal current	Outline size	weight (g)	piercing depth (mm)
KN2-150	JJC-4	50-150	6-35(50)	157	455287	162	1.5-2.5
