dvb-s2 to ip mpts headend(DisEqc/22KHz,8*DVB-S2 in,IP/UDP(8 MPTS multicast) Gigabit out)

Name: dvb-s2 to ip mpts headend(DisEqc/22KHz,8*DVB-S2 in,IP/UDP(8 MPTS multicast) Gigabit out)
Brand: SoChuang
Availability: InStock

FOB Price

USD $1 - $820 / Set

1 Set(Min.Order)

Supply Ability 6401 Set / Sets per Month
Port ddc
Payment Terms:Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Place of Origin:

Sichuan, China

Brand Name:

SoChuang

Model Number:

SC2125

Product Description

dvb-s2 to ip mpts headend(DisEqc/22KHz,8*DVB-S2 in,IP/UDP(8 MPTS multicast) Gigabit out)
DVB-S/S2*8-8MPTS IP Gateway
in:8*DVB-S2 RF
out:ts over ip/udp,iptv

dvb-s2 to ip

dvb-s2 to ip headend

dvb-s2 to ip qam modulator

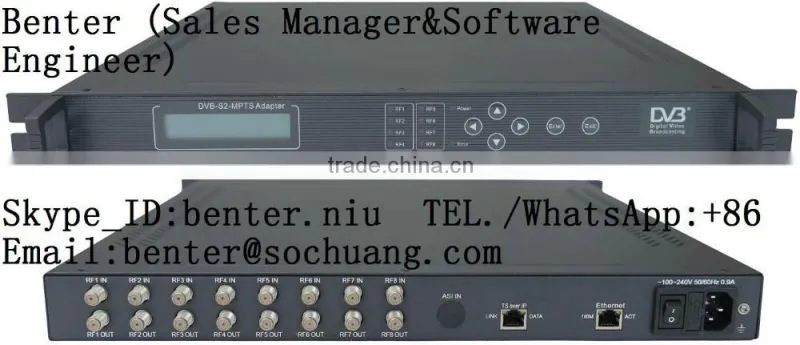

8*DVB-S/S2 to 8*MPTS IP Gateway

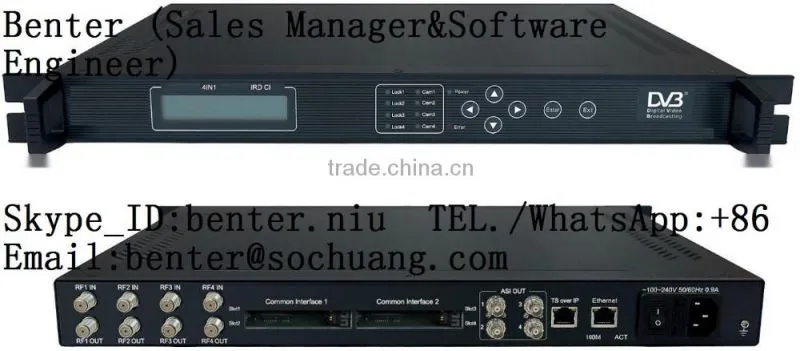

5217	4in1 DVB-S/S2 MPTS CI IRD(4 DVB-S/S2 RF in,4CI,4 ASI+IP/4MPTS*multicast out)

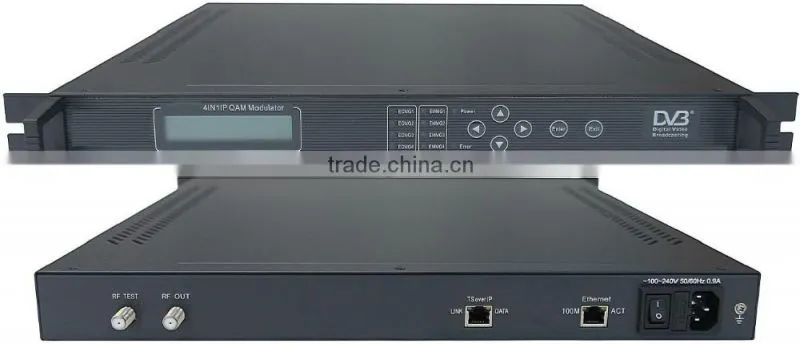

4154	IP QAM Modulator with Multiplexer Scrambler(TS IP/multicast gigabit in,4*DVB-C RF out)

Overview

8*DVB-S/S2 to 8*MPTS IP Gateway can receive 8×DVB-S/S2 signal (RF) transponders and output 8×MPTS/Multicast IP transport stream (TS over UDP). It suits 1U rack and provides front panel LCD operation and NMS (Network Management Software) controlling, and is mainly applied to IP QAM(DVB-C)/Transcoder system.

Technical Specification

Input	8×RF	DVB-S/S2, QPSK/8PSK, F-head
	Frequency	950MHz~2150MHz
	Symbol Rate	1~45 Mbaud/s
Output	1000BASE-T/gigabit IP port, 8×MPTS/Multicast TS over IP/UDP
Control	IP remote	NMS (Ethernet Port, RJ-45) , 10/100m base-TX,
Control	Front panel	Keyboard + LCD
General Features	Size	482mm×410mm×44mm
	Temperature	0~45°C(Operation); -20~80°C(Storage)
	Power	100-240VAC (±10%), 50/60Hz, 25W

Order Guide

2125	8×DVB-S/QPSK/S2 /8PSK in, 8×MPTS UDP/Multicast/Gigabit out
2135	8×DVB-S/QPSK/S2 /8PSK in, 64×SPTS/IP/UDP/Multicast/Gigabit out
5256	DVB-S2 CI IP IRD(DVB-S/S2+ASI in,ASI+IP(8SPTS(multicast)/1MPTS) out)

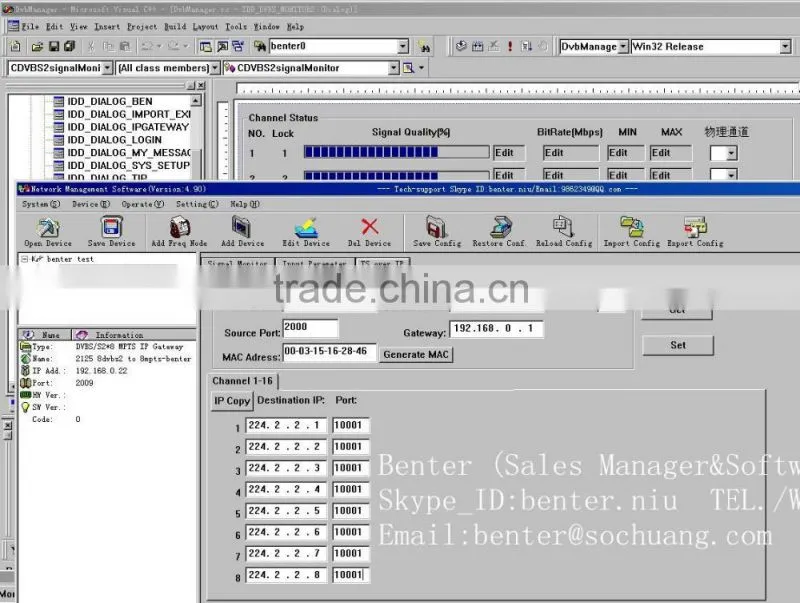

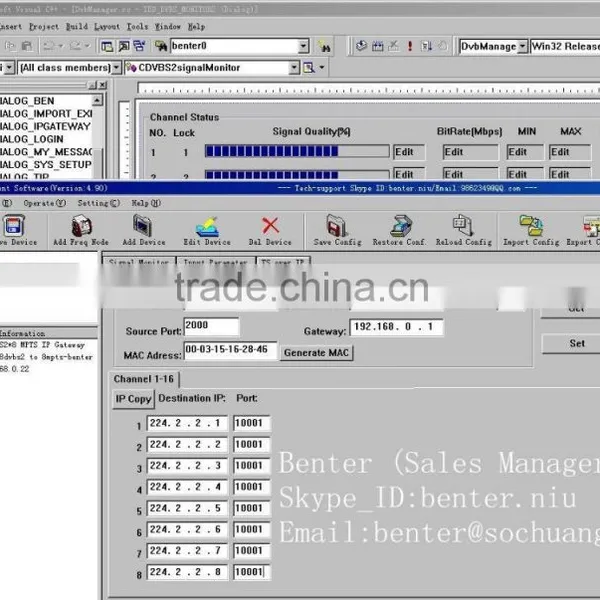

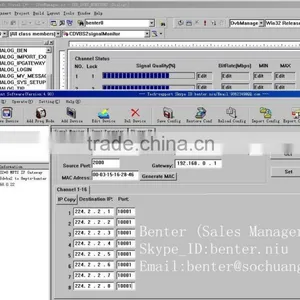

Network management software

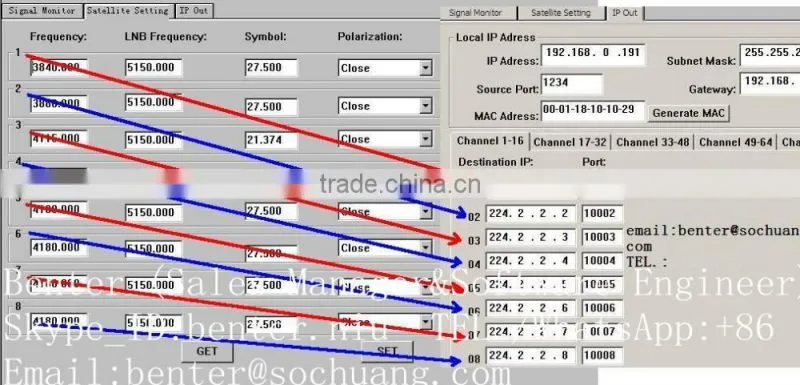

dvb-s/s2 input parameters setting:

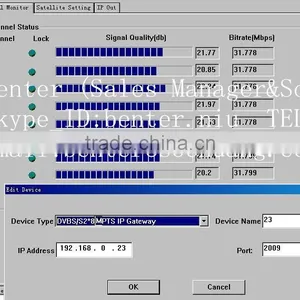

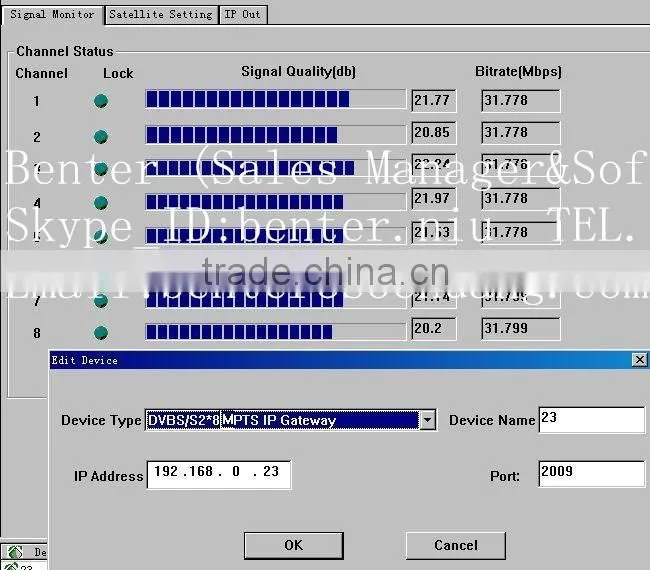

dvb-s/s2 signal monitor:

IP MPTS output setting:

Assembling :

Packing:

Stocking:

Company information:

Certificate&Exhibition:
