DVB-S2 to DVB-C Modulator/ Receiver Multiplexer Scrambler Modulator

DVB-S2 to DVB-C Receiver Multiplexer Scrambler Modulator

Overview

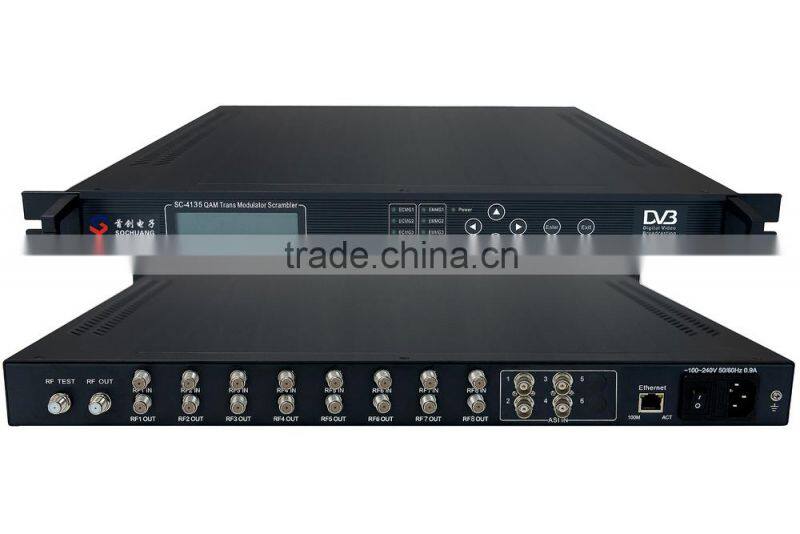

SC-4135 8×DVB-S2 to 4×QAM Trans-modulator support 8×DVB-S/S2 (QPSK/8PSK) transponders and 4×ASI input, then multiplex and scramble the input signal to output selected programs through 4×QAM RF channels. It provides a cost-effective and stable solution for TV operators to re-distribute programs via HFC network. It suits 1U rack and can be configured by front panel LCD and NMS (network management software). Its high-integrated and cost-effective design makes it widely used in varieties of digital broadcasting distribution systems.

Features

u  8×DVB-S/S2 RF and 4×ASI input

u  Input frequency: 950~2150 MHz

u  Input symbol rate: 1~45 Msps

u  4×QAM RF output

u  Output frequency: 47~870 MHz

u  Output symbol rate: 5~9 Msps

u  Support 4×CAS/SMS

u  LCD/Keyboard control by front panel and network management by Ethernet

Technical Specification

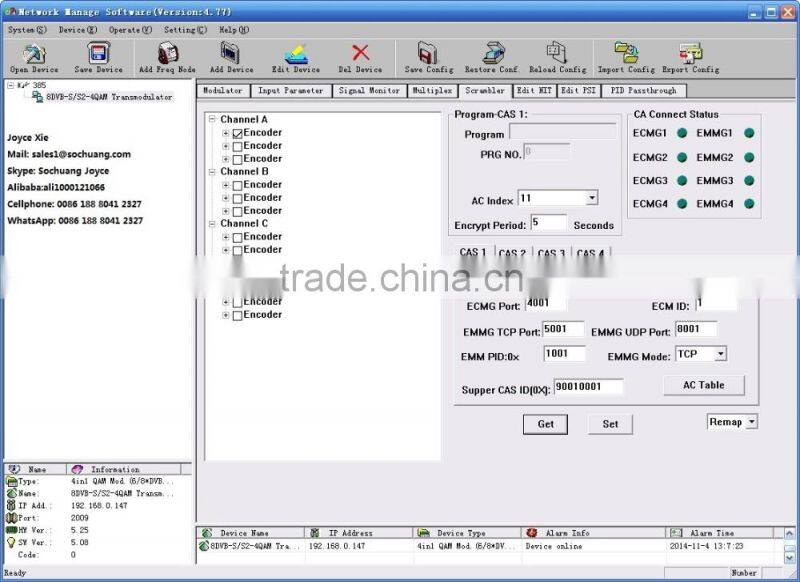

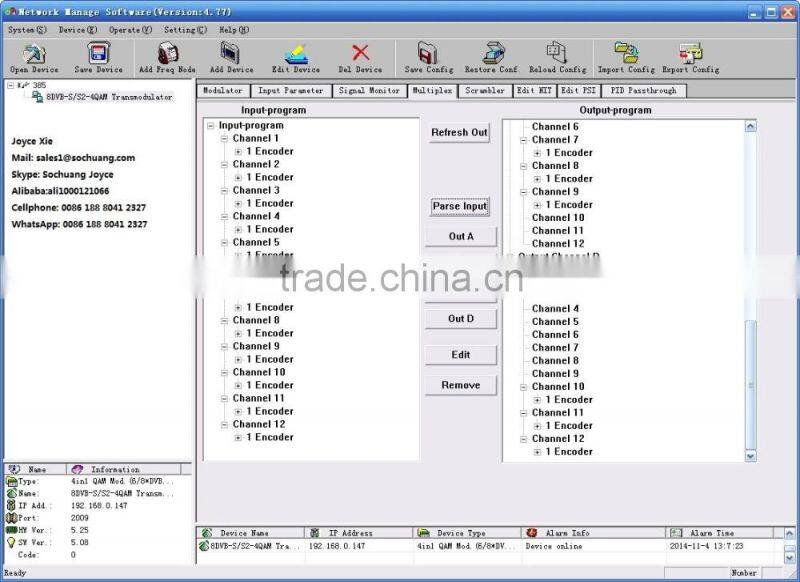

Network Management Software
