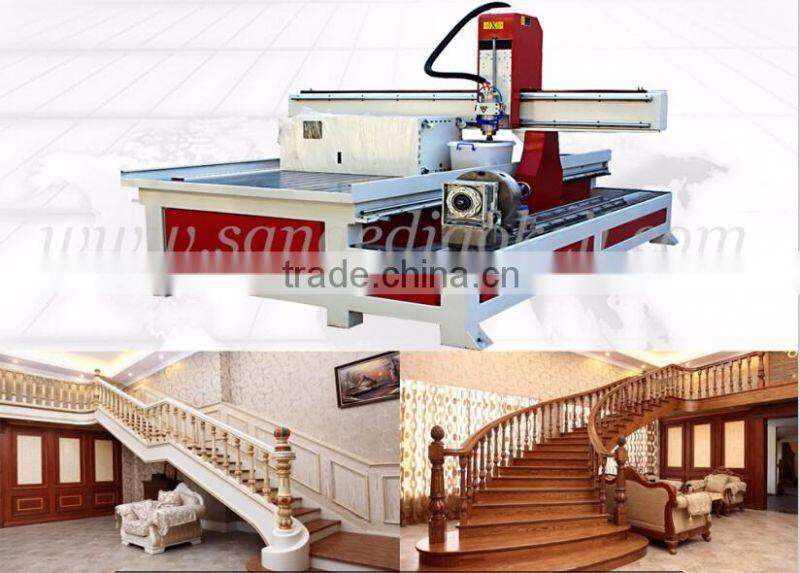

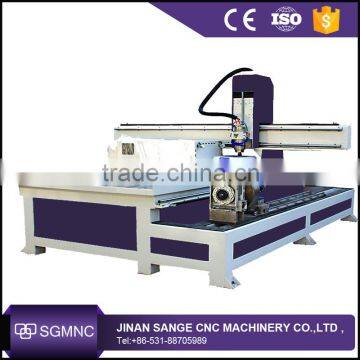

woodworking cnc router engraver/cnc router with rotary attachment
1. Wood processing: processing density board, stiletto for surfing board, processing of marbles, cabinet and furniture.
2. Advertisement:engraving and cutting of various labels and number plate, marble, etc for artistic effects on materials including marble, brass, steel, and other metallic material.
3. Crafts: engraving characters of any language and patterns on gifts and souvenirs, primitive processing and shaping of artistic crafts, and stiletto.
4. Molding: engraving delicate letter and flower pattern, primitive and fine processing of the small mould.
5. Architectural models: engraving fine window, fencing and wall patterns, etc.
6. Seal: engraving seals and medal on materials such as buffalo horn, wood etc.
7. Label: engraving character, number, and other pattern on label for products and on product directly.
1: The whole thick square welded tube frame with high- temperature artificial aging treatment to ensure strong , durable , without any deformation .
2: Y axis is adopted two-motor drives and high-precision gears , rack drive to ensure high power , smooth operation .
3: Powerful dust collector to ensure the processing dust-proof
4: Super vacuum adsorption system to ensure efficiency in processing .
5: Just a touch of the automatic lubrication system. Easy to complete regular maintenance .
6: The highest speed , the idling speed is up to 42m/min or more , in the production of wave plate engraving is up to 20 meters above
Machine body | Whole weld steel tube |
Working area | 1300mm*2500mm*200mm |
Spindle Power | 3.7 kw water-cooling spindles |
Spindle Rotating speed | 0-24000rpm/min |
Guideway | X,Y,Z Linear guide CSK |
Drive mode | Rack driving |
Max. Feeding height | 200mm |
Max. Speed | 34000mm/min |
Working speed | 0-20000mm/min |
Mechanical precision | 0.01mm |
Software | type 3 software, Artcut software, Artcam software |
Control system | Ncstudio/DSP |
Table structure | Vacuum and T-Slot/Aluminum table |
Work voltage | AC220V/380V/50HZ |
1) Guarantee for 12 months exluding comsumable parts .Extra fee is paid if out of date. Any damage to the machine caused by improper use will be charged.
2)when receiving the your money, we will prepare machine for you,it will spend 2-3days, to get the shipping pictures for you.
3)24-hour technical support Internet or by Telephone, free instructions and Problem solving.
4)Free installation and fully test before sending and free training for operators
