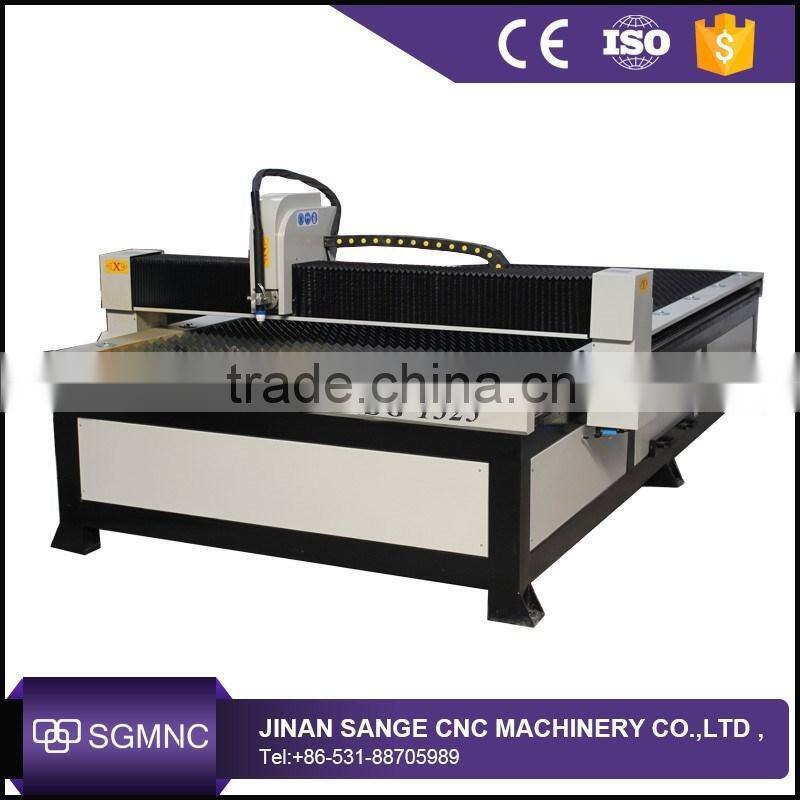

1325 cheap THC metal steel cutting plasma cutting machine price
1.Machine Features
1.The beam uses light structural design,with good rigidity structure, light deadweight .
2.The gantry structure, Y axis used dual-motor dual-driven system,X,Y,Z axis all use dual-straight rail that make the machine driving smoothly with high-precision.
3.Aiming at cutting three dimension LED character, trough metal panels and floor cutting, the accuracy can reach good indicators.If it equipped with United States HYPERTHERM plasma source the machine can reach threshold.
4.Equipped with other advertise equipment (blister/engraving machine) .Improve the efficiency of several times
5.Cutting mouth is small, tidy,and avoid a second dressing processing.
6.It can apply to iron sheet, the aluminium sheet, the galvanized sheet, hundred steel plates , metal plates.
7.The numerical control system disposes high, the automatic striking arc, the performance is stable.
8.Support Wentai, Astronautics Haire, ARTCAM softwares, Type3 produce standard G code way document,also can change software to read AUTOCAD softwares produce DXF form documents.
2.Technical Parameters
Description | SG-1325 |
Working size | 1300*2500 |
Working material | Steel,aluminum,stainless steel |
Z axis clearance | 100mm |
Working material thickness | 0.5-30mm |
Plasma Power | HUAYUAN,Cut Master,Hyper Therm |
Input current | 60A,80A,100A,120A, etc |
Plasma Cutting accuracy | +0.5mm |
Repeatability | 0.05mm |
Cutting speed | 0-8m/min |
Input voltage | 380V 3Ph or 220V,3Ph (Customized for you) |
Transmission | Rack pinion |
Driving system | Stepper system |
Power frequency | 50HZ |
File transmission | USB (interface) |
Working Mode | Untouched arc striking |
Cooling method | With water pump and tank provide circulating water cooling |
Rail guide | Precision square rail |
Transmit way | Taiwan imported ball screw |
Command | G code, *plt |
Table type | Teeth and water table |
Loading weight | 1200KGS |
3.Applicable Industries
Processing shells of machinery and electronic products, advertising signs, crafts, iron garden, car manufacture, boat building, electrical accessories, board cutting.

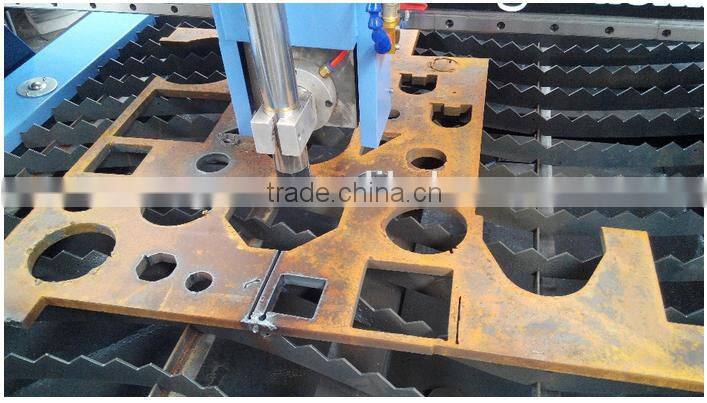

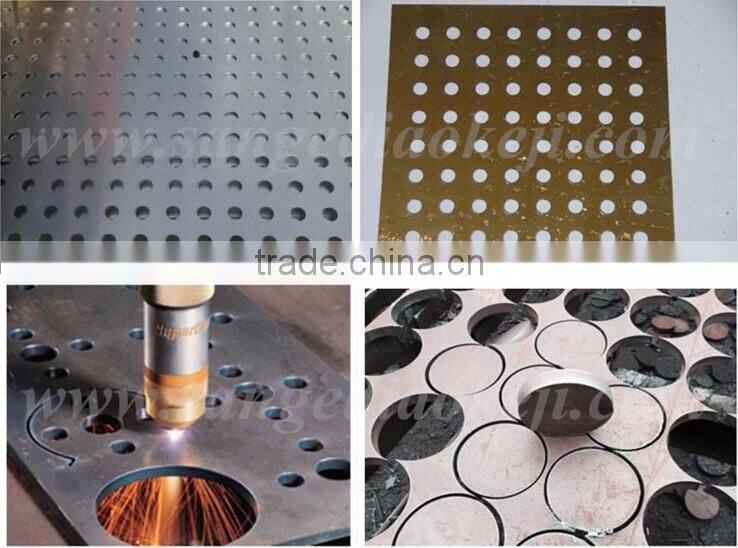

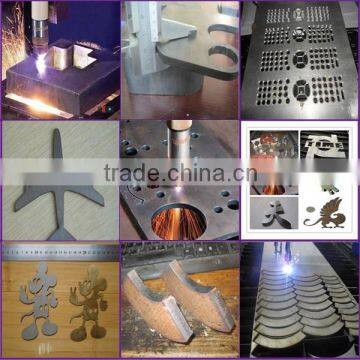

4.Sample
5.Data
