CE Semi Automatic 3 Ply Corrugated Box Flute Lamination Machine

CE Semi Automatic 3 Ply Corrugated Box Flute Lamination Machine photo-1
US$ 22,000 - 28,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Packaging Type:
Case, Other, Case, pallet
Packaging Material:
Plastic, Metal, Wood
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Packaging Type Case, Other, Case, pallet
Packaging Material Plastic, Metal, Wood
Automatic Grade Semi-Automatic
Driven Type Electric
Voltage 380V
Power 50HZ
Place of Origin Shandong, China
Brand Name G&Z
Model Number FMB1000,1300,1450,1650
Weight 3200kg
Certification ISO,CE
After-sales Service Provided Engineers available to service machinery overseas

Specifications

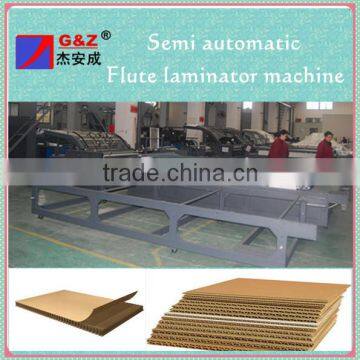

CE semi automatic 3 ply corrugated box flute lamination machine 1.manual top sheet is fed
2.automatic glue supply

 CE semi automatic 3 ply corrugated box flute lamination machine       G&Z COMPANY
CE semi automatic 3 ply corrugated box flute lamination machine
 Company


G&Z group is one of the leading manufacturers and suppliers in carton box making fields, organizing high quality machinery, materials, spares, technology support, etc. from China for overseas printing/packing companies and partners.

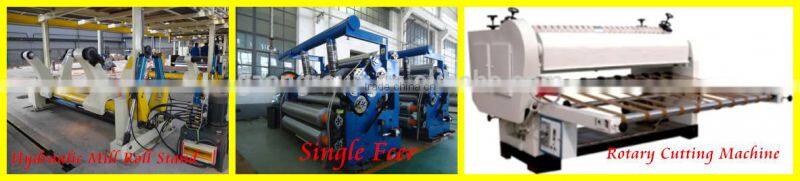

Main products our group manufactures and supplies include semiautomatic and automatic laminators, semiautomatic and automatic die cutters, corrugation paperboard production lines, single facers, printer slotter and die cutters, automatic folder gluer, automatic stitching machines, starch glue powder, flat stitching wires, papers, etc.



Till now, we are cooperating with overseas customers from over twenty countries. And our products have earned good reputation from our customers.



Our goal: try our best to meet the requirements of the printing / packaging companies, bring them much more benefits and reduce their running cost, offer them the optimal solutions in the form of machines, materials, services, etc.

 CE semi automatic 3 ply corrugated box flute lamination machine


G&Z group is one of leading manufacturers specialized in laminating machines in China, our laminating machines are suitable for the color printed top sheet and corrugated paperboard, and have been installed all of the world, besides of the top machines' quality, we also have earned good reputation on our aftersales services.

 Features


1) FMB Series semiautomatic flute laminator uses vacuum sucking paper conveying type for the bottom paper, and top sheet is fed manually. This type of design is labor effective with low purchasing and production cost, easy operation and maintenance.

2) The glue apply roller is stainless steel material which can prolong the life of the machine.

3) Balance-tested roller and precise assembly make the machine much more stable.

4) The machine adopts automatic glue supply and recyclable glue circulating system.

5) Top or bottom detectors are adopted to control the running of the machine. The electric components are worldwide famous brands.

6. The bottom sheet for this machine can be A, B, C, D, E, F flute board. The range of top sheet can be 150-600gsm cardboard.

The details of our FMB series semiautomatic paperboard laminating machines are as follows:

 Specifications

ModelUnitFMB-1000FMB-1300FMB-1450FMB-1650
Face Paperboard gsm

 +200

 +200 +200 +200
  Bottom Paper gsmA, B, C, D, E, F Flute board, or above 350gsm cardboard
  Maximum Paper Size(WxL) mm 1000*1100 1300*1100 1450*1100 1650*1300


Minimum Paper Size(WxL)



mm  320*450 320*450320*450320*450
  Speed m/min 0-900-90 0-90 0-90
  Total Power kw 7 7
  Total Weight kg 29003200 3800 4500



CE semi automatic 3 ply corrugated box flute lamination machine
 CE semi automatic 3 ply corrugated box flute lamination machine
 CE semi automatic 3 ply corrugated box flute lamination machine
 CE semi automatic 3 ply corrugated box flute lamination machine
 Main products

CE semi automatic 3 ply corrugated box flute lamination machine

CE semi automatic 3 ply corrugated box flute lamination machine

CE semi automatic 3 ply corrugated box flute lamination machine

CE semi automatic 3 ply corrugated box flute lamination machine

CE semi automatic 3 ply corrugated box flute lamination machine

 Where we are
 CE semi automatic 3 ply corrugated box flute lamination machine
