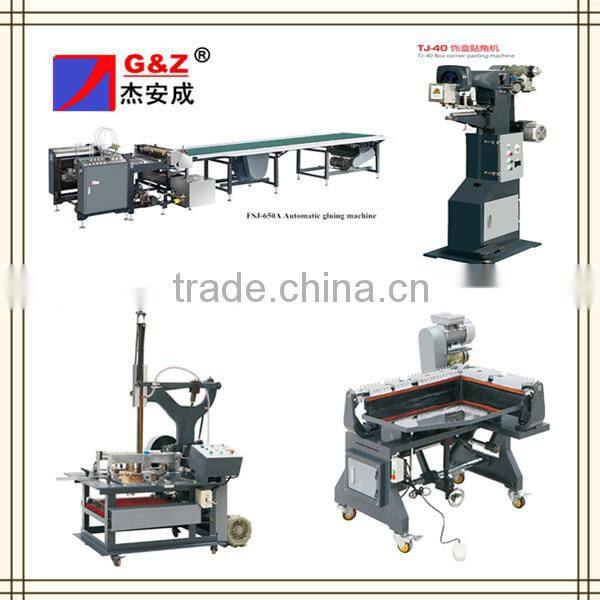

Semi automatic rigid box making machine

Specifications

Semi automatic rigid box making machine
1.CE,ISO
2.good reputation
3.semi automatic series
petitive price

                     G&Z Group





Semi automatic rigid box making machine











Introduction

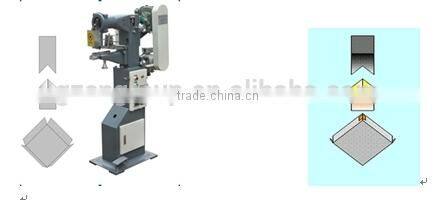

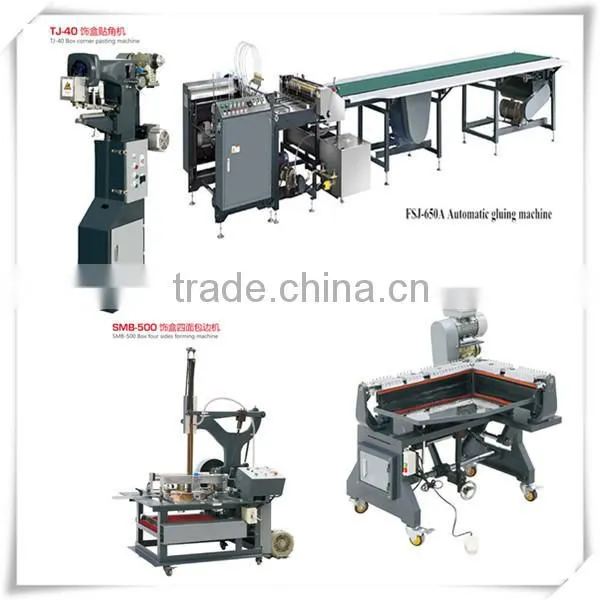

TJ-40 Corner Pasting Machine is designed for the positioning and forming of rigid set up boxes and paper boxes by the application of high temperature tape belts. Thae machine is controlled by Pedal device. The core electric appliances are from Taiwan. After pasting, the products are upright in corners, firm, good-looking. They are indispensable superior machine for box making .The standard length of the tape is 1-3mm, and the machine can be remolded to 4 mm



TJ-40A use 2cm width of the tape ,the lenth of the tape can be adjusted from 1-3cm

TJ-40B use 2cm width of the tape, the lenth of the tape can be adjusted from 1-6cm



Technical parameters



Model	TJ-40
Min.Case Size	40x40x10mm
Speed	20-40pcs/min
Power Requirement	AC220V
Power	0.4KW
Net Weight	170kg
Machine Dimension	800x500x1400mm



Packaging



Wooden case



Tape used





Standard tape. 2cm of width, 300 mm length per roll , 24 rolls per carton. It can be used for TJ-40A and TJ-40B machine.

TJ-40A the width of the tape is 2cm,the lenth of the tape can be adjusted from 1-3mm

TJ-40B the width of the tape is 2cm,the lenth of the tape can be adjusted from 1-6mm



FSJ-650A automatic gluing machine

Introduction

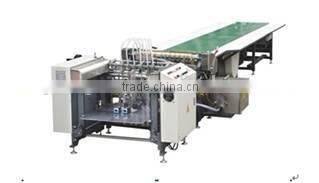

FSJ-650A Automatic gluing machine (feeder) has the function of automatic feed paper and gluing, automatic temperature control and 24-hours timer. The suction devices for the assembly lines prevent powder paper curling and bubbling. Fedia paper absorption and feed are applied, characteristic of steady and quick paper conveyance. Hot melt adhesives (animal adhesives) are used for health and environmental protection on the basis of recycling to save costs at the speeds adjustable. Remodel for White glue.



Technical parameter



Model	FSJ-650A
Face Paper width	W80-600mm
Sheet Thickness	80-200g
Speed	7-40pcs/min
Power Requirement	380V
Power	7.45KW
Net Weight	1100kg
Machine Dimension	6350x1650x1100mm



SMB-500 box wrapping machine



Introduction



SMB-500 Box Wrapping Machine are mainly used for paper mounting and pasting of rigid set up boxes , paper boxes, gift boxes, jewellery boxes, etc. They are equipped with imported vacuum pumps, automatic devices. Brushes are used to paste the edge paper into the inner boxes in a smooth and quick process, solving the problem of difficulty and slowness in manual mounting and pasting. They are innovative products for box making.



Technical parameter

Model	SMB-500
Case Size <Min.>	100x80x15mm
Case Size<Max.>	360x500x80mm
Speed	20-30pcs/min
Power Requirement	AC220V
Power	1.9KW
Net Weight	520kg
Machine Dimension	1450x1100x3650mm



SZR-520 box folding-in machine







Introductions



SZR-520 Box Folding-in Machine is folding and forming machines for rigid set up box, paper boxes. Pressure nozzles are used to bend the extruding parts of the surface paper into the boxes. These machines are equipped with devices such as pedal switches and magic eye switches, capable of adjusting the length and height of pressure nozzles according to the size of the boxes, and these machines function as quick speeds, high product quality and simple and quick operation, etc.



Technical parameters

Model	SZR-520
Box max. size	520x420x150mm
Speed	20-30pcs/min
Power Requirement	AC220V
Power	0.4KW
Net Weight	240kg
Machine Dimension	1000x700x1000mm

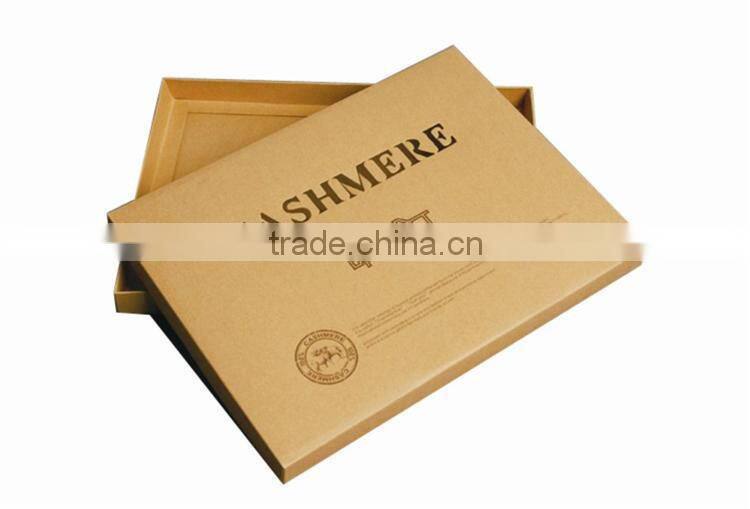

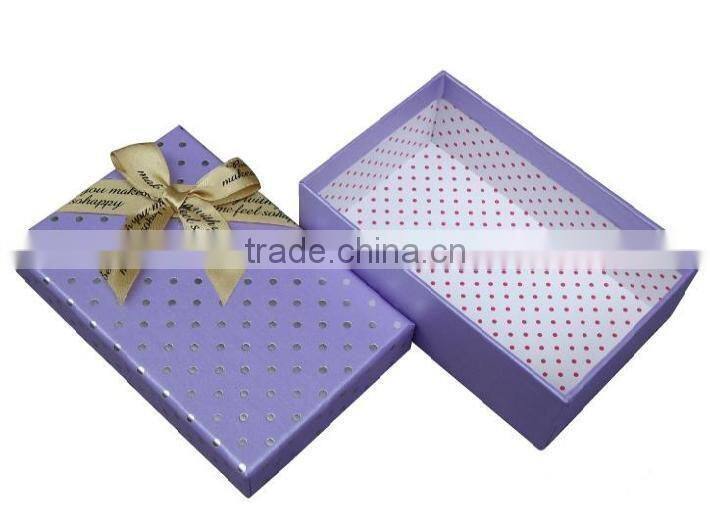

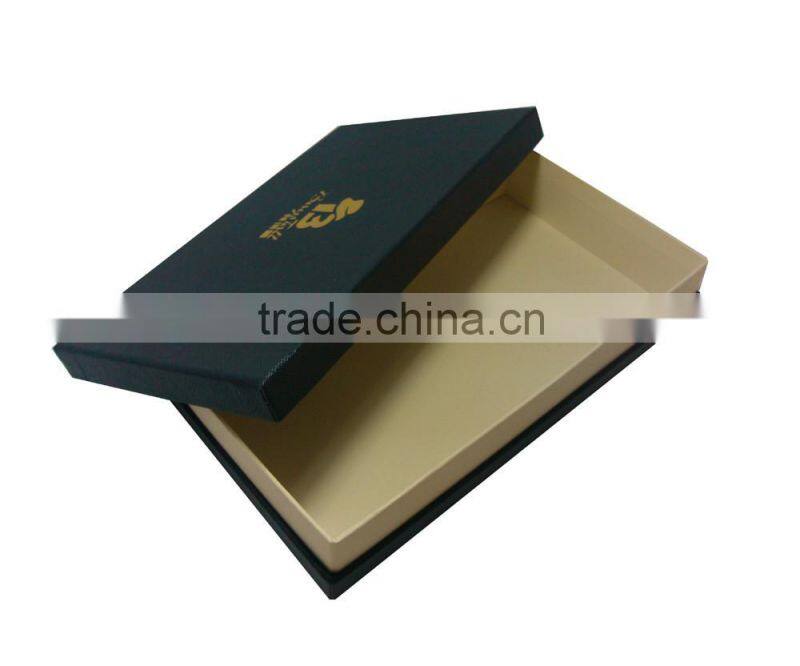

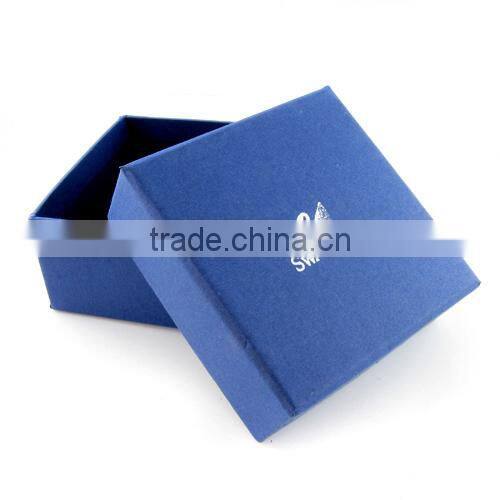

Box sample

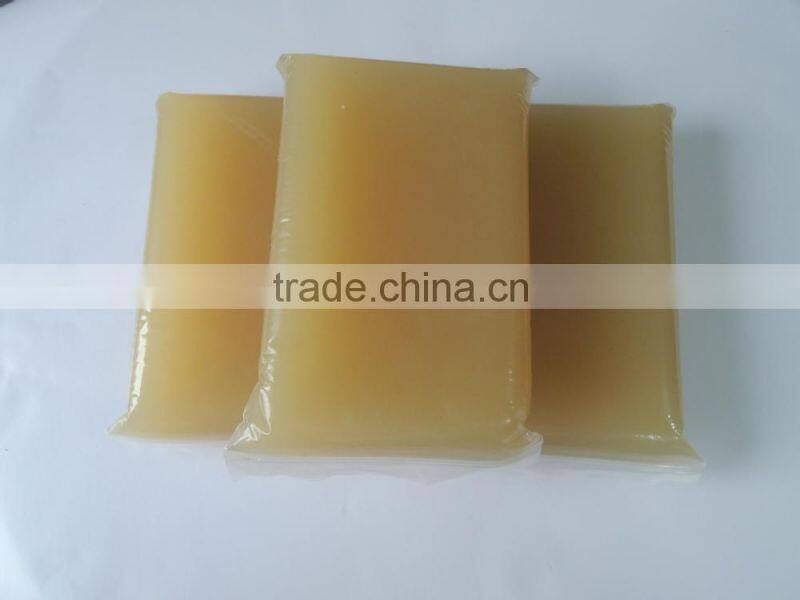

Raw meterial needed

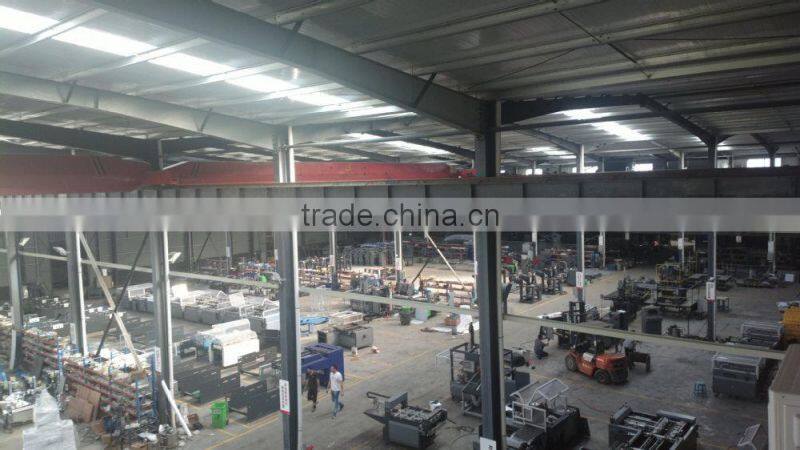

Workshop
