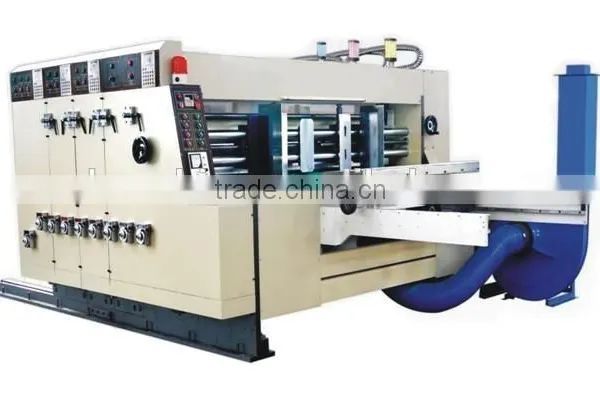

[RD-BW910-2400-2] Automatic high speed 2 color corrugated carton printer slotter and die cutting machine

Specifications

- Automatic printing and slotting machine
- High quality & best service
- Competitive price
- Easy operation & maintenance



Specifications:



S/N	Parameter	Unit	Model
			RD-B910-2000-5	RD-BW910-2200-	RD-BW910-2400-4
1	Machine inner width	mm	2000	2200	2400
2	Max. paper size	mm	910*1800	910*2000	910*2200
3	Min. paper size	mm	280*650	280*650	280*650
4	Max. printing size	mm	810*1600	810*1800	810*2000
5	Carboard thickness	mm	2~11	2~11	2~11
6	Printing plate thickness	mm	6	6	6
7	Dia. of printing roller	mm	Φ290	Φ290	Φ290
8	Max. design speed	pcs/min	160	160	160
9	Topping precision	mm	±0.5	±0.5	±0.5
10	Slotting precision	mm	±1.5	±1.5	±1.5
11	Power	kw	28	30	32
12	Weight	T	24	25	26
13	Overall dimension(L*W*H)	mm	5700*2600*1900	5700*2800*1900	5700*3000*1900



Features:

• 4 color of automatic high speed lead edge feeding corrugated carton flexo printing and slotting machine.
• High standard design,reliable fuction,humanity operation can accomplish setting,revision,implement in short time,with accurate digital display.
• Adopting advanced vacuum absorbing lead edge feeding system,operate easily and high accuracy.
• Self-locking device:During working,the machine is locked up.Otherwise,it can not be lunched,which ensure the security in working time.
• Suitable for 3/5/7ply corrugated paperboard.
• The machine is controlled by computerized system(CNC) and PLC, it's very convenient to control the printing units and adjust the slotting phase. with the characteristics of order storage ,quick order changing.
• Equipped with digital touch screen to display the machine running situation and have the features of whole machine zero reset, preset function, printing phase zero reset and adjustment.
• The machine adopts suction lead edge feeding with roller-type whole adsorption, which has high speed and precision.
• All the transmission gears use high quality steel after high-frequency quenching and grinding in accordance with national standard.
• All the transmission rolls are made of high quality steel with the chrome plated and grinding surface.
• Motorized detachment and combination, pneumatic locking and loosening of each unit, along with alarm ring and light when the machine unit moving to improve the operation safety.
• Different alarm ring will along with the machine launching and stopping.
• The machine is launched by pressing the start button with two hands, which ensure the operator's safety.
• Each unit equips with emergency stop button.
• There are different color of LED light to indicate the machine working situation.
• Electrical components, transmission bearings and gears, pneumatic control components etc. are all in accordance with the national standard.
• Creaser linked with slotter for adjustment,saving time to change order.
• Equipped with automatic lubrication system.



Lead edge feeding unit:



Automatic suction lead edge feeder equipped with a 7.5kw suction fan to feeding cardboard, the suction is adjustable by the transducer according to the crook degree of cardboard in order to transmit smoothly.Easy operation and high accuracy.

The main control pannel is composed of control buttons and touch screen, which is very convenient and reliable.

The side plate is electrical adjusted automatically while the backstop is adjusted manually.

Sheet cleaner is equipped to remove the contaminants on the cardboard which will improves the printing quality.

The upper transmission roll is made of seamless steel tube, the surface is covered wearproof rubber, which is also good at avoiding crushing the cardboard.

The lower transmission roll is made of seamless steel tube, with the treatment of grinding, embossing, and chrome plated.

The transmission between the upper and lower transmission roll is driven by double slider coupling, which is good at reducing wear down and transmitting smoothly.

The transmission shaft equipped with electromagnetic friction clutch, for avoiding damaging the motor in case of misoperation or overload.

Automatic counter for recording the cardboard supply quantity to show the output.



Printing unit:



• All the rolls and shafts are made of high quality steel, with the treatment of dynamic balance correction, grinding and chrome plated.
• The printing phase position is and horizontal movement controlled automatically by touch screen with digital display, the phase position could be adjusted CW or CCW easily with 360 degree because of the equipping of PLC and planetary gearing  mechanism.
• Equipped with ink quantity monitoring system, the machine will alarm when out of ink, and stop feeding cardboard.
• The printing plate is hanged by the hanging plate device, the printing roll is able to clockwise rotate and counter clockwise rotate which controlled by the foot switch, it's very convenient for installation and dismounting of printing plate.
• Manual gap adjustment via worm reducer with graduated dial indication such as gap between rubber roll and anilox roll, gap between anilox roll and printing roll etc.
• Equipped with electromagnetic clutch break system to fix the printing phase, when separate the printing unit for adjusting the printing phase, the break system will prevent the gear move, keep the original position.
• Phase clear memory and reset after printing plate cleaning.
• The distributing rubber roll is covered by wear proof rubber, it's good at ink transmission.
• Steel anilox roll with the treatment of grinding, pressing overlapping curve and chrome plated.



Slotting unit:





• All the carton size, slotting phase position is set and adjusted automatically by touch screen with digital display, the phase position could be adjusted CW or CCW easily with 360 degree because of the equipping of PLC and planetary gearing mechanism.
• Double slotting configuration, after pressing of prepressing wheel and pressing wheel, the carton box will reach better forming effect.
• Precision linear guide horizontal displacement systems is equipped with slotting unit, the slotting knife seat, pressing wheel, trimming knife will moving precisely.
• The slotting knives are made of high quality alloy steel, with heat treatment and grinding which ensure a long life.
• Manual gap adjustment of prepressing wheel, pressing wheel, slotting knife seat.
• Punching hole device is optional.
