rf card lock for resorts supplier since 2001

Specifications

1.rf card lock for resorts
2. Make of copper
3. CE/RoHS/FCC
4. Security and safe
5. Low price



Description of electric panel door lock 8900RFG

1.Absolute brass moded lock, maitain the brass color, anti-oxidation and anti-cautery, makes the lock look new all the time.



2.Parameter of electric panel door lock 8900RFG

Item No.: 8900RFG
name	Contactless electronic hotel lock
color	Golden
panel material	Copper
card type	Rf card/Mifare-1 card(for one card system)
mortise type	European standard mortise A or American standard ANSI mortise C
door thickness	35mm-55mm
standard	European standard or ANSI
certificate	CE,RoHS,FCC

Our Value

Dissociative structure:

The Handle will turn dissociative when the door is locked,  decrease the damage to the lock casued by outside force.



Stainless steel axis part:

The key part axis will take over all force when open the door, so the stainless steel material enable it can be used for more than 1 million times.

Localizer:

A molded type of localize, makes the lock core work stable and steadily.

PC control panel:

1.Adopt chips from brands like Philips, Atmel, make sure the lock save energy and durable.

2.Researched by Onlense to maintain stable system update, namely further tech-development possibility for users.

3.The sealed process enable the preventions from mould, bacteria and moisture to ensure stable performance.

Onlense System

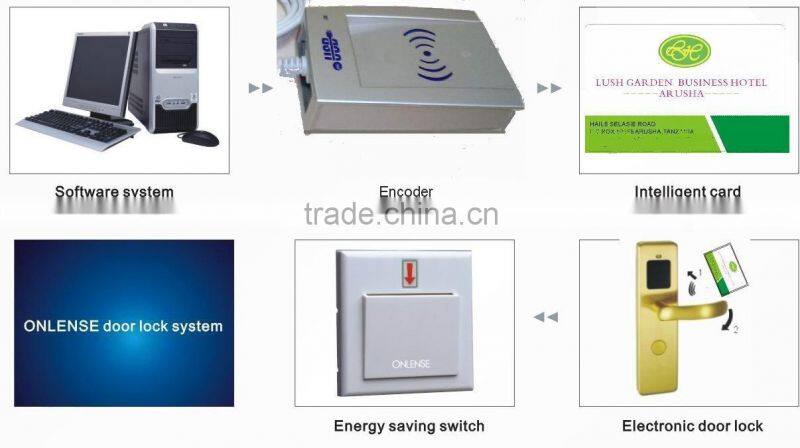

System factors: Door lock, intelligent card, computer, management software, encoder, energy saving switch.

Main Functions: Use the computer and the software to issue cards of different rank and purview, to actualize ranking management.



How to use electric panel door lock software system:

1.install software to computer

2. connect encoder to computer USB port

3.use encoder to issue different kinds of card,eg. guest card,master card,loss card etc, to execute rank management.

also can get open lock record, you can see when did someone open the lock? And who? at what time?



Basic Technical Function Index of electric panel door lock :

Electric panel door lock index:

Power Supply:	DC6V,use of 4pcs of AA batteries.
Supply Voltage:	DC4.5v-6.5v, normal status, blue light flash and sound once; when the voltage is below DV4.5v,  the red light flash after the blue light flash, sound twice,   in this situation, the lock can be used about 200 times.
Static Power Supply:	<10 u A.
Dynamic Power Suppy:	<150m A
Inductive Distance:	10-30mm
Open time:	It will automatically lock inside after open it once, or lock again if the door is not opened in 3 seconds.
Lifetime of battery:	Under normal situation, the lock can keep working last 1 year, be open more than 20000 times
Record inside the lock:	1000 records for standard type|(include open by mechanical key)
Setting Requirement:	Working temperature: 0'C-70'C, humidity:15-92%max.

Mifare-1 card index in electric panel door lock system:

Tech spec:	PHILIPS Mifare-1 card, accord the ISO14443 standard.
Craft:	The electronic module and induction coil are inserted into the PVC.
Card reading:	Close to the inductive area.
Card capacity:	S50 card with 8 k bits, 16 sectors with 48bytes each.
System logic:	Anti-conflict and allow multi-card oerpation.
Read-write features:	Readable, over-writable and encryptable.
Frequency:	13.56MHZ
Access rate:	106kbps
Data life span:	More than 10 years.

Hotel Temic card index in electric panel door lock system :

Tech spec:	ATMEL inductive card.
Craft:	The electronic module and induction coil are inserted into the PVC.
Card reading:	Close to the inductive area.
Card capacity:	32 bytes.
Read-write features:	Readable, over-writable and encryptable.
Frequency:	125MHZ.
Access rate:	106kbps
Data life span:	More than 10 years.





Application







Certificates of electric panel door lock system

Onlense workshop:













After-sale service

1. We are in charge of training work of installation(including lock and management software)for free in our factory.

2. Our period of warranty is one year. All the spare parts is free during the period.

If it is really something wrong with our products we can't solve it, we will ask the

customer send the bad lock back and change a good one to them for free.

3. If the customers have any question of our product, we can help them solve it by

e-mail. We will help them until they solve it.



Eletric panel door lock system 8900RFG is mainly used in projects like: apartment,office,hotel especially near the sea or river.





Other series of electric panel door lock



Quality guaranteed!



Welcome to our website: http://www.anylock123.com



Any question, pls contact us freely, we will reply you promptly!



There are two questions you need to confirm as follows:

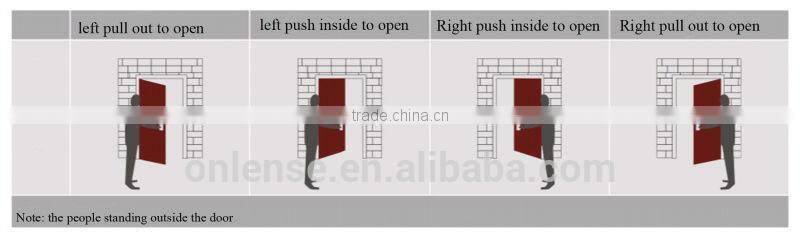

    1)Please confirm your door opening direction:







   2)Please confirm your door thickness:

Normally, the door thickness is 38-65mm.



Delivery terms:

DHL,UPS,EMS,sea transportation are available.

The locks will be shipped within 5 days upon receiving your payment.



Warranty:

One-year warranty. If the lock cannot work within one year period (except man-made improper factor), we don not charge any parts costs. If it goes broken after one year later, parts costs and labor costs are required.



 Welcome to Onlense!
