High Shear Mixers Uses For Tablet Coatings

Introduction

High Shear Mixers are multi-purpose compound emulsifying equipment with international advanced technology, its professional technique and manufacturing precision can approach international similar product.

Homogenizer machine is an efficient type machine with mixing, dispersion, breaking, dissolution, refinery, homogenization and emulsifying. The main parts are stators and rotors. Driven by motor, the rotor revolve quickly and produces a strong axial suction force which intakes the material to the chamber. Homogenizer machine shears, centrifugal press, break, fluid friction, turbulent homogenize mediums in the shortest time, the repeat of this process results in stable and high-quality products.

Homogenizer machine
can greatly simplify the traditional productions and upgrade the production efficiency and product quality. They are widely used in petrochemical, refinery chemistry, consumer chemicals, biology pharmaceutics, foods processing, papermaking, environmental protection, pain and so on.

Features

- Suitable for industrial online continuous production.

- Wide viscosity range than in batch high shear mixer.

- No batch difference.

- High efficiency, low noise.

Main technical data

-Capacity: Self-pumping throughputs of up to 130 T/H.
-No Bypassing: Product cannot bypass the precision rotor/stator work head.
-Work heads: Single stage rotor/stator configurations work heads as standard. For those applications that require greater shear, multistage configurations work head can be used. There are three stages rotors/stators available.
-Materials of Construction: SS304, SS316 and 316L. SS316 as standard.
-Motor Specification: normal type (Siemens, ABB Brand etc) as standard. Standard power supply: 3ph, 380V, 50Hz.
-Inlet and Outlet Connections: All sanitary clamp, thread and flange fittings are available on request. Clamp connection as standard.

-Sealing: Double-face water flushed mechanical shaft seals as standard. BGM Brand.
-Cleaning: suitable for cleaning in place (CIP and SIP).

-Jacket: Heating or Cooling jacket structure as optional with special requirements.

-Types: Bonve HEP is divided into two series which are FHM1 and FHM3 based on different numbers of rotor and stator. There is one set rotor and stator of FHM1 series while there are three sets rotors and stators of FHM3 series. FHM3 has much quicker, more efficient process. For those applications that require greater homogenizing and emulsifying, we recommend FHM3 series. Below are reference pictures and technical parameters.

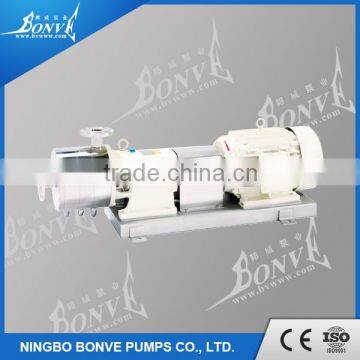

                                           FHM1 series

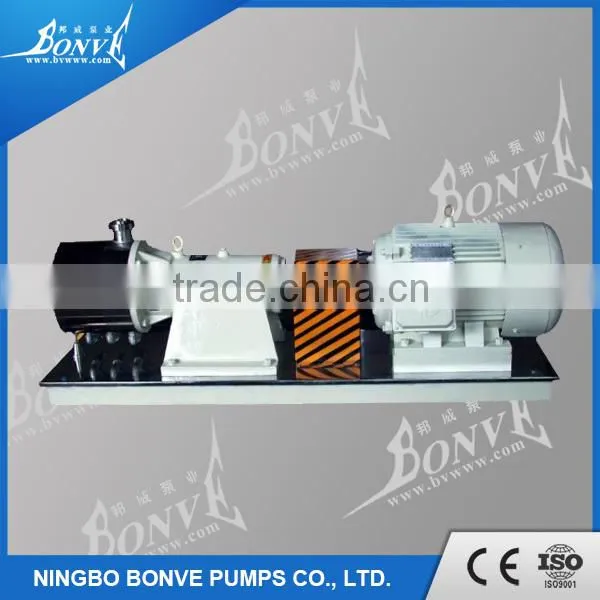

                                               FHM3 series

Guideline to choose a pump

--Processed medium’s name, density, viscosity?

--The proportion of solid and liquid product?

--Medium is corrosive, sanitary or toxic?

--Required capacity?

--If have request to the connection port size and type?

--Power supply you use? Like 3ph, 380V, 50Hz used in China

To quoted you a reasonable price, pls tell us below

--Qty.?

--Do you need FOB or CIF price? If CIF, which delivery port to ship? Sea is as shipping standard.

--If have any certificate request?

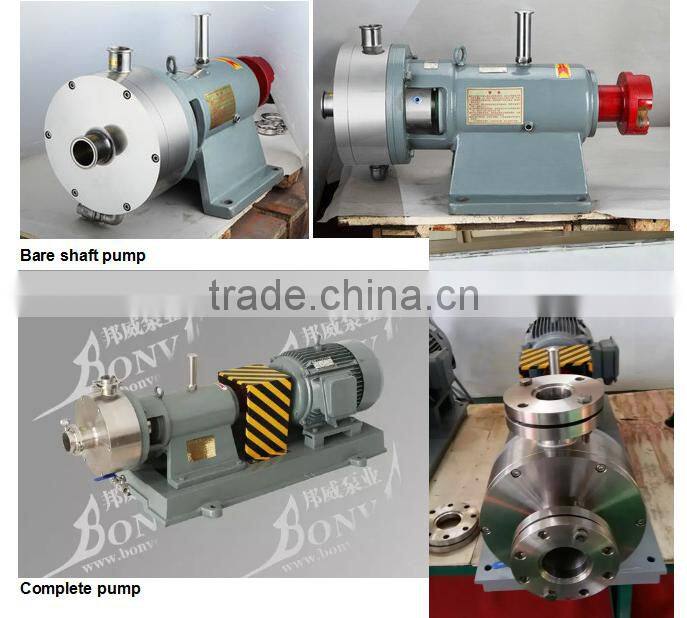

Product showcase

Below pump photos to show are some part of ours, you are welcomed to consult us with your duty and we are quite happy to recommend you right pump for your best using.

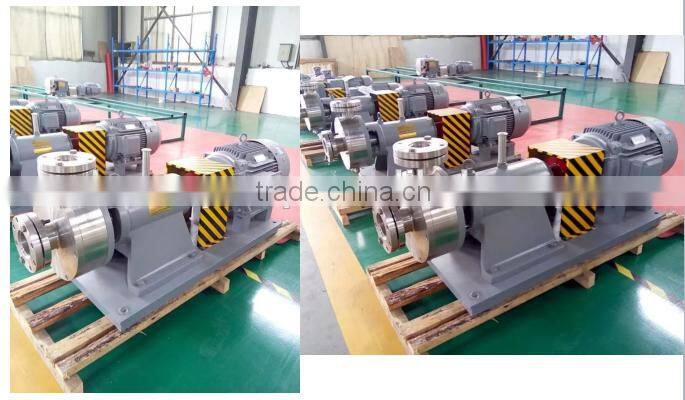

Pumps are ready to be dispatched

Pumps are packed by plywood case which is free of fumigation in general.

Shipping: by air, by sea or by train

We Supply You With Custom-Made Pump, Any Inquiry Will Be Highly Welcome!

Our company strength:  With nearly ten years' experience in manufacturing and exporting, we poses very professional know-how. We not only provide the the competitive prices with realibale quality, but also have the ability to help the customers to solve their problems happened during the design stage to the finish products.

Our pumps' strength: high precision, consistent performance, minimal risk of contamination, low maintenance and long life.

Our pump's warranty: upto two years while others is one year. Seal part is one year while others is have an year.

Ningbo Bonve Pumps(Bonve) is the leadership of manufacturing rotary lobe pump, homogeneous pump and grinding pump in China. For years Bonve and its engineers have made sustained endeavors to meet the varied demands of customers in different fields for fluid equipment and have developed varies kinds of advanced pumps. Rotary lobe pump, which is produced by Bonve, has reached world standards of its kind.

Bonve introduced the most advanced professional processing equipment. We have the first one set of full automatically sanitary pump testing system, advance CNC machining center, precise inspection equipment like CMM, spectrum etc. Bonve produces sanitary pumps strictly according to EHEDG, 3A and GMP standard.

Bonve pumps are widely used in petrochemical, refined industry, daily chemical, chemical fiber, pharmacy, food, pesticide, coating, paper-making and environment industry for fluid product.

1. Are you a trade company or a manufacturer?

A: We are a professional manufacturer of rotary lobe pump, homogeneous emulsion and grinding pump.

2. What is your MOQ?

A: one set is accepted, we look forward to building a long-term relationship with you.

3. What is your delivery time?

A: Usually 7-15 days for production (according to your quantity and requirements).

4. What is your trade terms?

A: FOB, CIF, CFR, EXW etc.

5. What is your payment terms?

A: 30% before production, 70% before shipment. 100% T/T is the best way for us, but we also accept L/C.

6. How to order pumps from Bonve?

6.1. Please tell us transferred medium's name, denisty, viscosity and temperature. Flow rate and delivery head required? Power supply you using? And you other requirements?

6.2. We will make quotation for you. After your confirmation, send you PI.

6.3. We will arrange the production after your down payment.

6.4. After finishing production, we send you pump's photo for your reference and you make balance peyment.

6.5. Arrange shipment.
