Container forklift with 4WD off road forklift all terrain forklift-------CPCY28, CPCY35

FOB Price

Negotiable / Unit

1 Unit(Min.Order)

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Condition:	New	Place of Origin:	Shandong, China	Brand Name:	CASER
Model Number:	CASER 3500kg Forklift	Certification:	CE	Type:	Other, Forklift

CE
Rated capacity 3500kg

Qingzhou Caser TradingCo.,LTD

*Rough Terrain Forklifts
*4X4WD, 3500kg,
*A498BT1 engine
* Full-Free lift Mast, side shift

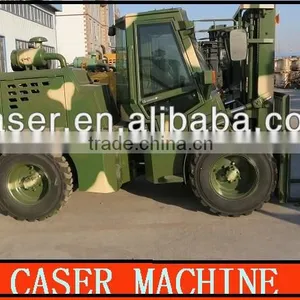

3500KG (3.5TON) Rough Terrain Forklift, with CE

-IT ADOPTD XINCHAI A498BT1 EURO III EMESSION STANDARD WHICH CAN FIT ALL EUROPEAN CONUTRIES AND OTHER COUNTRIED.

-IT IS FITTED WITH TRIPLEX MASTS WHICH HAS FULL FREE LIFT TRIPLEX MASTS ON AND EASY TO PILE GOODS IN CONTAINERS.

-IT CAN OPERATE IN 20GP,40GP AND 40HQ FOR LOADING AND UNLOADING GOODS.

-IT HAS A ARTICULATED FRAME JOINT WHICH CAN BE EASY WORK IN TURNING.

Model		CPCY35 Forklift(with CE)
Engine	Model	XINCHAI A498BT1 EuroIII emissions standard)
	Rated output(kw)	36.8KW
	Type	In line,vertical,water cooled,four-stroke
	Number of cylinders	4
	Cylinder bore	98
	Cylinder sroke	105
	Rated speed(r/min)	2200
	Method of starting	Electric
	Total displacement (L)	3.168
Rated load(kg)		3500
Load center distance(mm)		565
Lift height(mm)		4000
The freedom lifts the altitude(mm)		150
Max lifts the speed(full load)(mm/s)		372
Gate inclination angle (F/R)(°)		6/12
Moving velocity (idling)(km/h)		19
Max climbing power(%)		20
Overal dimensions(LWH)(mm)
Dead weight(kg)		3600
Min ground clearance(mm)		260
Wheel distance(mm)		1320
Axle-base(mm)		2040
Forks the tooth size(LWH)(mm)		107013045
Max traction(kgf)		2587
Max steering angle(°)		±35°
The after brige swing angle(°)		±12°
Min turning radius(mm)		4760
Drive Mean		Four Wheel drive
Detailed Info Equipped with European III emissions engine, Air-conditioning(warm and cold), Triple valve pilot control system, 30cm wider tubeless tires(12-16.5 or 14-17.5 tires), Side shifter, Quick change devices, Adjustable steering wheel, adjustable suspension seat, A wide range of accessories available
