6491X, Electric Wire, House Wiring, 450/750 V, Cu/PVC Cable (BS 6004)

FOB Price

USD $0.5 - $5 / Meter

500 Meters(Min.Order)

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

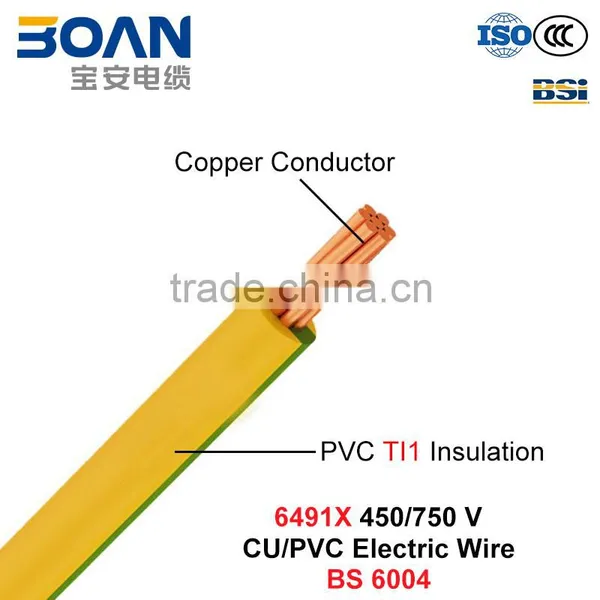

6491X, Electric Wire, 450/750 V, Cu/PVC Cable (BS 6004)

Application

For use in conduit and fixed, protected installation in switchgear, lighting and appliances.

Standards

BS6004

Constructure

Conductor

Class 2 stranded plain copper conductors to BS EN 60228:2005 (previously BS6360)

Insulation

PVC (Polyvinyl Chloride) Type TI1 to BS7655

Insulation Colour

Red, Black, Blue, Yellow, Brown, White, Green/Yellow, Grey

Voltage Rating

450/750V

Temperature Rating

0°C to +70°C

Minimum Bending Radius

Up to 10mm²: 3 x overall diameter

10mm² to 25mm²: 4 x overall diameter

Above 25mm²: 5 x overall diameter

No. of Cores x Nominal Cross Sectional Area	Nominal Thickness of Insulation	Maximum Overall Diameter	Nominal Weight
# x mm2	mm	mm	kg/Km
1 x 1.5	0.7	3.3	22
1 x 2.5	0.8	3.9	32
1 x 4.0	0.8	4.6	50
1 x 6.0	0.8	5.2	71
1 x 10.0	1.0	6.7	120
1 x 16.0	1.0	7.8	180
1 x 25.0	1.2	9.7	280
1 x 35.0	1.2	10.9	380
1 x 50.0	1.4	12.8	510
1 x 70.0	1.4	14.6	710
1 x 95.0	1.6	17.1	970
1 x 120.0	1.6	18.8	1200
1 x 150.0	1.8	20.9	1480
1 x 185.0	2.0	23.3	1900
1 x 240.0	2.2	26.6	2480
1 x 300.0	2.4	29.6	3100
