Type Shd-Pcg mining cable Cu/Epr/CPE 3/C 2kv ICEA S-75-381/NEMA WC-58
- 50000000 Meter / Meters per Month
- Shanghai
- T/T D/P D/A Credit Card
- Type Shd-Gc Mining Cable Cu/Epr/CPE 3/C 5kv ICEA S-75-381/NEMA WC-58
- Type Shd-Gc mining cable Cu/Epr/CPE 3core 8kv ICEA S-75-381/NEMA WC-58
- Type Shd-Gc mining cable Cu/Epr/CPE 3 core 15kv ICEA S-75-381/NEMA WC-58
- Type Shd-Gc mining cable cu/epr/cpe 3 core 25kv ICEA S-75-381/NEMA WC-58
- Type W Mining Cable Cu/Epr/CPE M/C 2kv ICEA S-75-381 NEMA WC-58
- Type G-Gc Mining Cable AWG8 Cu/Epr/CPE /C 2kv ICEA S-75-381
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | Boan or OEM | Model Number: | Type Shd-Pcg |
Insulation Material: | Other, Epr | Type: | Medium Voltage | Application: | Mining |
Conductor Material: | Copper | Jacket: | Other, CPE |
Product Description
Applications
Standards
ICEA S-75-381/NEMA WC 58

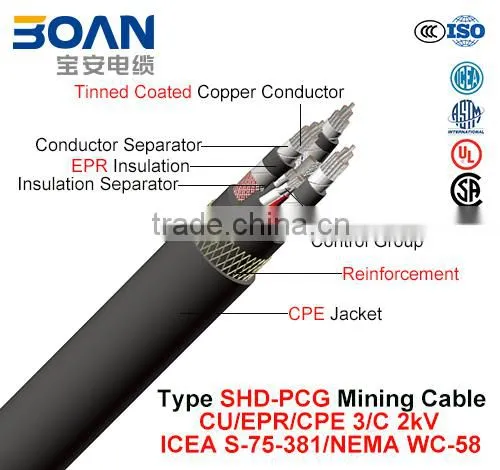

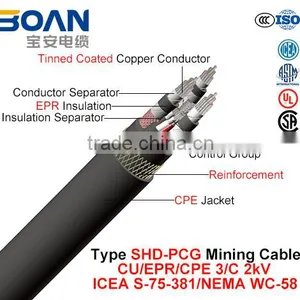

Construction
Conductors: Stranded annealed tinned copper conductor.
Options
Other jacket materials such as CSP/PCP/NBR/PVC are available upon request. Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.
Mechanical and Thermal Properties
Minimum Bending Radius: 6×OD Maximum Conductor Operating Temperature: +90ºC
Constructon | No. of Strands | Grounding Conductor Size | Control Conductor Size | Nominal Insulaton Thickness | Nominal Jacket Thickness | Nominal Overall Diameter | Nominal Weight | Ampacity |
No. of cores×AWG/kcmil | AWG/kcmil | AWG/kcmil | inch | inch | inch | lbs/kf | A | |
3×1/0 | 259 | 3 | 8 | 0.08 | 0.205 | 2.05 | 3092 | 211 |
3×2/0 | 329 | 2 | 8 | 0.08 | 0.220 | 2.25 | 3698 | 243 |
3×3/0 | 413 | 1 | 8 | 0.08 | 0.220 | 2.32 | 4295 | 279 |
3×4/0 | 532 | 1/0 | 8 | 0.08 | 0.250 | 2.62 |
