Mv-90 Power Cable 8kv 3/C Cu/epr/cts/pvc ICEA S-93-639

Jiangsu Boan Cable Co., Ltd.
Mv-90 Power Cable 8kv 3/C Cu/epr/cts/pvc ICEA S-93-639 thumbnail-1
Mv-90 Power Cable 8kv 3/C Cu/epr/cts/pvc ICEA S-93-639 photo-1
US$ 0.5 - 5 MOQ: 500 Inches
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Boan
Model Number:
MV-90
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name Boan
Model Number MV-90
Insulation Material XLPE
Type Medium Voltage
Application Other, Construction, Underground, Industrial, Power Station
Conductor Material Copper
Jacket PVC

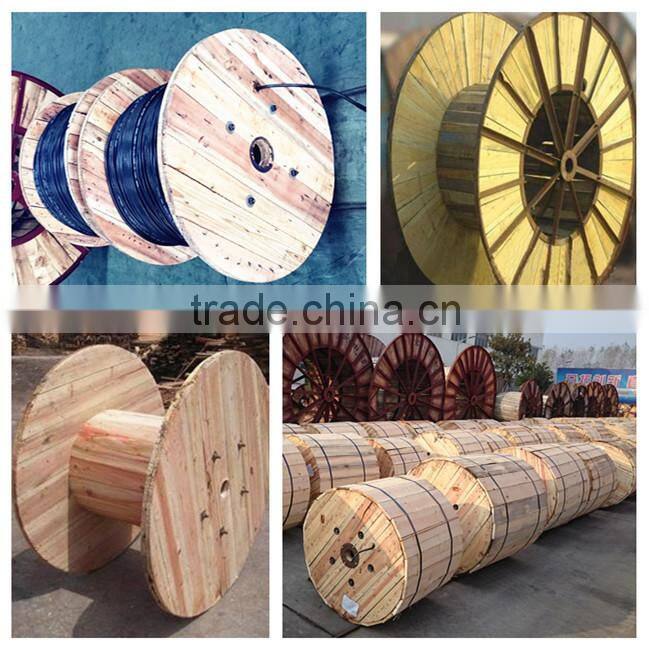

Packaging & Shipping

 Mv-90 power cable 8kv 3/C cu/epr/cts/pvc ICEA S-93-639

Product Description



MV-90, Power Cable, 8 KV, 3/C, Cu/EPR/CTS/PVC (ICEA S-93-639/NEMA WC71/UL 1072)

Features

UL Listed as MV-105.
Rated as Sunlight Resistance for CT use, 1/0 AWG and larger. Oil Resistance I jacket. True Triple extrusion system and closed handling raw materials system, to eliminate any contact with ambient, until extrusion process ends.
Application Primary power and distribution circuits in industrial and commercial installations, power circuits in generating plants where line to ground fault current are within shield capabilities. May be used in wet or dry locations, installed in raceways, duct, and open air, aerially or directly buried where permitted by NEC.

Standards
UL 1072: Medium Voltage Power Cables.
ICEA S-93-639/NEMA WC74: 5 - 46 kV Shielded Power Cables.
ICEA S-97-682: Standard for Utility Shielded. Power Cables Rated 5 - 46 kV.
AEIC CS8: Specification for Extruded Dielectric, Shielded Power Cables Rated 5 - 46 kV.

Specifications
Maximum operating voltage: 5 kV to 35 kV 100% and 133% IL. Maximum conductor operation temperatures: Wet and dry locations: Normal: 105 °C, Emergency: 140 °C, Short Circuit: 250 °C

Engineering Information
1. Conductor: Soft annealed uncoated copper compacted Class B per ASTM B496 or hard drawn Aluminum-1350 compacted Class B per ASTM B400.
2. Conductor Shield: Semi conducting cross-linked polyethylene (XLPE).
3. Insulation: Thermoset ethylene propylene rubber (EPR). On request, Amorphous EPR.
4. Insulation Shield: Semi conducting cross-linked polyethylene (XLPE).
5. Phase ID: Colored strings (black, red and blue yarns.)
6. Metallic Shield: Soft annealed uncoated copper tape, 5 mil thick, 25% minimum overlap.
7. Grounding (Optional): One or three soft annealed bare copper or covered conductors cabled with phase conductors.
8. Assembly: Conductors cabled with non hygroscopic fillers, as required and binder tape.
9. Jacket: Black sunlight resistance and flame retardant polyvinyl chloride (PVC) compound.
100% Insulation Levels (115 mil)133% Insulation Levels (140 mil)
SizeNumber of StrandsConductor NominalJacket ThicknessApproximate Outside DiameterApproximate Net WeightJacket ThicknessApproximate Outside DiameterApproximate Net Weight
CopperAluminumCopperAluminum
AWG of kcmil inmilinlb/kftmilinlb/kft
670.17801.341055881801.4511761001
470.21801.4312851008801.5514131136
270.27801.5516251185801.6717621321
1190.30801.62188713321101.8021401585
1/0190.341101.76227715761101.8824321730
2/0190.381101.85262517411101.9627861902
3/0190.421101.95308619711102.0632552139
4/0190.481102.06361822131102.1837942390
250370.521102.19414324821102.3043292668
300370.571102.29472827371102.4049222931
350370.621102.39531429891102.5055163190
400370.661102.48593332781102.6562343578
500370.741402.76733440141402.8875664246
600610.811402.95851845311403.0787634777
750610.911403.161018452071403.27104455467
1000611.061403.49130316397





Our Services



We are glad to offer free samples for testing, please feel free to talk with us.

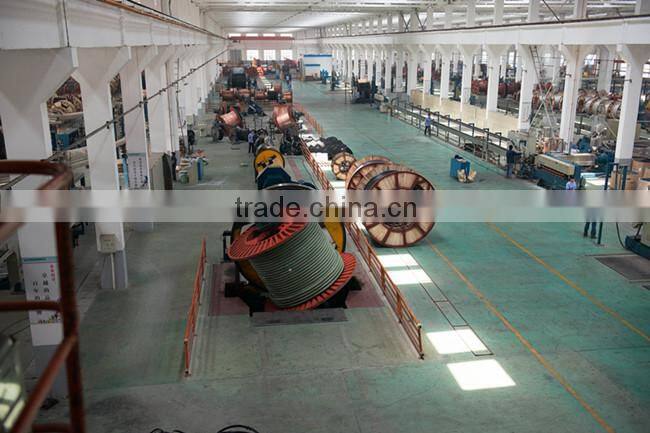

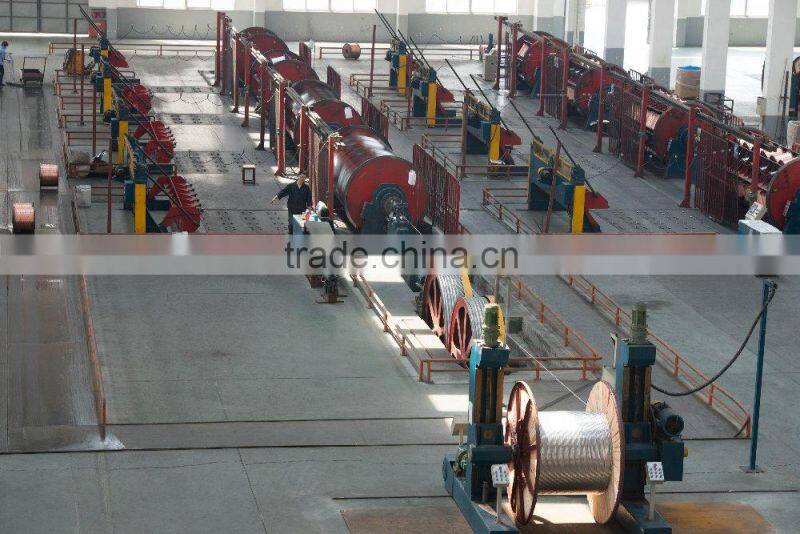

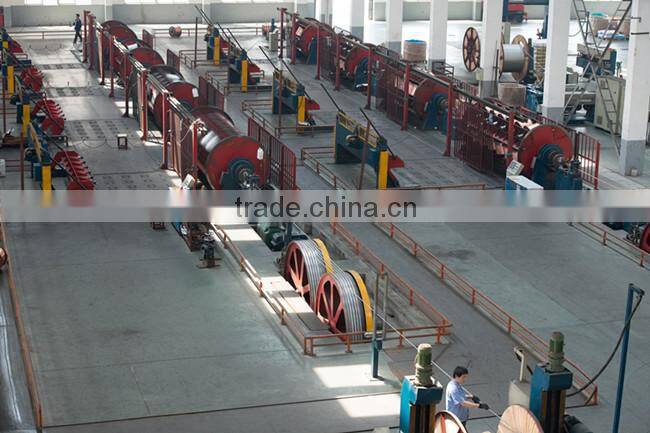

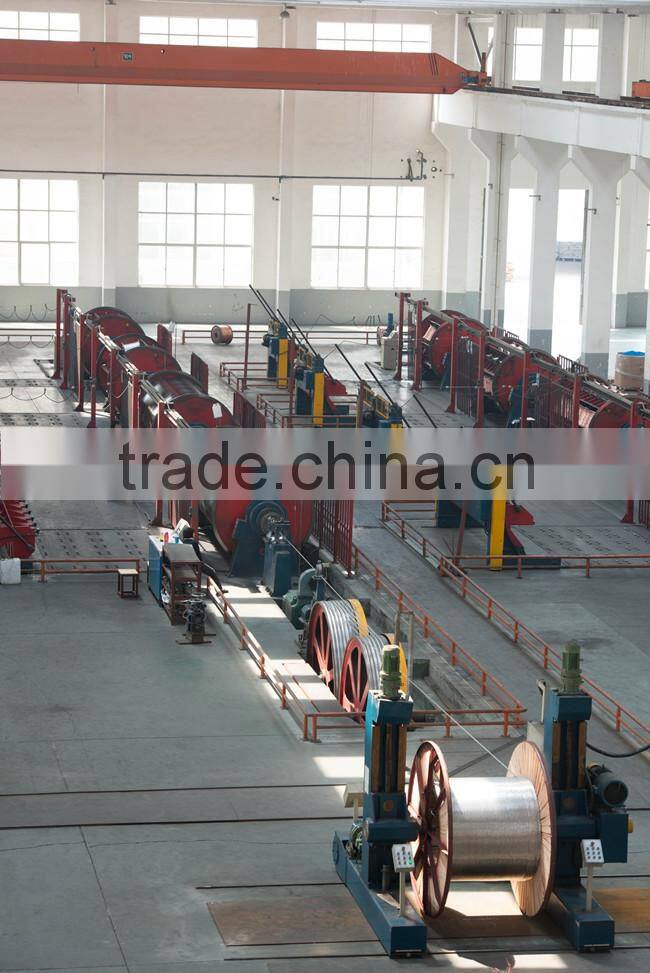

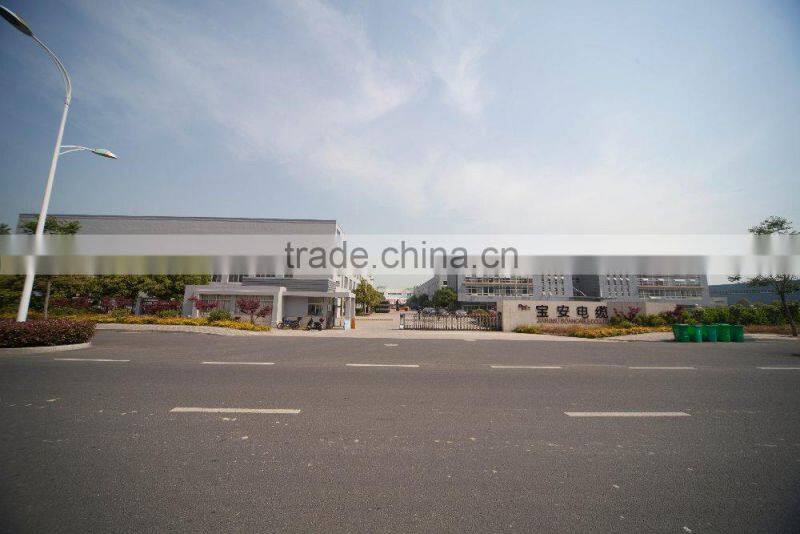

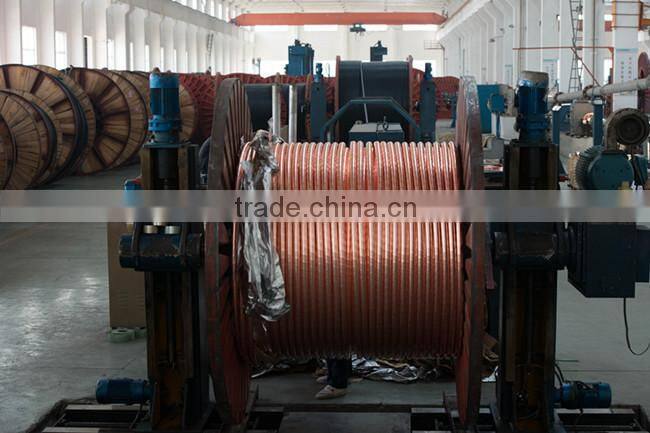

Company Information

Mv-90 power cable 8kv 3/C cu/epr/cts/pvc ICEA S-93-639Mv-90 power cable 8kv 3/C cu/epr/cts/pvc ICEA S-93-639Mv-90 power cable 8kv 3/C cu/epr/cts/pvc ICEA S-93-639Mv-90 power cable 8kv 3/C cu/epr/cts/pvc ICEA S-93-639Mv-90 power cable 8kv 3/C cu/epr/cts/pvc ICEA S-93-639Mv-90 power cable 8kv 3/C cu/epr/cts/pvc ICEA S-93-639



FAQ



1. Are you a manufacturer?

Yes, we are a manufacturer. Jiangsu Baoan Cable  Co., Ltd. Is factory. Mainly responsible for the import and export business.



2. What are your main products?

Our main products are ACSR, AAC, PVC Cable, XLPE Cable, Building Wire, Control Cable ect.



3. Is the quality of your products guaranteed?

Yes,the quality of our products is highly guaranteed. Our workshops are equipped with advanced machines and test equipment, and our workers are highly experienced and committed. We strictly follow the international standards and customers' requirements. The samples during production of your orders are available on demand. We will do the inhouse inspection for every batch of products. You can also send your inspection team to our site.



4. How can I get samples?

Please tell us the detailed information of products you need. Then we will check our stock. If we don't have the exact model you need, please consider whether the similar model is OK for you.



5.What is your waranty terms?

The waranty period of all of our products is one year after they arrived at the destination port. Disclaimer:the waranty terms don't cover the failures caused by violence handling,installation and operation.
