Sinft Hydraulic Oil Multimantle Element

Name: Sinft Hydraulic Oil Multimantle Element
Brand: SINFT
Availability: InStock

FOB Price

USD $100 - $120 / Piece

1 Piece(Min.Order)

Supply Ability 3000 Piece / Pieces per Month
Port Major port of Tianjin Xingang and also other negotiable ports in China such as Shanghai Qingdao Shenzhen Ningbo etc.
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Place of Origin:

Hebei, China

Brand Name:

SINFT

Model Number:

Multimantle Element

Packaging Details

1. Neutral sea-worthy packing;
2. Each one is packed with plastic bag inside and paper box outside, then put into a carton or a wooden case;
3. According to customer's request.

Product Description

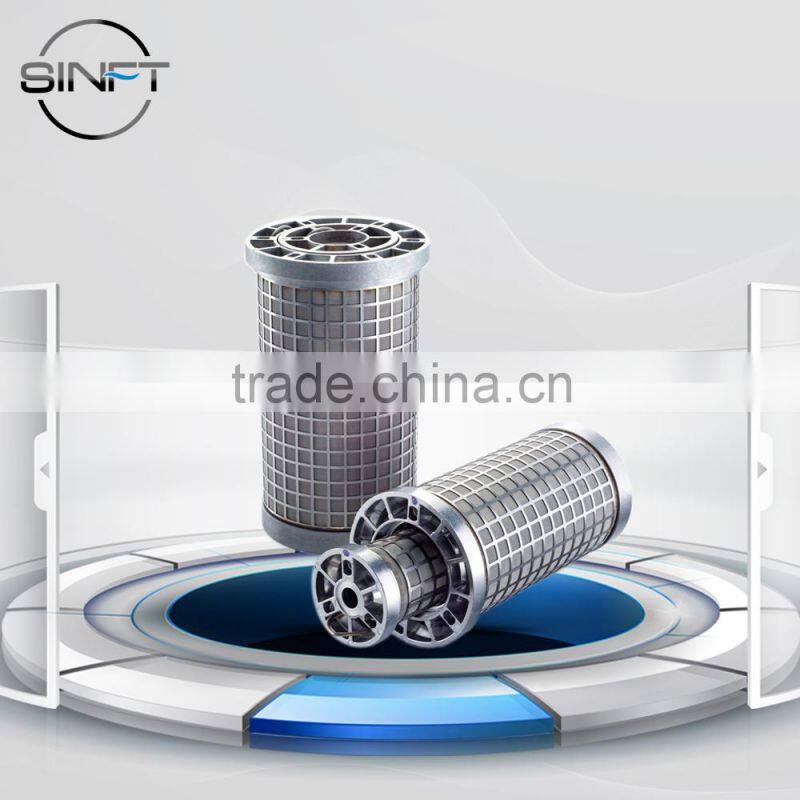

Multimantle ElementGoods Description of Sinft Hydraulic Oil Multimantle Element

Multimantle Element consists of several cylindrical filter mantles, which provide a large filtration surface with a small space requirement and allow the use of fine filter meshes. It is mainly used in:

l Various lubrication systems, e.g. marine engine, gas turbine, boiler, etc.

l Hydraulic system of rolling machine, continuous caster, etc.

l Metallurgy, petrochemical, machinery, papermaking, shipbuilding, nuclear power and coal power, and other industries related to oil filtration.

Features of Multimantle Element

l Fixing by screw providing easy assembly, dismantle, and cleaning.

l Less pressure loss, high strength, easy cleaning, long service life, high corrosion-resistance, big operation temperature range, large filtration area, big flow, high porosity, high permeability, high dirt-holding capacity, etc.

l Cost-saving as each mantle can be changed

Specifications of Multimantle Element

l Made of metal wire mesh

l Filtration precision: from 20μm to 120μm

l Max differential pressure: 0.35MPa

l Filtration form: parallel filtration

l Operation temperature: -25°C to 100°C

l Material: stainless steel, aluminum alloy, etc.

Filter element	Model	DN (mm)	Flow Capacity (L/min)	Micron Rating (μm)	Nominal Pressure (MPa)	Pressure loss (MPa)
						Initial	Max
Multiple	SFT-171×464	65	400	20 25 30 40 80 120	1.6	≤0.1	0.35
	SFT-171×760	80	600
Three unite	SFT-171×265	65	400
	SFT-171×464	80	600
	SFT-231×464	100	1000
Four unite	SFT-420×760	150	4000
Five unite	SFT-355×464	150	2500
	SFT-355×760	200	4000

We will attend the Exhibition of Achema 2015, 15 - 19 June, 2015 in Frankfurt, Germany. Welcome to our Booth E55-5, Hall 6.0. Waiting for you!

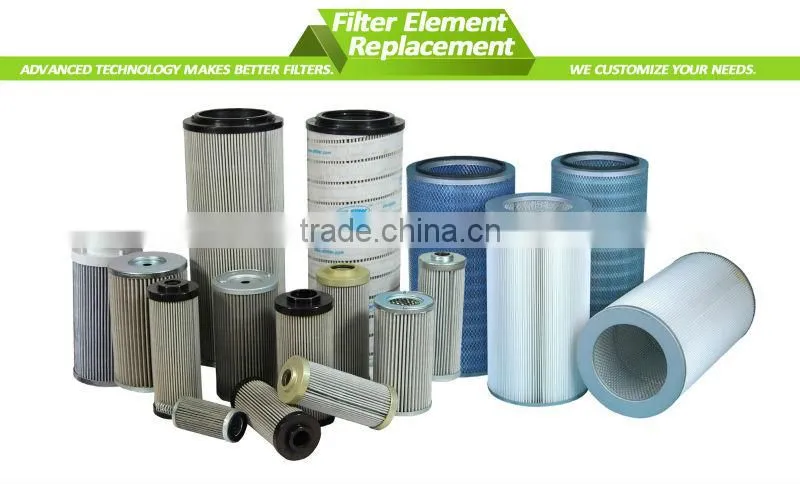

Replacement of Sinft Hydraulic Oil Multimantle Element:

We have the professional filtration technology and big stock for hydraulic filter element replacement for various brands. We can help you to choose the most suitable filter element to maximize the cleaning, and also can provide the tools to remove the faults and solve the problem of cleanliness in the system.

As per your requirements, we can make superior replacements to meet your demand, such as brand of PALL, HYDAC, EPPENSTEINER, ARGO, RACOR, FAIREY, ARLON, INTERNORMEN, DOMNIC KHUNTER, etc.

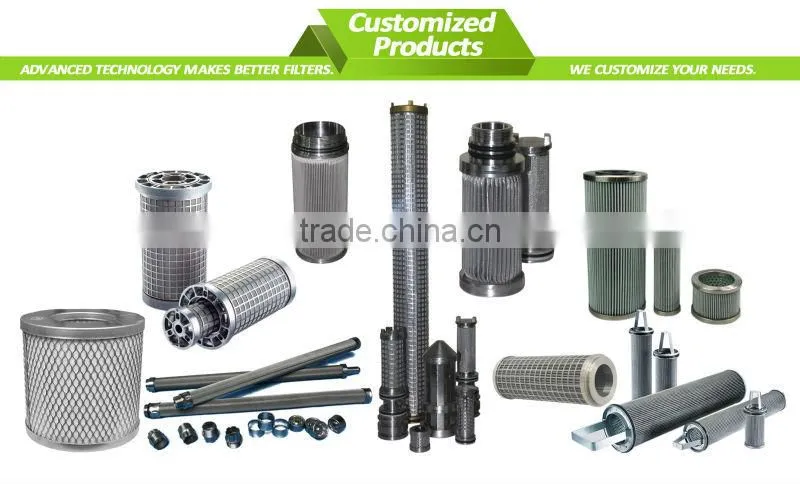

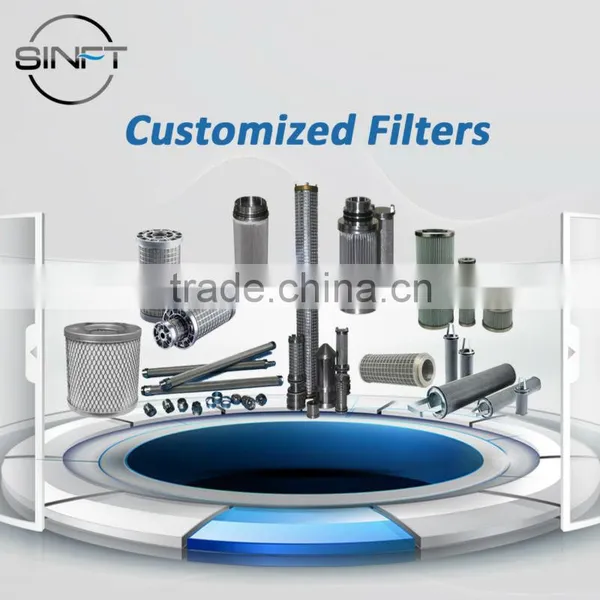

With 10-year experience of filter element industry, we have our own R&D department, skilled technicians, and advanced production line for filter element. Products can be customized as per drawings and samples. We can provide you more competitive quotations with the superior quality.

Packing of Sinft Hydraulic Oil Multimantle Element can be provided as follow:

1. Neutral sea-worthy packing;

2. Each one is packed with plastic bag inside and paper box outside, then put into a carton or a wooden case;

3. According to customer's request.

For testing or inspection of Sinft Hydraulic Oil Multimantle Element, we have our own Quality Control department and testing machines. For special testing requirement, we can provide the testing results from the third party.

Application of Sinft Hydraulic Oil Multimantle Element is mainly in Oil & Gas, Marine, Metallurgy, petrochemical, machinery, shipbuilding, nuclear power and coal power, and other industries.

For transportation of Sinft Hydraulic Oil Multimantle Element, all of the above modes are available. We will choose the best way for you.

Q₁. What’s Minimum Order Quantity?

A: Each item and/or color has a minimum order quantity, which would be stated in our quote sheet. Assorted items would be negotiable upon request.

Q₂. What’s your packing?

A: SINFT packing or according to customer’s requirements.

Q3. Can I get some samples? How could I pay the sample payment?

A: We are honored to offer you samples. We accept the sample payment via Western Union or T/T.

Q₄. How long is your Delivery Time?

A: If there is stock, the delivery time is about 5 working days after getting the payment, if no stock, 10-15 working days after the deposit.

Q₅. Are you a manufacturer or trading company?

A: We are a manufacturer.
