YK-ZX05 Vertical Drop Type Beverage Case Packer Full-automatically

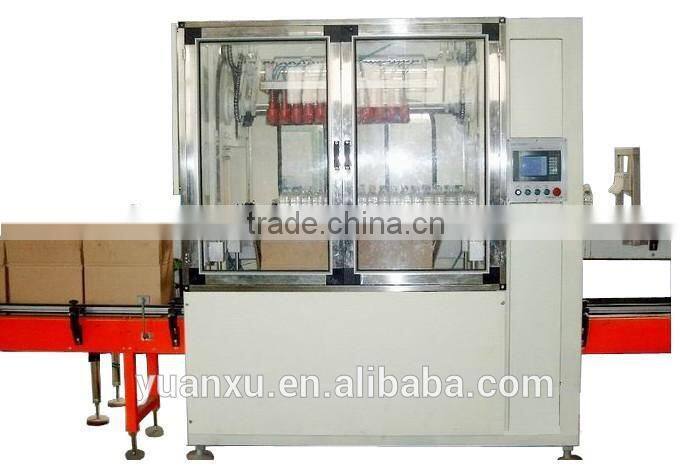

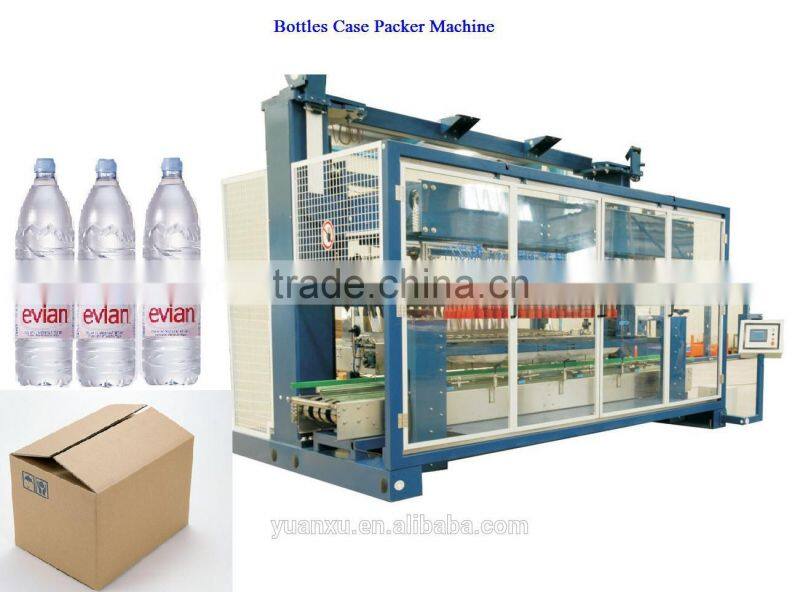

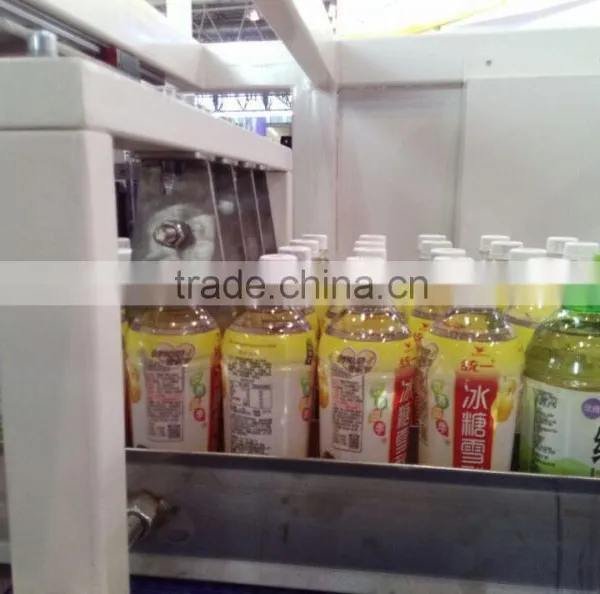

YK-05 Drop Down Type Case Packer is a simple and compact case packer machine used in beverage industry.the speed up to 10-15 cartons per min normally.But the speed will less than YK-01G Gripper case packer currently. YK-01G can max grippes 4by6=24 per gripper. according to amount of  filling bottles,we also can add exact grippers on the case packer.Anyway, the YK-05 is machine that save place or area ,compact and increase your efficient.

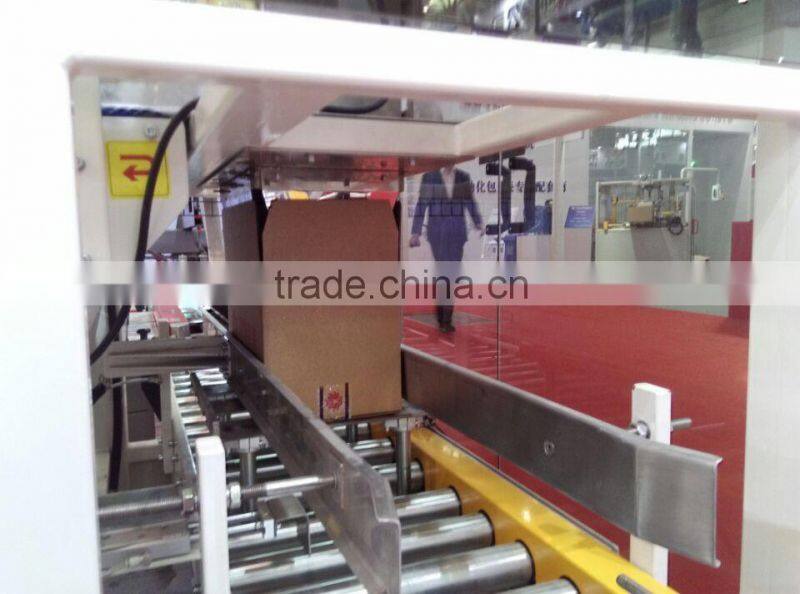

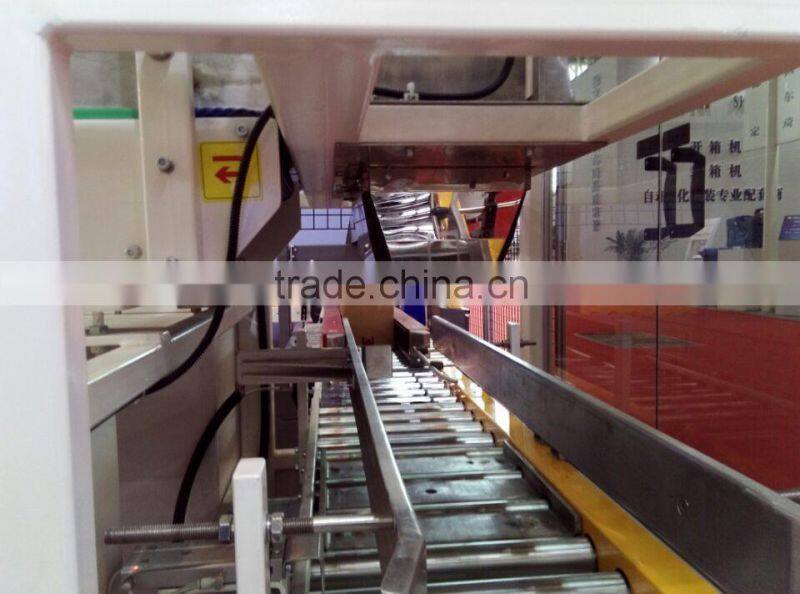

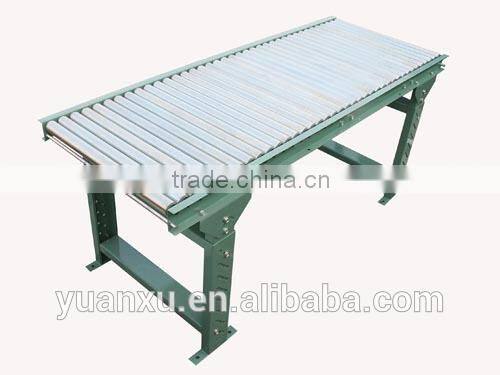

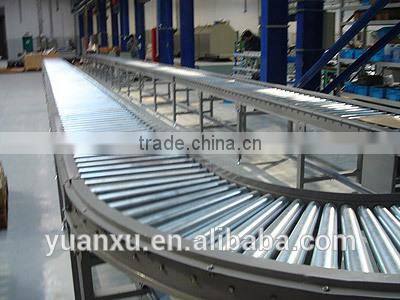

Roller vehiele conveyor depend on the rollers to carry items, mainly has roll, frame, stents, driving device etc components, it has large transportation amount, running fast, items conveyor smoothly, can achieve more varieties of conveying collinearity shunt advantages.

1. Structure form: linear machine, top ShengJi, back to the turnaround.

2. Roller material: carbon steel galvanization, stainless steel, aluminum alloy, PVC, ABS, etc.

3. The rollers material: carbon steel and aluminum alloy, stainless steel, plastic spraying profiles

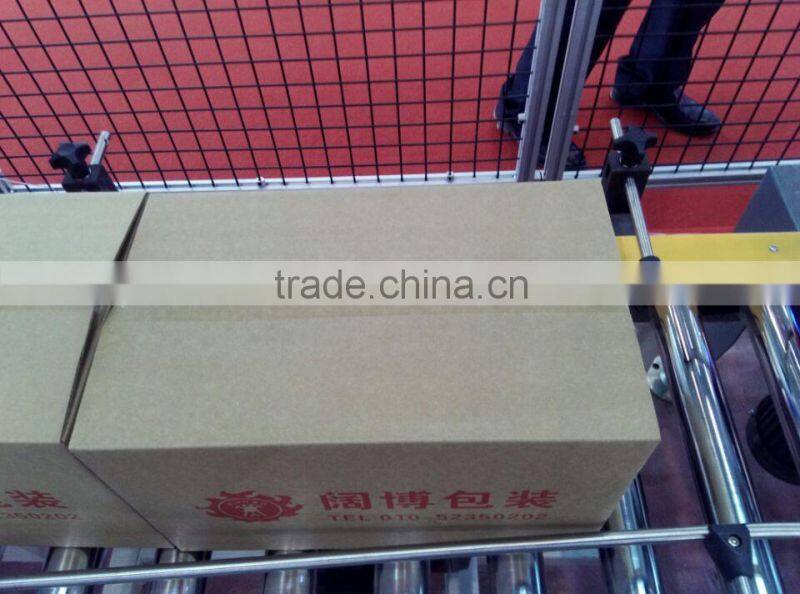

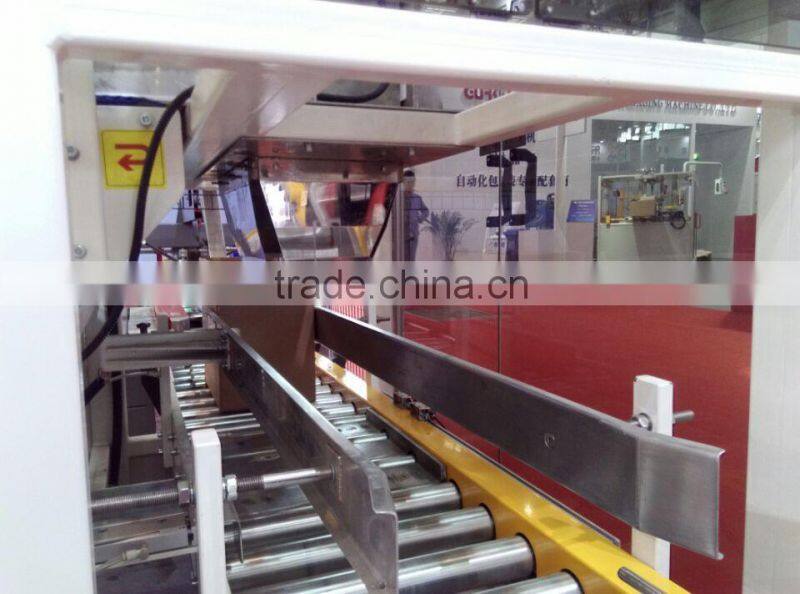

Other packing machineries connects to case packer with roller conveyor or belt.

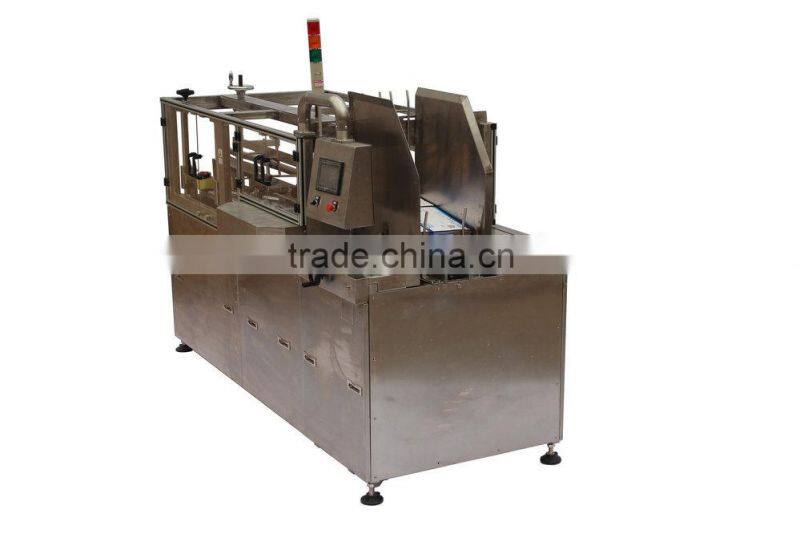

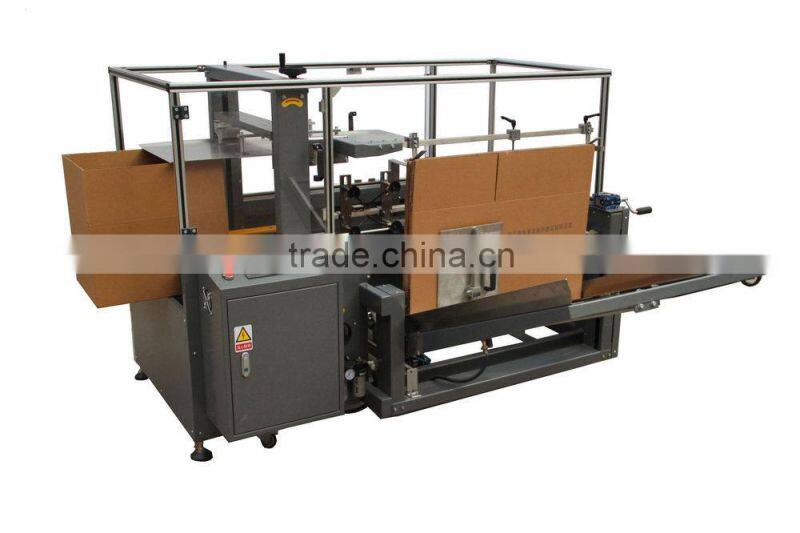

YKX Series is belongs to Erector content,which individed into YKX-01 ,02 and 03.ykx-01 is simple and compact erector ,01 is very popular for most of customers because can up to 8-12 carotns/min is enough in factory.

By the way, some factories has much product amount every day such as beverage or food industry,we can recomend YKX-02 OR 03 high speed erector as reference can up to 20/40Cartons/min.

Automatic have carton open form, bottom leaves sealed.

Folded grasping movement, automatic correct right angle, open the carton without any mistakes

Compact design, simple installment

Carton Supply device: suitable for different sizes, place the cartons in line and order

bottom sealed with Tape, clean, correct, light touch.

Supply chains are of SUS304, Oil-less, qualified GMP

Safety shield is made of carbon steel, aluminum alloy and engineering plastic, and meets the state standard.

Cap folding mechanism is made o f stainless steel with cylinder.

Carton pressing mechanism is made of macromolecule engineering plastic and chrome plated spring and          carbon steel with coated surface.

Cardboard is unfolded with the plate sucking device under the control cylinder.

 Bottom folding of the carton is finished with folding mechanism under the control cylinder.
