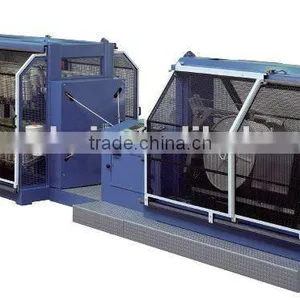

PP Rope Braiding Machine J
- 30 Set / Sets per Month
- Shanghai
- T/T
Product Details
| Place of Origin: | Jiangsu, China | Brand Name: | Jianghai Brand | Model Number: | Denmark M77 |
Product Description
Specifications
For production of finished coiled rope from natural and synthetic fibre yarns.Produces coils from 415m to 2600m.M77 Combined Strander and Rope Layer
For production of finished coiled rope from natural and synthetic fibre yarns
Produces coils from 415m to 2600m
Three-strand and four-strand models
From start to finish in one continuous operation
Extremely high output
Key features
- Hydraulic take-up system
- Increased take-up capacity
- Two rope lays per revolution
- Constant winding tension
- Inverter drive
- User-friendly touchscreen control panel
- Lightweight rotating parts
- Low noise level
- Low power consumption
- Simple, robust design
- Easy to change strand twist
- Highly reliable
- Easy to maintain
Technical Data
Rope Range | Φ12-30mm | |
Flyer Speed | 0-max.260rpm, depending on pre-twist factor | |
Rope Lay | S and Z | |
Twists Per Minute | 2×rope flyer speed | |
Lay Length | 45-122mm/22-8.2 twists per meter | |
Pre-twist Factor | 0.4-2.0×rope twist | |
Take-up, Coiling head | Φ900mm, adjustable traverse max.525mm, barrel φ260mm | |
Take-up, max. weight | Polypropylene 170 kg | |
Pay-off Package | M77-3 | M66-4 |
| 3×22, max. Φ250x300mm traverse | 4×22, max. Φ250x300mm traverse |
| 3×18, max. Φ300x300mm traverse | 4×18, max. Φ300x300mm traverse |
Take-up Capacity
| Coiling Head |
Φ12 | 2,600m |
Φ16 | 1,450m |
Φ20 | 930m |
Φ26 | 550m |
Φ28 | 465m |
Φ30 | 415m |
Production Capacity
| Output | Flyer Speed |
Φ16 | 950kg | 260rpm |
Φ20 | 2,000kg | 220rpm |
Φ26 | 3,610kg | 180rpm |
Φ28 | 4,200kg | 140rpm |
Φ30 | 4,600kg | 120rpm |
Examples based on three strand polypropylene rope.
Prewist factor:0.8. Lay length: medium. Efficiency rate:100%, 8 hours' production.
Motor Power: 22kw AC M77-3 Weight: 7,300kg M66-4 Weight: 8,400kg Height: 2.4m
