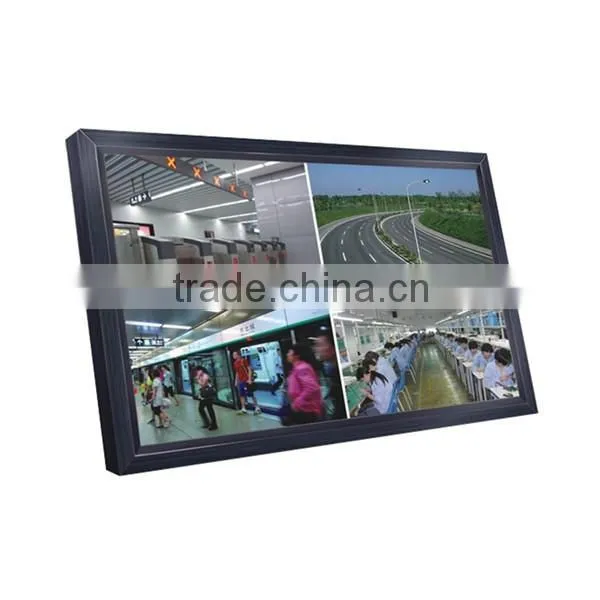

32" Industrial LCD CCTV Monitor (Industrial Metal case)

Name: 32" Industrial LCD CCTV Monitor (Industrial Metal case)
Brand: NODKA
Availability: InStock

FOB Price

USD $1 - $2 / Piece

1 Piece(Min.Order)

Supply Ability 0 per Month

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Products Status:	Stock	Application:	Desktop	Screen Size:	Other, 32"
Response Time:	8ms	Brightness:	450cd/m	Interface Type:	DVI, HDMI, Other, DVI, HDMI, VGA,YPbPr (BNC),CVBS (BNC)....
Contrast Ratio:	Other, 3500:1	Resolution:	1366 x 768	Panel Type:	TFT
Pixel Pitch:	0.51(H) x 0.51(W)	Brand Name:	NODKA	Model Number:	ND-PM-320NX
Place of Origin:	Shanghai, China

Product Description

32" Industrial LCD CCTV Monitor (Industrial Metal case) / TFT LCD CCTV Monitor with BNC VGA HDMI
Product Description
Panel (TFT LCD panel)	Diagonal Size	32"
	Aspect Ratio	16:9
	Pixel Pitch	0.51(H) x 0.51(W)
	Response Time	8ms
	Resolution	1366x768
	Contrast Ratio	3500:1
	Brightness (cd/m2)	450cd/m2
	Active display area	698(H) x 392(V)
	Display Color (Max)	16.7M
	Viewing Angle(U/D,L/R)	H:178o V:178o
	Lifetime	More than 50,000 hours
Inputs	VGA	X1
	DVI	X1
	HDMI	X1
	YPbPr (BNC)	X1
	CVBS (BNC)	X5
	Audio in (VGA & DVI)	X1
	Audio in (AV & YPbPr)	X1
	RJ45(for RS232 in)	X1
Outputs	CVBS (BNC)	X2
Outputs	RJ45(for RS232 out)	X1
Features and Benefits	1. HD LCD panel with 1366x768 resolution, viewing angle: 178o (H/V)450 nits birhgtness, high contrast ratio and colour saturation
	2. Metal case: anti-static, antimagnetic, anti-interference, damage-proofperformance. Compatible with VESA standard.
	3. Designed and engineered for 24/7 operation. Long lifetime: >50,000 hours .
	4. Professional driving IC (adopting 3D comb filter and digital noise reduction technologies), ensuring high quality and stable colour performance.
	5. Built-in temperature sensor results in smart fan&work temperature control.
	6. Energy saving, very eco-friendly low power.
	7. HDMI, VGA multiple I/O ports allow for greater compatibility and flexibility.
	8. Various installation methods: wall mount, floor stand, cabinet-mount etc.
	9. Operation modes: IR remote control, Key control
	10. Ideal LCD monitor for CCTV, SCADA etc. automation system
Product functions	Anti-static, antimagnetic anti-interference	√
	Built-in temperature sensor, smart fan	√
	Eco-friendly low power	√
	PIP/POP	√
	Pixel shifting	√
	Image auto adjustment (position/color)	√
	Image manual adjustment (position/color)	√
	White balance adjustment	√
	ADC Signal Conditioning	√
	3D decoding	√
	3D comb filter and digital noise reduction	√
	Double 3D De-interlacing	√
	3D Y/C separation	√
	3D Color Management	√
	3D Marginal sawtooth finish	√
	3D image static/dynamic compensation	√
	Picture Freezing	√
Mechanical Spec	Hole for wall mount	Refer the technical drawing
	NW/GW	13kg/16kg
	Dimension(W/O stand)	774×470×115mm
	Packing Dimension (1 pcs/ctn)	958x650x250mm
Power	Power supply	AC Input 100~240V(+/-10%)/50-60Hz
	Power consumpiton	≤150W
	Stand-by	≤2W

Product Performance Show
