Home > Products > High voltage probe > HVP-15HF (40MHz ,0~20 KV:1000:1)High voltage probe

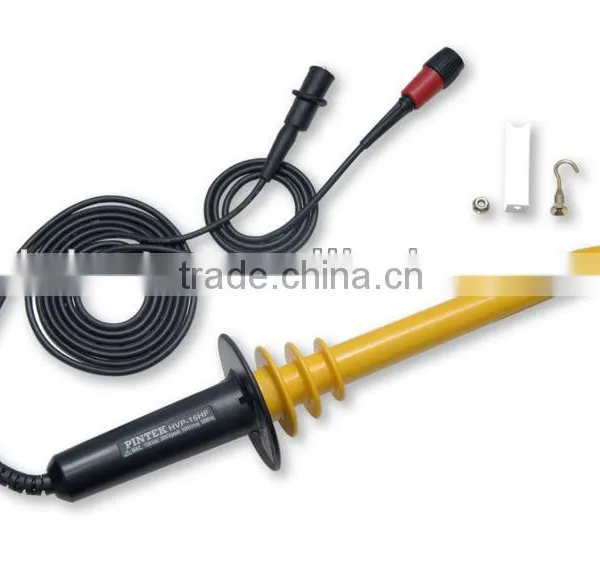

HVP-15HF (40MHz ,0~20 KV:1000:1)High voltage probe
Negotiable
/ Set
1 Set(Min.Order)
- 1000 Set / Sets per Month
- Guangzhou
- Credit Card
You May Like
-
HVP-40DM(400V/4KV/40KV) DC High Voltage probe Meter(LCD meter,read out voltage)
-
P6010A(100MHz,10KV) Oscilloscopes 10KV High Voltage Probe
-
P6028A High voltage probe for oscilloscope (200MHz,28KV)
-
HP-9258 ( 250MHz,2000Vp-p)oscilloscope probe,instrument parts
-
CP-3501( 500MHz,600Vp-p,hand made) oscilloscope probe
-
CP-3601 (600MHz,600Vp-p,hand made)oscilloscope probe
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | PINTECH, Pintech | Model Number: | HVP-15HF, HVP-15HF |
Product Description
Product Description
High voltage probe HVP-15HF(40MHz,0~10KV)
Model number | HVP-15HF |
MAX. WORKING VOLTAGE | DC: 0~10 KV |
AC : pulse ≤20 KV peak to peak | |
AC: Sine wave ≤7KV rms | |
SIGNAL / NOISE | ≥ 60 d B (1KHz), ≥ 50 d B (1MHz) |
BANDWIDTH | DC~40 MHz (-3d B) |
DIVISION RATIO | 1:1000 |
RISE TIME | ≤ 7 nS |
INPUT RESISTANCE | 100 MΩ ± 1% |
INPUT CAPACITANCE | 3.0 PF ± 0.5 PF |
COMPENSATION RAGE | 5 PF~50 PF |
CABLE LENGTH | 2.0 METER (±0.2 M) |
TEMPERATURE COFFICIENT | ≤ 200 PPM / °C |
DC ACCURACY | ≤1.5 % (DC~10KV) |
≤ 2.5 % ( DC~15KV) | |
OPERATING TEMPER ATURE | 0~ 0.5 °C |
STORAGE TEMPERATURE | -20 ~ +70 °C |
WEIGHT / VOLUME | 250 g / φ 75× 340 mm |

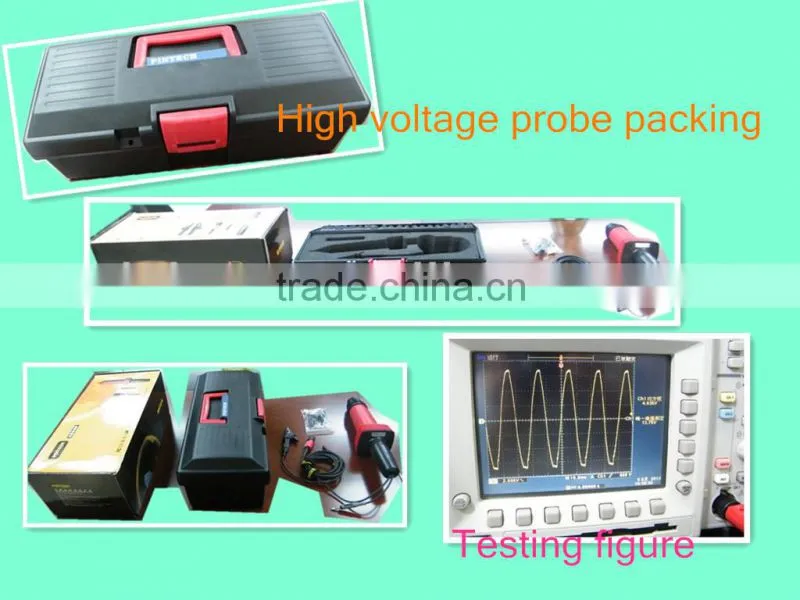

Packaging & Shipping
