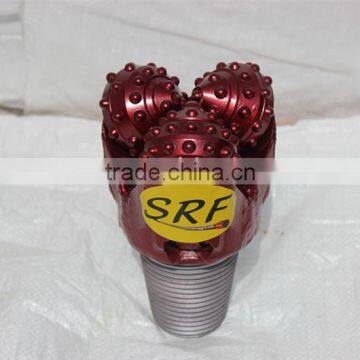

Tungsten Carbide Tricone Drill Bit with High Quality and Many Sizes for Oil Drilling

Name: Tungsten Carbide Tricone Drill Bit with High Quality and Many Sizes for Oil Drilling
Brand: SRF
Availability: InStock

FOB Price

USD $600 - $600 / Piece

1 Piece(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	China	Brand Name	SRF
Certification	API	Use	Other, Well Drilling, Coal Mining, Well Drilling
Machine Type	Other, Drill bit

IADC	WOB (KN/mm)	RPM (r/min)	Applicable Formations
114/116/117	0.3~0.75	180~60	Very soft formations with low compressive strength and high drillability, such as clay, mudstone, chalk, etc.
124/126/127	0.3~0.85	180~60	Soft formations with low compressive strength and high drillability, such as mudstone, gypsum, salt, soft limestone, etc.
134/135/136/137	0.3~0.95	150~60	Soft to medium formations with low compressive strength and high drillability, such as medium soft shale, hard gypsum, medium soft limestone, medium soft sandstone, soft formation with harder interbed, etc.
214/215/216/217	0.35~0.95	150~60	Medium formations with high compress strength, such as medium soft shale, hard gypsum , medium soft limestone, medium soft sandstone, soft formation with harder interbed, etc.
227	0.35~0.95	150~50	Medium hard formations with high compressive strength, such as abrasive shale, limestone, sandstone, dolomite, hard gypsum, marble,etc
Note: The upper limits of WOB and RPM in above table should not be used simultaneously.

IADC	WOB (KN/mm)	RPM (r/min)	Applicable Formations
417/437/ 447/415/435	0.35~0.9	150~70	Very soft formations with low compressive strength and high drillability, such as clay, mudstone, chalk, gypsum, salt, soft limestone, etc.
517/527/515	0.35~1.0	140~60	Soft formations with low compressive strength and high drillability, such as mudstone, gypsum, salt, soft limestone, etc.
537/547/535	0.45~1.0	120~50	Soft to medium formations with low compressive strength, such as medium, soft shale, medium soft limestone, medium soft sandstone, medium formation with harder and abrasive interbeds, etc.
617/615	0.45~1.1	90~50	Medium hard formation with high compress strength, such as hard shale, limestone, sandstone, dolomite. etc
637/635	0.5~1.2	80~40	Hard formations with high compressive strength, such as sandstone, limestone, dolomite ,hard gypsum, marble, etc.
Note: The upper limits of WOB and RPM in above table should not be used simultaneously.
