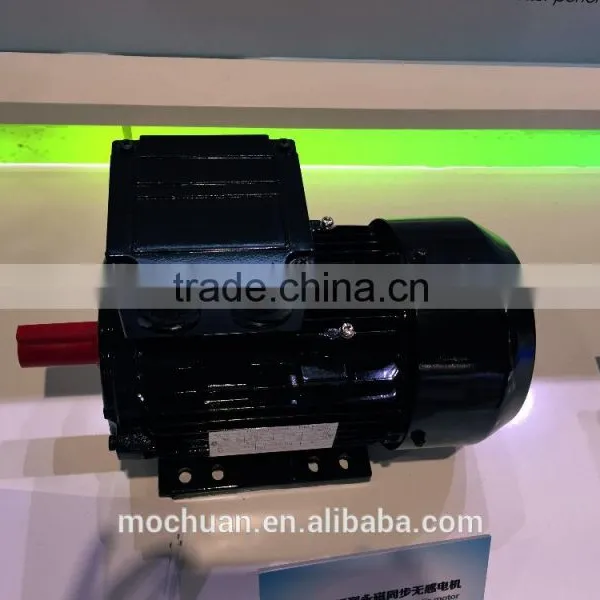

three phase 380v 3000rpm electric ac pmsm 20kw small motor

three phase 380v 3000rpm electric ac pmsm 20kw small motor

Energy-Saving and High Running Efficiency: After the permanent magnet synchronous electric motor with permanent magnet embedded permanent magnet, In running, the rotor is no induced current, and no loss resistance of rotor, it can improve the motor's efficiency 4% ~50%. Due to the water magneo roto excitation no induced current, to make motor power's factor colse to 1.

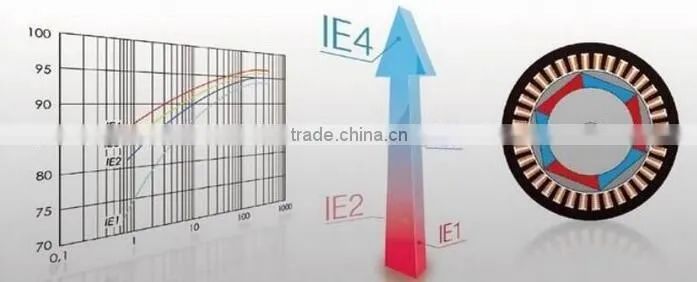

e.g Permanent magnet synchronous motor in the load rated >20%, the operation efficiency and power factor change not big, And running efficiency >80%, please check below:

1. Asynchronous starting permanent magnet synchronous motor; 2: Asynchronous motor

Mini Size and Light Weight: compare with same power asynchronous motor smller 1 to 2 stand, More compact size :

Seat No. and Power comparison

Longer Working Life:current decrease, reducing temperature rise, longer life of motor.

High Strating Torque and Overload Capacity: smaller the moment of inertia, big start torque, wider operating frequency control is simple and reliable; Adopts frequency conversion vector control method, high control precision and reduce the fault segment.

Non-inductive permanent magnet synchronous motor using IMP magnetoresistance effect, greatly improve the motor ,overload capacity, the over-load capacitiy more than 2 times .Compared with asynchronous motor, with more hard mechanical properties, long overload, torque characteristic show below picture:

Strong Universality and Applicability: same as the asynchronous motor structure, can be directly instead of asynchronous motor. Besides, it can be used for all kinds of bad working condition, how to low speed for a long time, frequency start, etc.

IE4 standard: it design novel structure and torque than the big volum , the volum is the same as power Y series motor shirnk up to 30% .Power factor than Y series motor hint of up to 15% , Motor is quiet and high overload at low temperature characteristices etc .

Parameter of permanent magnet synchronous small motor

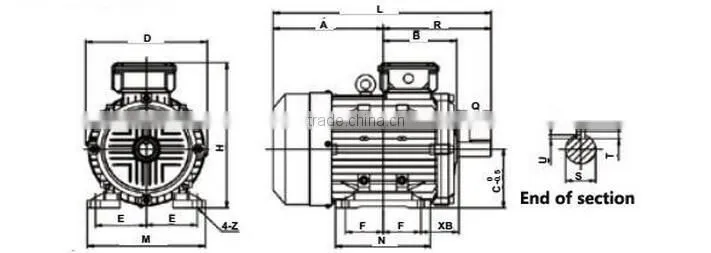

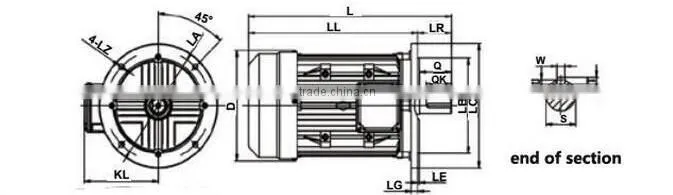

IMB5 installation struction Digaram and size of permanet magnet synchronous small motor:

Payment Terms of small motor

1. Payment: T/T, Western Uion, MoneygRAM, Paypal ( 30% deposit, the balance before delivery); Trade Assurance from Alibaba

2: MOQ:1pcs    3.Warranty: 18months

Each product is finished by the strict quality testing system to ensure customer's benefit, Exept that, every order is checed by our professional engineer before shipping.

For every order, correspondent user manual, installing video, wiring diagram, operating principle, even other cabinet(not our products) are made and sent to entiretly free our customer.

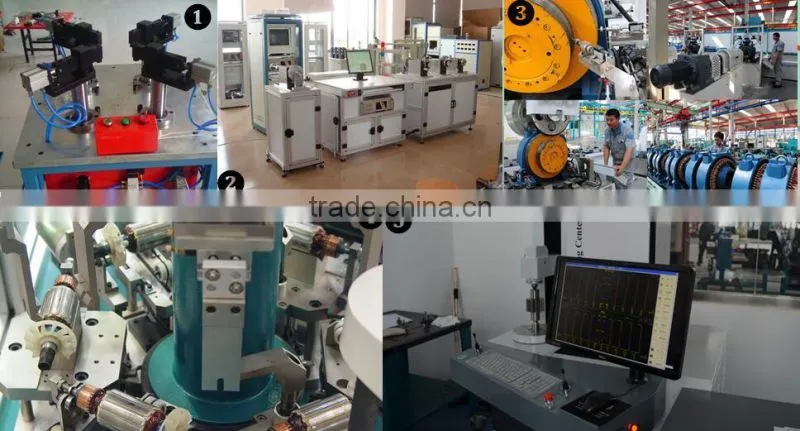

Motor Testing Equipment:

1: The perpendicularity of the motor stator testing;  2: Comprehensive performance testing system

3: Through the testing of coil test bed for permanent magnet motor and inverter;   4/5: Testing of motor rotor

Payment: 20,000 dollars trade assurance from alibaba really relieve you of worries for the future

Good after-sale service: Free repplacment for 3months

                                       Free maintenance for 18months

                                       Technical and maintenance service for life-time

Due to the quality problem free replacement part will be offered; Due to incorrect use, unauthorized repaire, fall etc, the maintenance cost will be chareged

Why choose us?

1. More than 15years experiece in Drives Manufacturing: the complete industry chain: in strong R&D team, the powerful supply capacity, the perfect system of feight of forwarding, and the first-class pre-sale service in any problem in operating PLC and converter.

2. Customization Production: size, model, package can be pre customer's request

3. Realizablw quality: professional design team, strict QC system and strong transportation cooperation

4: First-class Pre and after service: we ensuer the well pprocessing of the pracitce of our products for customers

Q2: General inverter can match with small motor directly to use?

No, the frequency converter must be support and drive non-inductive permanent magnet motor, And our MH40 series frequency converter can support it.

Q3: Does synchronous small motor meet what is international standard?

Our Non-inductive permanent synchronous motor meet European IE4 energy consumption standard motor, And the level of protection is IP55.

Q4: Compare with IE3, what is advantage of IE4? what is connection?

Basis on IE3, IE4 can save energy 5% to 10%, only Y connection.

Q5: Whether can directly wash synchronous small motor by water?

Non-inductive permanent synchronous motor is forbidden to wash by water.
