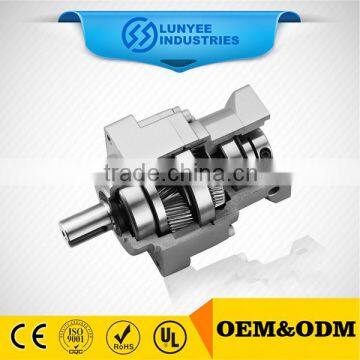

High Rigitidy Planetary Gearbox With Low Backlash
- 2000 Piece / Pieces per Month
- Shanghai Shenzhen Guangzhou
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | LUNYEE | |
| Model Number | PLS series | Gearing Arrangement | Planetary | |
| Output Torque | 4.5-2590N | Rated Power | 5kw-5000kw | |
| Input Speed | Max 10000rpm | Output Speed | under requirement |
Product Description
High Rigitidy Planetary Gearbox With Low Backlash
High Rigitidy Planetary Gearbox With Low Backlash
Dimension data of High Speed Reduction Gearbox
Technical data of High Speed Reduction Gearbox
PRODUCT TYPE |
| PLS70 | PLS90 | PLS115 | PLS142 | PLS190 | REDUCTION RATION | NUMBER OF STAGE |
Rated output torque | N.m | 30 | 75 | 150 | 400 | 1000 | 3 | 1 |
40 | 100 | 200 | 560 | 1200 | 4 | |||
50 | 110 | 210 | 700 | 1600 | 5 | |||
37 | 62 | 148 | 450 | 1000 | 8 | |||
27 | 45 | 125 | 305 | 630 | 10 | |||
77 | 120 | 260 | 910 | 1800 | 12 | 2 | ||
68 | 110 | 210 | 780 | 1800 | 15 | |||
77 | 120 | 260 | 910 | 1800 | 16 | |||
77 | 110 | 260 | 910 | 1800 | 20 | |||
68 | 110 | 210 | 780 | 1800 | 25 | |||
77 | 10 | 260 | 910 | 1800 | 32 | |||
68 | 110 | 210 | 780 | 1800 | 40 | |||
37 | 62 | 148 | 450 | 1000 | 64 | |||
27 | 45 | 125 | 305 | 630 | 100 | |||
Lifetime | Hour | 30000 |
| |||||
Instant stop torque | N.m | Two times of rated output torque | ||||||
Technical data of High Speed Reduction Gearbox
1. I am not sure which gear box should be choosed?
Let's do it together!
The most fitable gearbox will be selected for you, any question,
please feel free to contact us.
2.Is there much more gearbox for choices?
Yes, hear is internationl standard gearbox with different model
PLE PLF PLS SERIES
WPLE WPLF SERIES
APLE APLF SERIES
PLH PLF SERIES
ZPLX SERIES
AB SERIES
ABR SERIES
Lunyee gearbox was widely used in different area...
Lower the speed, Increase the torque,keep high precision and low backlash
That's the basic of gearox in Lunyee.
Stepper motor | AC motor | Servo motor | CNC |
Automatic door | Lawn mower | Food machine | Diesel engine |
Carton sealer | Packing machine | Paper machine | Foam machine |
Textile machine | Dyeing machine | Printing machine |
|
Crane machine | Conveying machine | Crusher | Diesel engine parts |
And more....
1. standard poly woodcase lined with carton and foam
2. customer sized package
3. neutral packing
Lunyee Industries Development Co., Ltd is a leading manufacturer of factory automation (FA) products.
We are dedicated in power transmission and motion control solutions.
