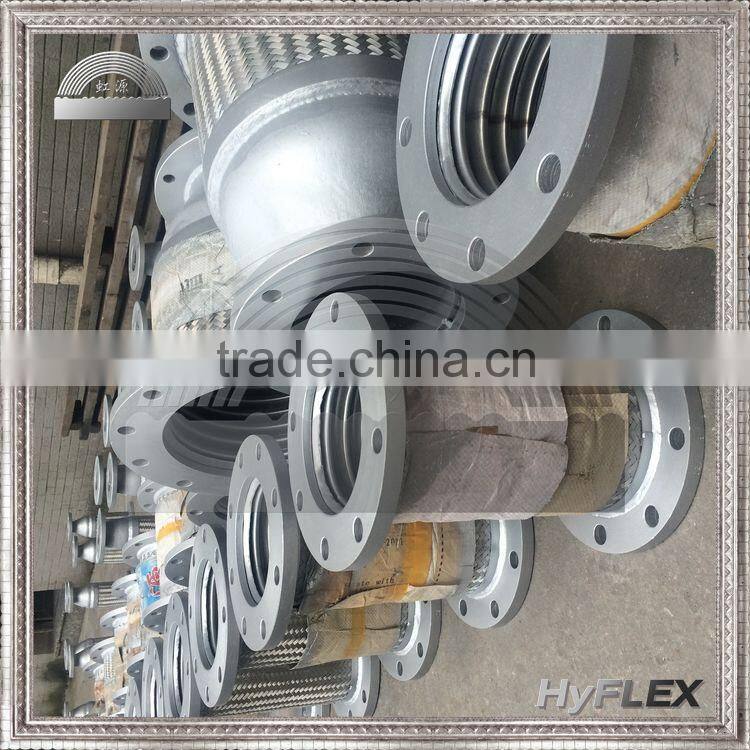

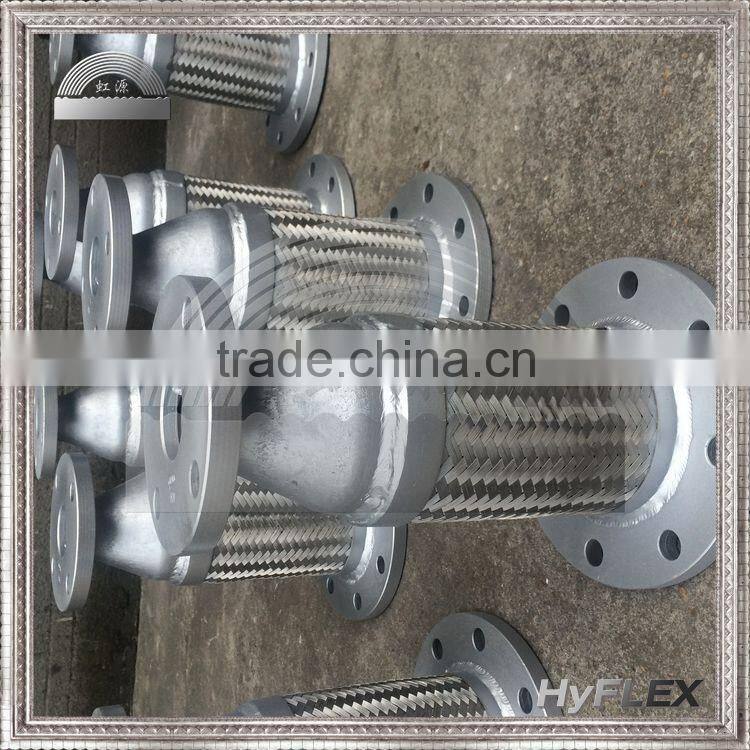

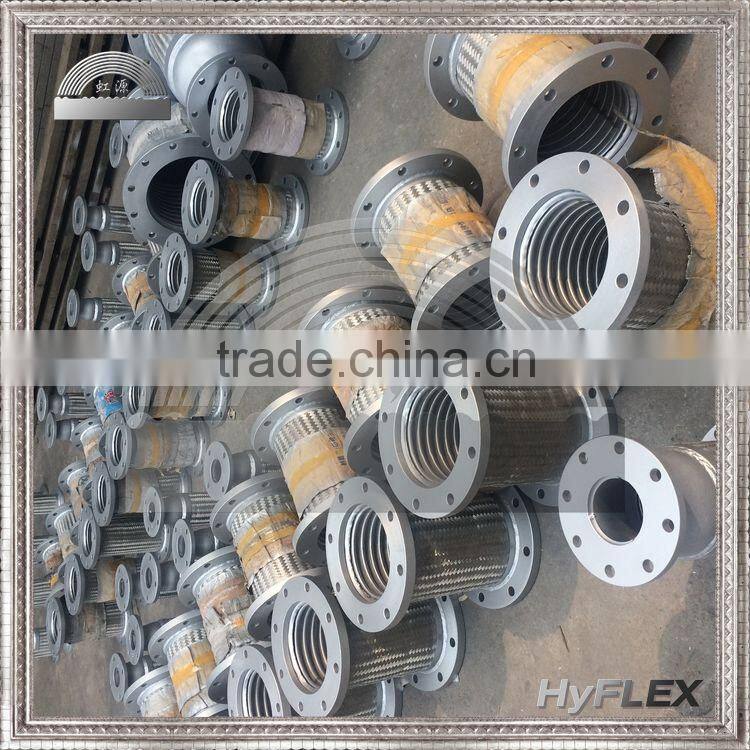

flexible braided REDUCING PUMP CONNECTORS with flange end
Negotiable
1 (Min.Order)
- 0 per Month
- Shanghai
You May Like
Product Details
Material: | Stainless Steel | Type: | Flange | Place of Origin: | Jiangsu, China |
Connection: | Flange | Shape: | Reducing |
Product Description

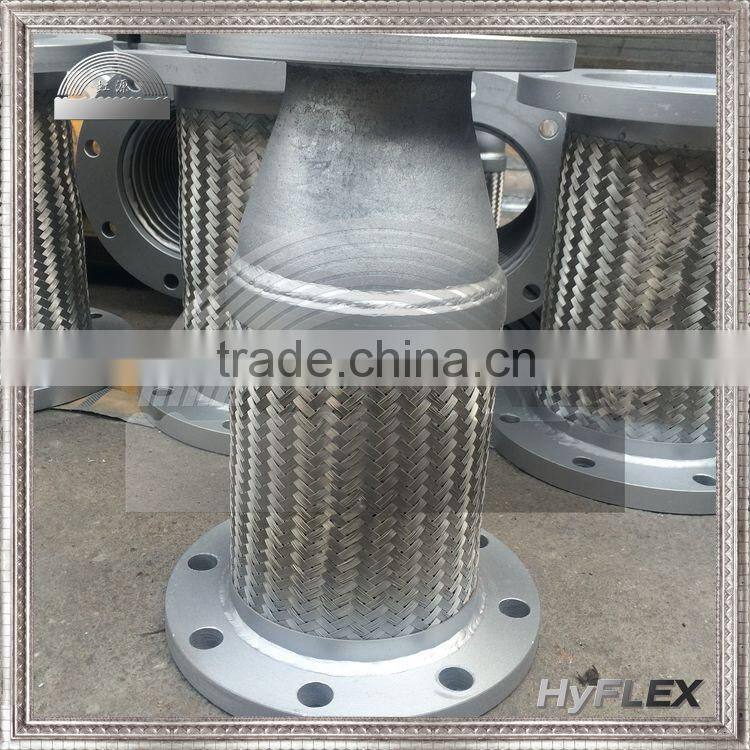

Reducing metal flexible flanged ends Concentric reducer
Carbon steel flange, 150#, flat face. Stainless steel corrugated hose and braid. Carbon steel concentric reducer.
MODEL NO. | PIPE | PERMANENT OFFSET | INTERMITTENT OFFSET | PRESSURE PSI | OAL |
SIZE | @ 70° F | ||||
HYR0215 | 2″ X 1.5″ | .375″ | .125″ | 345 | 12.25″ |
HYR2502 | 2.5″ X 2″ | .375″ | .125″ | 345 | 12.25″ |
HYR0302 | 3″ X 2″ | .375″ | .125″ | 289 | 12.25″ |
HYR0325 | 3″ X 2.5″ | .375″ | .125″ | 289 | 12.25″ |
HYR0402 | 4″ X 2″ | .375″ | .125″ | 300 | 12.75″ |
HYR0425 | 4″ X 2.5″ | .375″ | .125″ | 300 | 12.75″ |
HYR0403 | 4″ X 3″ | .375″ | .125″ | 300 | 12.75″ |
HYR0525 | 5″ X 2.5″ | .375″ | .125″ | 220 | 15.75″ |
HYR0503 | 5″ X 3″ | .375″ | .125″ | 220 | 15.75″ |
HYR0504 | 5″ X 4″ | .375″ | .125″ | 220 | 15.75″ |
HYR0602 | 6″ X 2″ | .375″ | .125″ | 200 | 16.25″ |
HYR0625 | 6″ X 2.5″ | .375″ | .125″ | 200 | 16.25″ |
HYR0603 | 6″ X 3″ | .375″ | .125″ | 200 | 16.25″ |
HYR0604 | 6″ X 4″ | .375″ | .125″ | 200 | 16.25″ |
HYR0605 | 6″ X 5″ | .375″ | .125″ | 200 | 16.25″ |
HYR0804 | 8″ X 4″ | .375″ | .125″ | 190 | 17.50″ |
HYR0805 | 8″ X 5″ | .375″ | .125″ | 190 | 17.50″ |
HYR0806 | 8″ X 6″ | .375″ | .125″ | 190 | 17.50″ |
HYR1006 | 10″ X 6″ | .375″ | .125″ | 150 | 19.50″ |
HYR1008 | 10″ X 8″ | .375″ | .125″ | 150 | 19.50″ |
HYR1206 | 12″ X 6″ | .375″ | .125″ | 125 | 21.50″ |
HYR1208 | 12″ X 8″ | .375″ | .125″ | 125 | 21.50″ |
HYR1210 | 12″ X 10″ | .375″ | .125″ | 125 | 21.50″ |
*Custom Size Available
