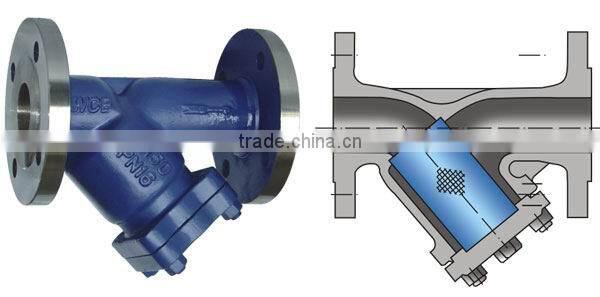

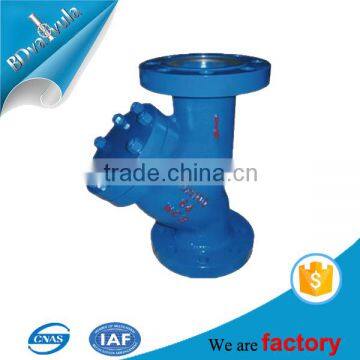

The Structure of Ductile Iron Y Type Strainer filter
The material of Ductile Iron Y Type Strainer filter
| Parts name | Material | |
| GL41H-16 | GL11H-16 | |
| Valve body | Grey iron, ductile iron | Grey iron |
| Bonnet | Grey iron, ductile iron | Grey iron |
| Filter | Stainless steel | Stainless steel |
The function and specification of strainer
| Type | Nominal pressure(MPa) | Testing pressure | Suitable temperature(°C) | Suitable medium | |
| Strength (water) (MPa) | Enclose (Water) (MPa) | ||||
| GL41H-16 GL11H-16 | 1.6 | 2.4 | 2.4 | ≤200℃ | Water,Vapour,Oil |
Outline and connecting measurement of strainer
| Type | Nominal DN(mm) | Measurement(mm) | Reference Weight (kg) | |||||||
| L | D | D1 | D2 | b-f | Z-Φd | H | ||||
| GL41H-16 | 15 | 130 | 95 | 65 | 46 | 14-2 | 4-Φ14 | 66 | 0.55 | |
| 20 | 150 | 105 | 75 | 56 | 16-2 | 4-Φ14 | 66 | 2.55 | ||
| 25 | 160 | 115 | 85 | 65 | 16-2 | 4-Φ14 | 75 | 3.28 | ||
| 32 | 180 | 135 | 100 | 78 | 18-2 | 4-Φ18 | 97 | 5.42 | ||
| 40 | 220 | 170 | 145 | 110 | 85 | 18-3 | 4-Φ18 | 122 | 6.7 | |
| 50 | 240 | 170 | 160 | 125 | 100 | 20-3 | 4-Φ18 | 135 | 9.74 | |
| 65 | 280 | 195 | 180 | 145 | 120 | 20-3 | 4-Φ18 | 160 | 13.13 | |
| 80 | 320 | 240 | 195 | 160 | 135 | 22-3 | 8-Φ18 | 202 | 19.8 | |
| 100 | 380 | 270 | 215 | 180 | 155 | 24-3 | 8-Φ18 | 250 | 28 | |
| 125 | 440 | 290 | 245 | 210 | 185 | 26-3 | 8-Φ18 | 297 | 47.9 | |
| 150 | 480 | 345 | 280 | 240 | 210 | 28-3 | 8-Φ23 | 360 | 58 | |
| 200 | 600 | 460 | 335 | 295 | 265 | 30-3 | 12-Φ23 | 382 | 94 | |
| 250 | 605 | 405 | 355 | 320 | 32-3 | 12-Φ25 | 447 | 133 | ||
| 300 | 635 | 460 | 410 | 375 | 34-4 | 12-Φ25 | 455 | 170 | ||
| 350 | 696 | 520 | 470 | 435 | 34-4 | 16-Φ25 | 480 | 206.8 | ||
| 400 | 790 | 580 | 525 | 485 | 36-4 | 16-Φ30 | 560 | 278 | ||
| 450 | 850 | 640 | 585 | 545 | 44-4 | 20-Φ30 | 635 | 396 | ||
The usage of strainer
For the pipelines where the nominal pressure is ≤ 1.6MPa and can filter out trash in the medium.
The production of strainer
For the flange, generally we use the wooden box and wooden pallet with plastic film, for the Pipeline Strainer flanged Strainer Y Type Strainer DN20 ,we can use those two type, and also we use the Woven bag. In addtion, we can change the shape of the packaging according to customer requirements.
Except the strainer ,we can also supply the flange,pipe fitting,gate valve,ball valve,butterfly valve,check valve ,ETC
If you need the Non- standard products ,according to your drawings, we can produce the product, that you most satisfied.

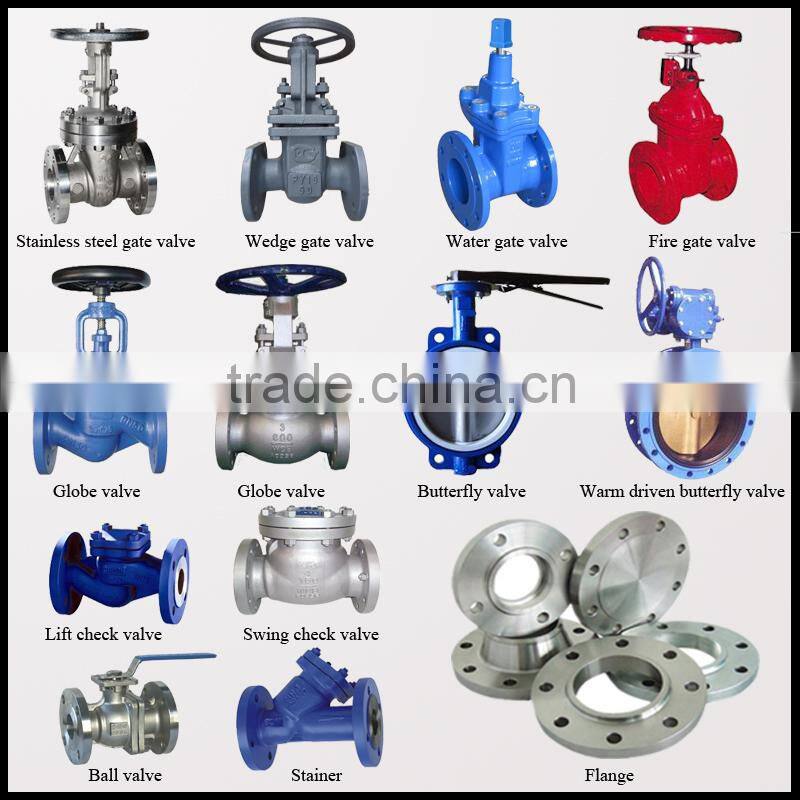

THE MAIN TYPE AND MATERIALS OF OUR VALVES
