Introduction:

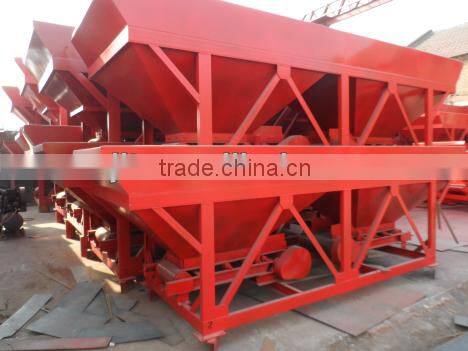

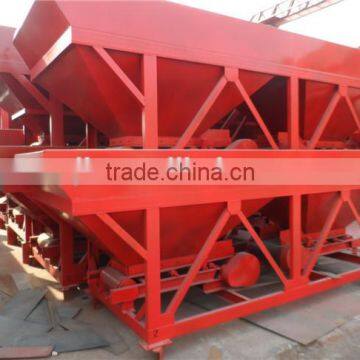

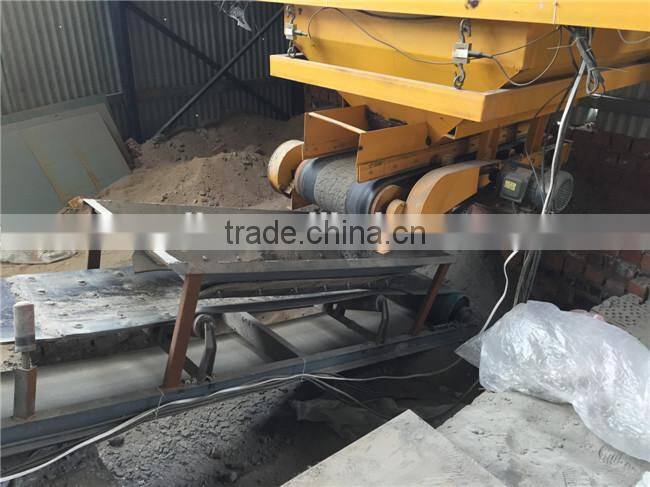

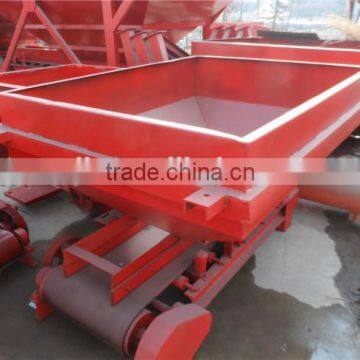

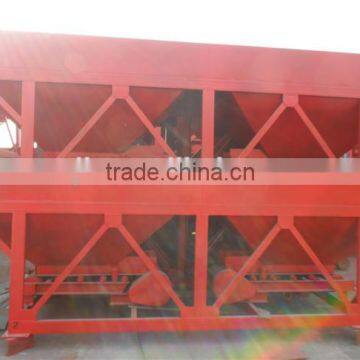

PLD-series concrete batching machine is often matched to the concrete mixing machine in the concrete mixing plant, consists of storage bin, batching hopper, belt conveyor, machine leg, outrigger, and computer-controlled batching system. Three sensors hanging on the batching hopper are used together with computer.
Their structure more reasonable and more convenient operation, simpler maintenance, the failure rate lower.
Main technology data:
Model | PLD800 | PLD1200 |
Batching hopper capacity | 800L | 1200L |
Storage bin capacity | 2*2m3 | 2*3m3 |
Output | 48m3/h | 60m3/h |
Batching precision | ±2% | ±2% |
Aggregates class | 2 kinds | 2 kinds |
Max. load-bearing capacity | 2000kg | 3000kgs |
Feeding height | 2600mm | 2700mm |
Weighing type | Computer weighing | Computer weighing |
Motor | 6.6Kw | 9kw |
Weight | 3110kg | 3550 |
Overall dimension | 5400*1800*3060 mm | 6000*2200*3460 |
