glass bottle carbonated drink production line

Specifications

glass bottle carbonated drink production line
CE UL certificated
ISO 9000
S/S 304 And contact part S/S 316 fabricated

1.  glass bottle carbonated drink production line   flow chart

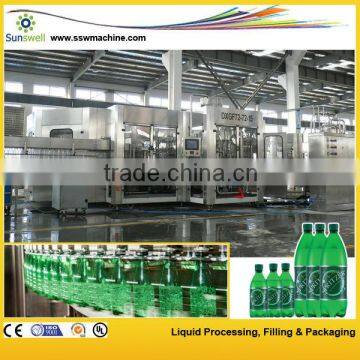

DXFG series is special for carbonated drink filling, combined with rinsing, filling and capping. It is innovated and designed in the requirement of hot filling juice beverage technics, on the bases of introducing, digesting and absorbing advanced technology abroad. It is reasonable in structure, safe to operate and easy to maintain, which is an ideal choice for beverage producers.







the output can reach 30000bph for this machine







the output range is 2000-30000bph







with gripper technology, very easy to change your bottle style.







2. Techncal details of   glass bottle carbonated drink production line



 2.1.Bottle infeed









 2.2. Rinser





 2.3. Filler









 2.4. capper















































Base



 Rotary rinser



Rotary filler



Rotary capper



Bottle infeed and outfeed system



Controlling cabinet



 main components



 1) Material of filling valve: Stainless steel SUS316L.



2) Material of rotary tray and machine platform of rinser and filler: Stainless steel SUS304.



3) Main motor:  ABB/SEW.



4) Sliding bearing:  Igus.



5) Frequency inverter: Mitsubishi.



6) Touch screen: PROFACE.



7) PLC: Mitsubishi.



8) Pneumatic components: FESTO.



9) Seals: Busak+Shamban.



 3. Model of  glass bottle carbonated drink production line



Model	Working capacity
DXGFD14-12-5	2,000BPH
DXGF18-18-6	4,000BPH
DXGF24-24-6	6,000BPH
DXGF24-32-6	9,000BPH
DXGFH40-40-10	12,000BPH
DXGFH50-50-12	18,000BPH
