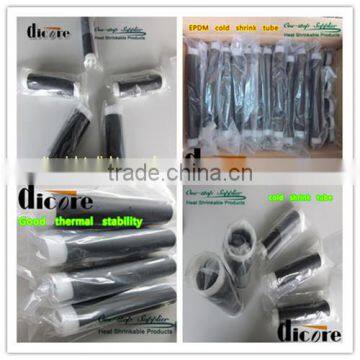

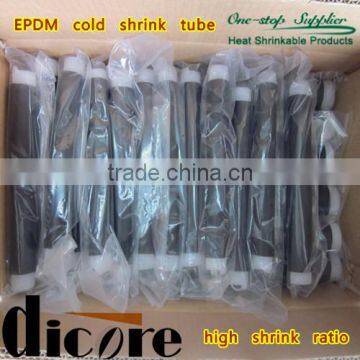

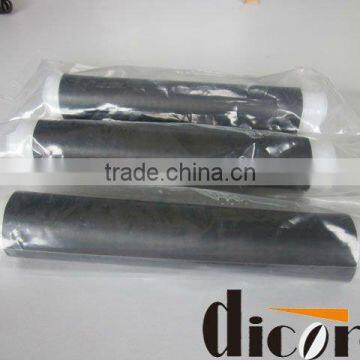

COAX SEALING cold shrink sleeving kit
Model | EPDM |
Material | EPDM tubing |
Standard color | Black |
waterproof, installation | Excellent wet electrical properties |
Resists fungus | |
Resists acids and alkalis | |
Resists ozone and ultraviolet light |
Technical Data:
Property | Test Method | Standard |
Color | - | Black |
Hardness (shore A) | ASTM D 2240 | 49 |
Tensile Strength(Mpa) | GB/T528 | 11.8MPa |
Elongation At Break(%) | GB/T528 | 639% |
Tear Strength(KN/m) | ASTM D 624 | 38.6kN/m |
Dielectric Strength(KV/mm) | ASTM D 149 | 6~20kV/mm |
Volume Resistivity(Ω.cm) | GB1410-89 | 4~8×1015ohm*cm |
Specifications:
3M Model | Diameter(mm) | Range of cable outer diameter mm(min-max) | Relaxed tube length,mm(inch) |
8423-6 | 20 | 7.8~14.3 | 152(6'') |
8423-8 | 25 | 10.1~20.9 | 203(8'') |
-- | 32 | 13~25.4 | 229(9'') |
-- | 32 | 13~25.4 | 279(11'') |
8426-9 | 35 | 13.9~30.1 | 229(9'') |
8426-11 | 35 | 13.9~30.1 | 279(11'') |
8427-6 | 40 | 17.5~35.1 | 152(6'') |
8427-12 | 40 | 17.5~35.1 | 305(12'') |
8427-16 | 40 | 17.5~35.1 | 406(16'') |
8248-6 | 53 | 24.1~49.2 | 152(6'') |
8428-12 | 53 | 24.1~49.2 | 305(12'') |
8428-18 | 53 | 24.1~49.2 | 457(18'') |
8429-6 | 70 | 32.2~67.8 | 152(6'') |
8429-9 | 70 | 32.2~67.8 | 229(9'') |
8429-12 | 70 | 32.2~67.8 | 305(12'') |
8429-15 | 70 | 32.2~67.8 | 381(15'') |
8429-18 | 70 | 32.2~67.8 | 457(18'') |
8430-9 | 104 | 42.6~93.7 | 229(9'') |
COAX SEALING cold shrink sleeving kit
COAX SEALING cold shrink sleeving kit
