Heat Shrink Fiber Optic Splice Protector/fiber Fusion Splice/SMOUV/FSP1/CFSP Quality Choice

Model

HSFP

Type

Single fiber, Ribbon fiber

Material

PE heatshrink tube,fusion tube, 304 steel rod

Length

60,45, 40, 25, 20mm

Tubing outer diameter

3.0, 2.6, 2.4, 2.2, 1.3mm

Steel rod diameter

1.5, 1.2,1.0, 0.8, 0.5mm

Working Temperature

-45 to 110°C

Shrinking temperature range

120°C

Standard color

Clear

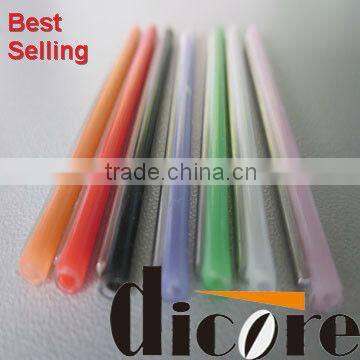

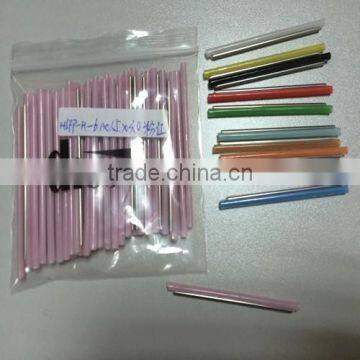

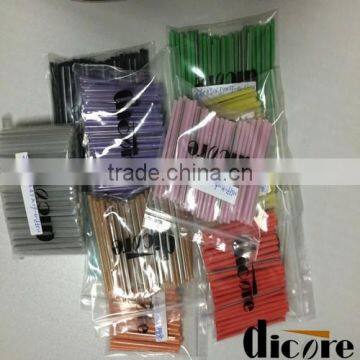

Other 12 colors available

White, Blue, Grey, Yellow, Brown, Black, Orange, Pink, Red, Cyan, Green, Purple

Consist of cross linked polyolefin, Hot fusion tubing and Stainless Reinforcing Steel Rod which keep optic transmission properties of optical fiber and enhance the protection to optical fiber splices. Easily operating to the optical fiber during installation without damaging and clear sleeve make it easy to detect splice before shrinkage.

Model

Splice Protection Sleeves (After Shrinking)

Fusion Tubing

Steel Rod

Outer Diameter

(±0.2)

Length

(±1)

Inner Diameter

(±0.1)

Length

(±1)

Outer

Diameter

(±0.1)

Length

(±1)

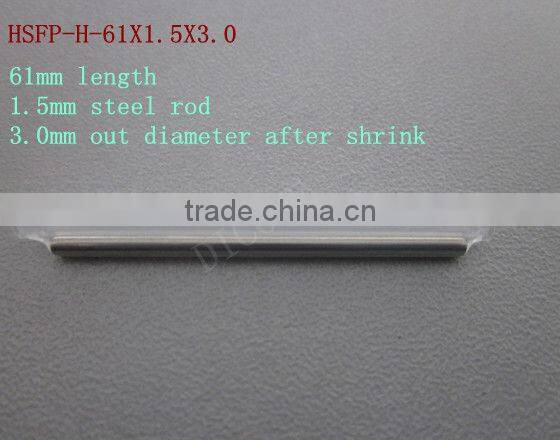

HSFP-H-61x1.5x3.0

3.0

61

1.5

61

1.5

55

HSFP-H-45x1.5x3.0

3.0

45

1.5

45

1.5

40

HSFP-H-40x1.5x3.0

3.0

40

1.5

40

1.5

35

HSFP-H-25x1.5x3.0

3.0

25

1.5

25

1.5

20

HSFP-H-61x1.2x2.6

2.6

61

1.5

61

1.2

55

HSFP-H-45x1.2x2.6

2.6

45

1.5

45

1.2

40

HSFP-H-40x1.2x2.6

2.6

40

1.5

40

1.2

35

HSFP-H-25x1.2x2.6

2.6

25

1.5

25

1.2

20

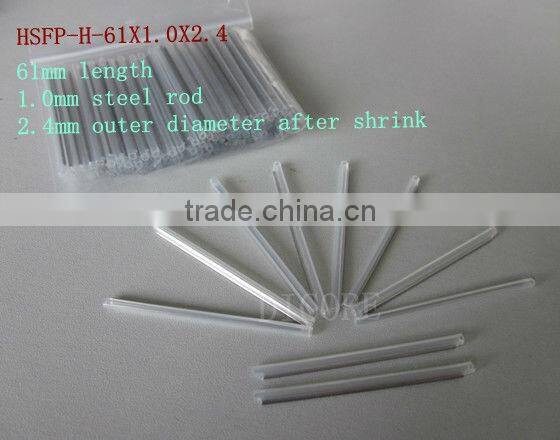

HSFP-H-61x1.0x2.4

2.4

61

1.5

61

1.0

55

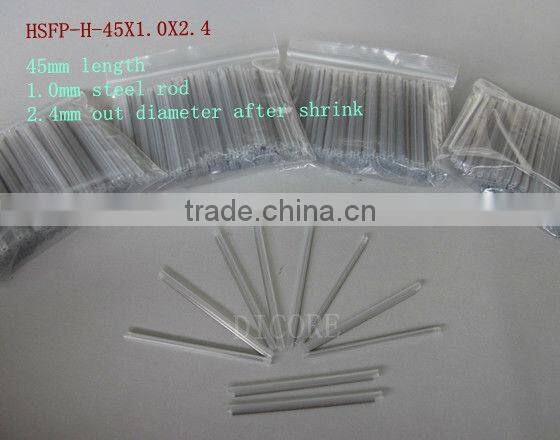

HSFP-H-45x1.0x2.4

2.4

45

1.5

45

1.0

40

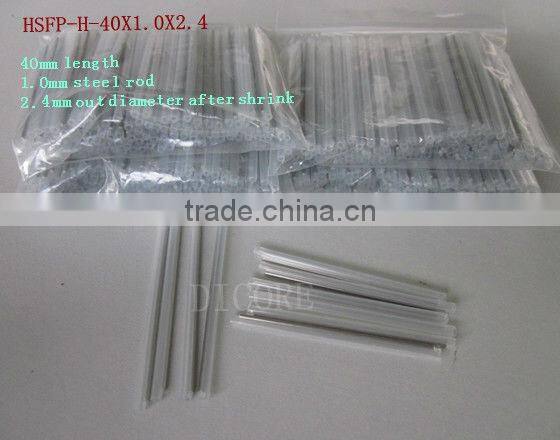

HSFP-H-40x1.0x2.4

2.4

40

1.5

40

1.0

35

HSFP-H-25x1.0x2.4

2.4

25

1.5

25

1.0

20

HSFP-H-40x0.8x2.2

2.2

40

1.5

40

0.8

40

HSFP-H-25x0.8x2.2

2.2

25

1.5

25

0.8

25

HSFP-H-18x0.8x2.2

2.2

18

1.5

18

0.8

18

HSFP-H-40x0.5x1.3

1.3

40

0.35

40

0.5

40

HSFP-H-25x0.5x1.3

1.3

25

0.35

25

0.5

25

HSFP-H-18x0.5x1.3

1.3

18

0.35

18

0.5

18
