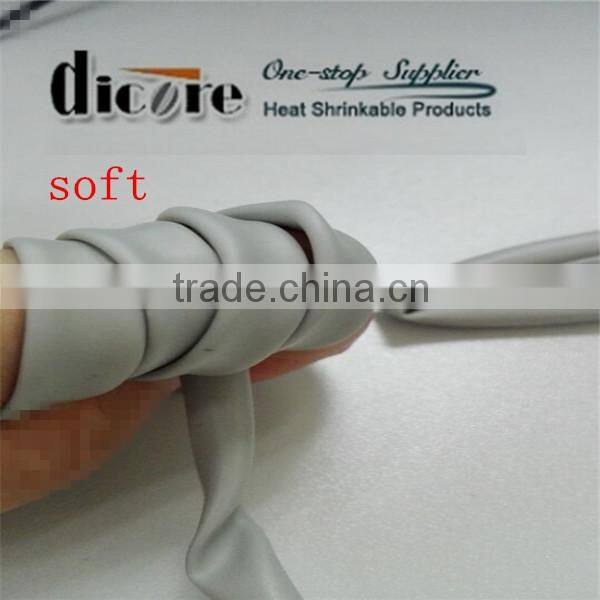

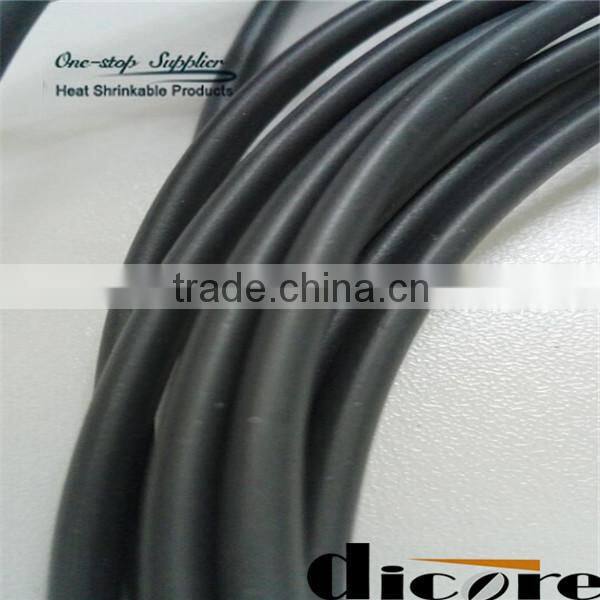

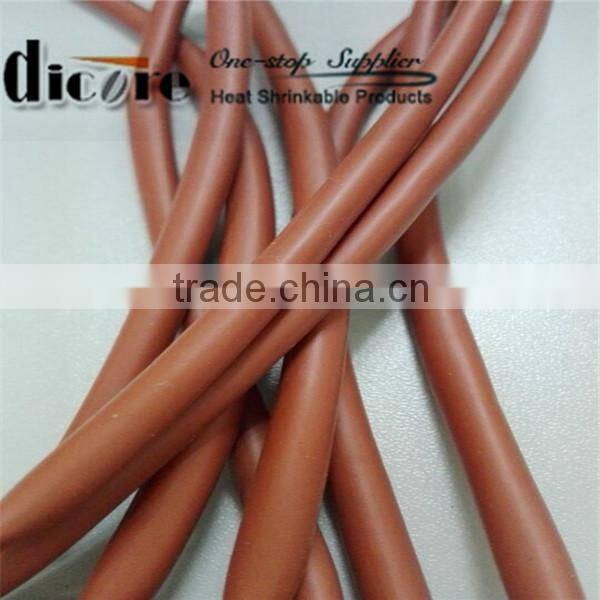

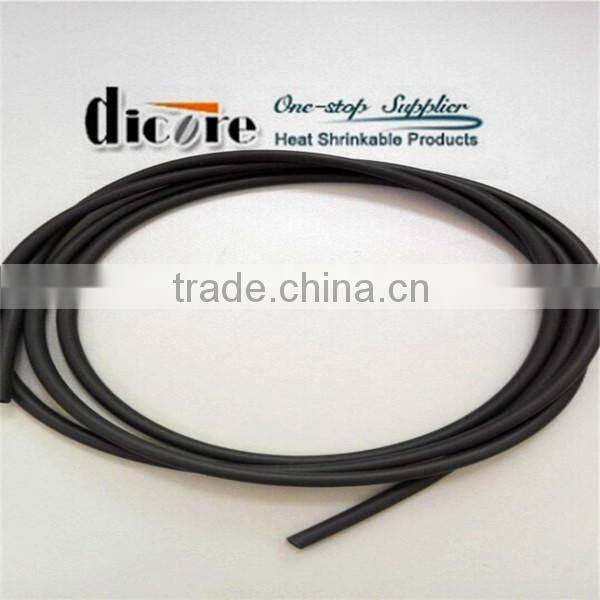

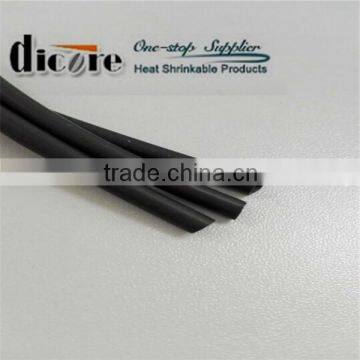

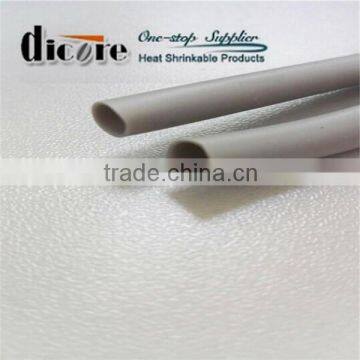

Heat shrinkable elastic silicone rubber tube 8.0mm /tube 89 /tube exercise
Model | HSST |
Material | Silicone Rubber heat shrink tubing |
Shrink ratio | 1.7:1 |
Tubing diameter | 1.0mm to 110mm |
Standard color | Black, red, gray |
1.Flexible electrical insulation sleeving and cable harnessing. | |
Property:
Specification:
Size (mm) | Before Shrinking | After Shrinking
| ||
I.D.(mm) | Thickness(mm) | I.D.(mm) | Thickness(mm) | |
φ1.0 | 1.0 | 0.5±0.1 | 0.6 | 0.7±0.1 |
φ1.5 | 1.5 | 0.5±0.1 | 0.8 | 0.7±0.1 |
φ2.0 | 2.0 | 0.5±0.1 | 1.2 | 0.7±0.1 |
φ2.5 | 2.5 | 0.5±0.1 | 1.5 | 0.7±0.1 |
φ3.0 | 3.0 | 0.5±0.1 | 1.8 | 0.7±0.1 |
φ3.5 | 3.5 | 0.5±0.1 | 2.0 | 0.7±0.1 |
φ4.0 | 4.0 | 0.5±0.1 | 2.5 | 0.7±0.1 |
φ4.5 | 4.5 | 0.5±0.1 | 2.8 | 0.7±0.1 |
φ5.0 | 5.0 | 0.5±0.1 | 3.0 | 0.7±0.1 |
φ6.0 | 6.0 | 0.5±0.1 | 3.8 | 0.7±0.1 |
φ7.0 | 7.0 | 0.5±0.1 | 4.0 | 0.7±0.1 |
φ8.0 | 8.0 | 0.5±0.1 | 4.8 | 0.7±0.1 |
φ9.0 | 9.0 | 0.5±0.1 | 5.0 | 0.7±0.1 |
φ10 | 10.0 | 1.0±0.1 | 6.5 | 1.7±0.1 |
φ12 | 12.0 | 1.0±0.1 | 7.0 | 1.7±0.1 |
φ15 | 15.0 | 1.0±0.1 | 9.0 | 1.7±0.1 |
φ18 | 18.0 | 1.0±0.1 | 11.0 | 1.7±0.1 |
φ20 | 20.0 | 1.0±0.1 | 13.0 | 1.7±0.1 |
φ25 | 25.0 | 1.0±0.1 | 15.0 | 1.7±0.1 |
φ30 | 30.0 | 1.0±0.1 | 18.0 | 1.7±0.1 |
φ35 | 35.0 | 1.0±0.1 | 20.0 | 1.7±0.1 |
φ40 | 38.0 | 1.0±0.1 | 25.0 | 1.7±0.1 |
φ50 | 47.0 | 1.0±0.1 | 30.0 | 1.7±0.1 |
φ60 | 57.0 | 1.5±0.1 | 38.0 | 2.5±0.1 |
φ70 | 67.0 | 1.5±0.1 | 45.0 | 2.5±0.1 |
φ80 | 77.0 | 1.5±0.1 | 48.0 | 2.5±0.1 |
φ90 | 87.0 | 1.5±0.1 | 52.0 | 2.5±0.1 |
φ100 | 97.0 | 1.5±0.1 | 57.0 | 2.5±0.1 |
φ110 | 107.0 | 1.5±0.1 | 63.0 | 2.5±0.1 |
Heat shrinkable elastic silicone rubber tube 8.0mm /tube 89 /tube exercise
Heat shrinkable elastic silicone rubber tube 8.0mm /tube 89 /tube exercise
