10 100 1000M Gigabit SNMP/WEB Managed Fiber Media Converter Quality Choice

Name: 10 100 1000M Gigabit SNMP/WEB Managed Fiber Media Converter Quality Choice
Brand: HiOSO
Availability: InStock

FOB Price

USD $1 - $300 / Piece

1 Piece(Min.Order)

Supply Ability 30000 Piece / Pieces per Month
Port shenzhen
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	HiOSO
Model Number	FC830AGM

Product Description

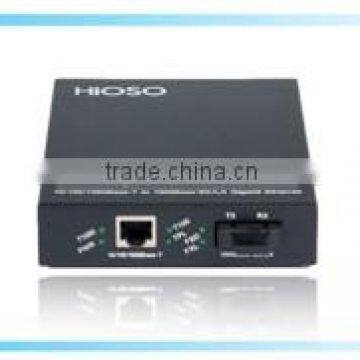

10 100 1000M Gigabit SNMP/WEB Managed Fiber Media Converter

Overview

HiOSO FC830AGM Series belongs to 10/100/1000M auto-adapted Ethernet Fiber Media Converter (Or called Photoelectrical Conversion) with management function, which supports SNMP Protocol,remote Telnet management,Com port management and software upgrade. It can supervise the working condition and configure the mode of each local media converter in the slot and remote media converter connected to the other side.

10/100/1000M Ethernet Fiber Converter is fully in compliance with 10Base-T, 100Base-TX, 1000Base-T, 1000Base-X and IEEE 802.3x International Standard etc. It can completely be cooperated with Network Card, Repeaters, HUB and SWITCH etc made by other suppliers, and also provide cost-efficient hardware support to the information transmission of Broadband private network and Fiber Optical citywide LAN.

Feature

lSupports SNMP management, Web address management and Telnet management

lEnable/Disable optical link-loss alarm function

lFour transmission modes are selectable

lComply with IEEE 802.3μ 100BASE TX, IEEE802.3 10BASE-T standard and 1000Base-T/FX

lComply with IEEE 802.1Q VLAN protocol

lSupport 10/100/1000M, Full/Half duplex auto-negotiation

lSupport MDI/MDIX auto sense

lSupport transmission distance of up to 120km (Dual-fiber)

lSupport over-size packets of up to 10240 Byte

lSupport hot-swappable

lThe cards work as standalone and rack-based Media Converters

lSingle-fiber and dual-fiber devices are available

Technical Data

- Mechanical Parameters -

Size	32mm(H)x 165mm(W)x 128mm(D)
Operating temperature	-10~+55°C
Storage temperature	-40~+70°C
Power supply	AC220V / DC-48V

- Optical Parameters -

Multimode Fiber: 62.5/125, 50/125, 100/140μm
MM2km orMM5km	Output power: -20~-18dBm
	Receiving sensitivity: <-31dBm
	Distance: 0~2km or 0~5km
	Connector: SC(standard)/FC(optional) /ST(optional)
	Type: dual-fiber
	Wavelength: 850nm/1310nm
Single-mode Fiber: 9/125, 8.3/125, 8.7/125 or 10/125μm
25km	Distance: 0~25km
	Output power:-15~-8dBm (dual-fiber),-14~-8dBm (single-fiber)
	Receiving sensitivity: <-34dBm(dual-fiber), <-33dBm(single-fiber)
	Connector: SC(standard)/FC(optional) /ST(optional)
	Type: single-fiber / dual-fiber
	Wavelength: 1310nm/1550nm(single-fiber),1310nm(dual-fiber)
40km	Distance: 0~40km
	Output power: -10~-5dBm (dual-fiber),-9~-5dBm (single-fiber)
	Receiving sensitivity: < -36dBm(dual-fiber),<-33dBm(single-fiber)
	Connector: SC(standard)/FC(optional) /ST(optional)
	Type: single-fiber / dual-fiber
	Wavelength :1310nm/1550nm(single-fiber),1310nm(dual-fiber)
60km	Distance: 0~60km (when less than 15km, use attenuator)
	Output power:-5~0dBm(dual-fiber),-6~0dbm(single-fiber)
	Receiving sensitivity: < -36dBm
	Connector: SC(standard)/FC(optional)
	Type: single-fiber / dual-fiber
	Wavelength: 1310nm/1550nm(single-fiber),1310nm(dual-fiber)
80km	Distance: 0~80km (when less than 15km, use attenuator)
	Output power:-8~-2dBm(dual-fiber),-3~3dbm(single-fiber)
	Receiving sensitivity: < -36dBm
	Connector: SC(standard)/FC(optional)
	Type: single-fiber / dual-fiber
	Wavelength: 1310nm/1550nm(single-fiber),1550nm(dual-fiber)
100km	Distance: 0~100km (when less than 15km, use attenuator)
	Output power:-6~-1dBm
	Receiving sensitivity: < -38dBm
	Connector: SC(standard)/FC(optional)
	Type: single-fiber / dual-fiber
	Wavelength: 1310nm/1550nm(single-fiber),1550nm(dual-fiber)
120km	Distance: 0~120km (when less than 15km, use attenuator)
	Output power:-5~0dBm
	Receiving sensitivity: < -38dBm
	Connector: SC(standard)/FC(optional)
	Type: dual-fiber
	Wavelength: 1550nm
