YANGFA Module Mounted Ip65 Waterproof Solar Led Street Light AS01 10W

YANGFA Module Mounted Ip65 Waterproof Solar Led Street Light AS01 10W photo-1

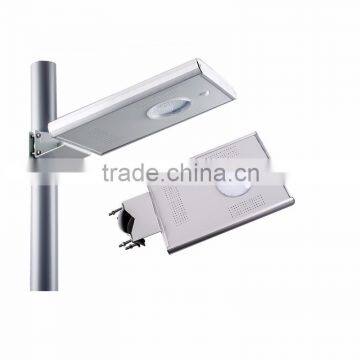

YANGFA Module Mounted Ip65 Waterproof Solar Led Street Light AS01 10W photo-2
YANGFA Module Mounted Ip65 Waterproof Solar Led Street Light AS01 10W photo-3
YANGFA Module Mounted Ip65 Waterproof Solar Led Street Light AS01 10W photo-4

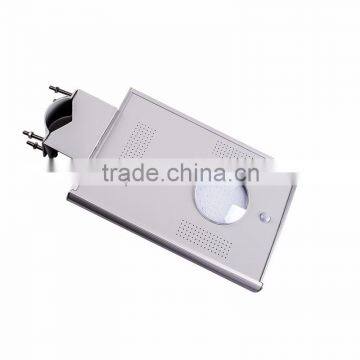

YANGFA Module Mounted Ip65 Waterproof Solar Led Street Light AS01 10W photo-5
YANGFA Module Mounted Ip65 Waterproof Solar Led Street Light AS01 10W photo-6
US$ 81.23 - 85.29 MOQ: 2 Pieces
Key Specifications
Get Latest Price
LED Light Source:
Epistar
Input Voltage(V):
12.8V 3AH
Lamp Power(W):
10
Payment & Shipping
Payment Methods:
Port of Shipment:
Zhongshan port
Delivery Detail:
Delivery time depends on order quantity.
LED Light Source Epistar
Input Voltage(V) 12.8V 3AH
Lamp Power(W) 10
Lamp Luminous Flux(lm) 1000
Lamp Luminous Efficiency(lm/w) 100
Color Temperature(CCT) Cool White
Working Temperature(℃) -40, 45
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum
IP Rating IP65
Certification CCC, CE, CQC
Warranty(Year) 3
Place of Origin Guangdong, China
Brand Name YANGFA
Model Number YANGFA-AS01 10W

YANGFA module mounted ip65 waterproof solar led street light AS01 10W

1. Elegant Integrated Design,Aluminum alloy case.

2. 18V 16W Mono-crystalalline & Replacable Lithium battery,Simple installation.
3. Intelligent lighting control system:
   1) Customizable lighting time: 1-15 lighting hrs & 1-5 lighting periods according customer choice;
   2) Intelligent lighting brightness: The controller will control the brightness of the LED lamp according to the battery level;

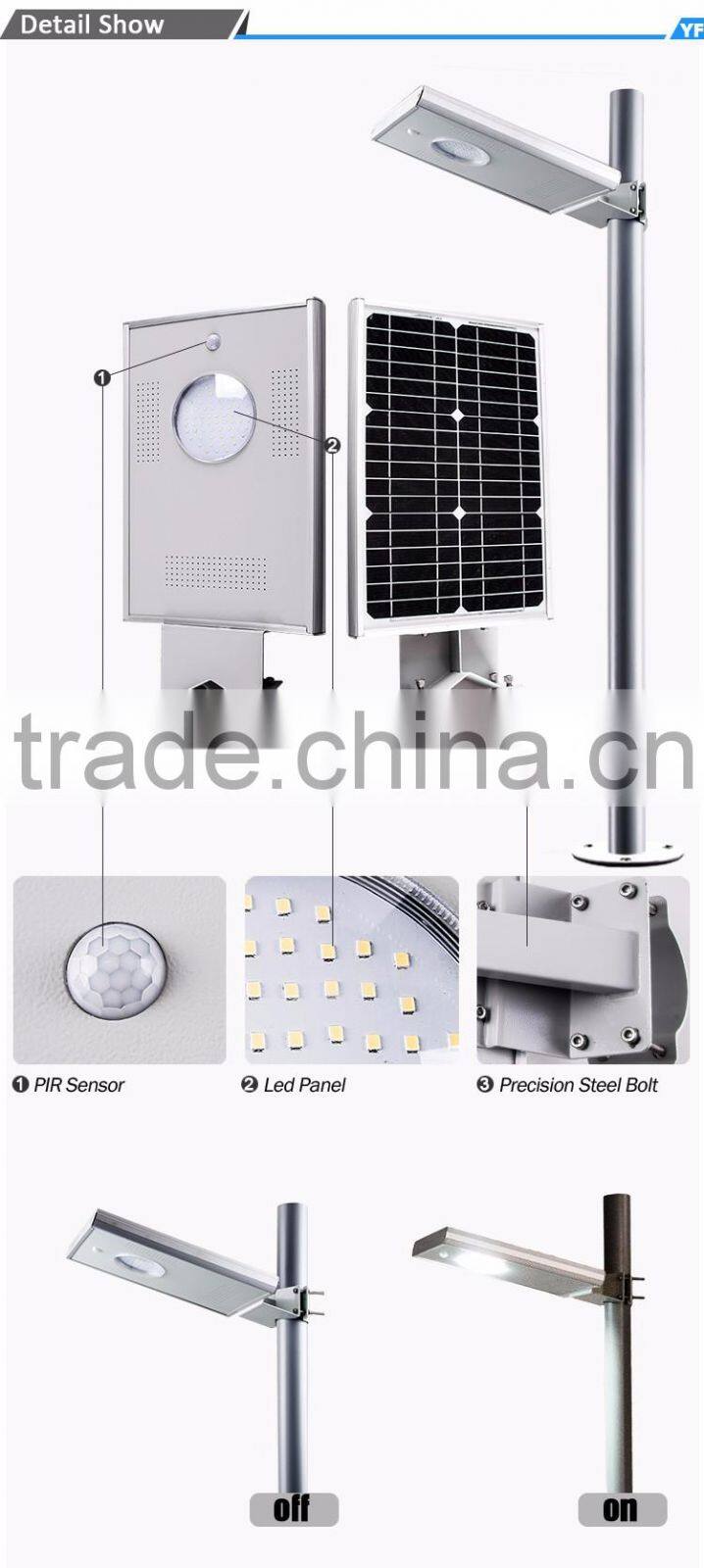

   3)Light sensor:AUTO ON/OFF ; PIR motion sensor: 7-10m detecting distance,120°wide detecting angle.

4. Support 3 cloudy or raining days' lighting

YANGFA module mounted ip65 waterproof solar led street light AS01 10W

YANGFA module mounted ip65 waterproof solar led street light AS01 10W
NO.YANGFA-AS01 10W
Power:10W
Color Temperature:6000-6500K
LED Brand:Epistar
LED TYPESMD 2835
LED Quantity:60
Lamp Efficiency:>100 lm/w
CRI:Ra>70
Solar Panel:18V 16W Mono-crystalalline
Battery Type:LiFePO4 12.8V 3AH
Charging Time:6-10 hours
Discharging Time:10-12 hours

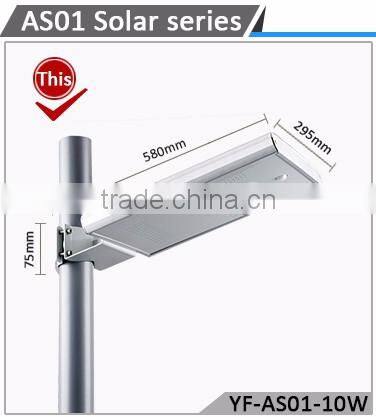

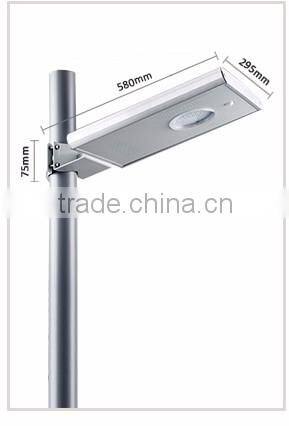

Product Dimension:580*295*75
Packing Dimension:650*360*140
Product Weight4.74KG
Material:Aluminum Alloy
Install Height:3-5 m
Warranty:3 years



YANGFA module mounted ip65 waterproof solar led street light AS01 10W

YANGFA module mounted ip65 waterproof solar led street light AS01 10W

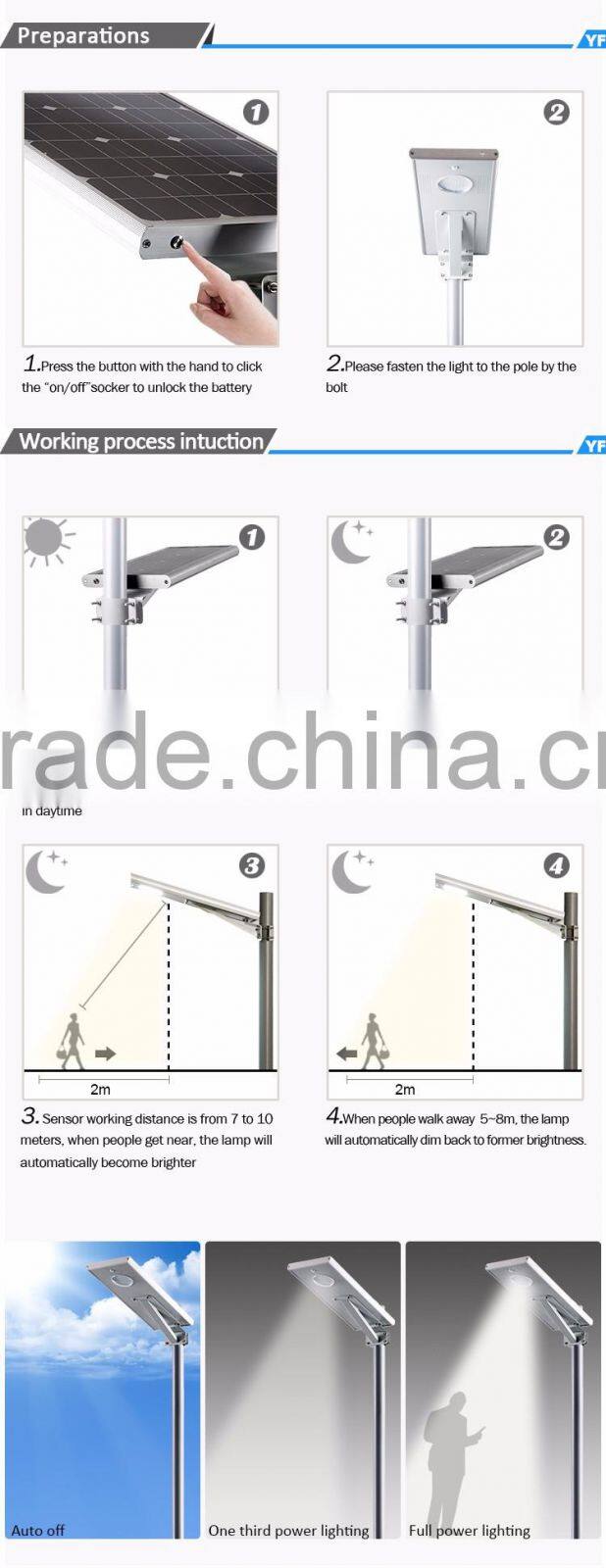

Intelligent control system :
·The controller will control the brightness of the LED lamp according to the battery level.
·Example:Battery level at 50%, the lamp will be automatically transferred to 50% brightness.
·Battery level at 25%, the lamp will be automatically transferred to 25% brightness.
·For sometimes it may be cloudy days in a row, so the power battery gets is limited. To make the lamp

 light as long as it can, the intelligent control system is one of big advantages of our integrated solar power

 LED lamps.

YANGFA module mounted ip65 waterproof solar led street light AS01 10WYANGFA module mounted ip65 waterproof solar led street light AS01 10W

YANGFA module mounted ip65 waterproof solar led street light AS01 10WYANGFA module mounted ip65 waterproof solar led street light AS01 10W

YANGFA module mounted ip65 waterproof solar led street light AS01 10WYANGFA module mounted ip65 waterproof solar led street light AS01 10W
YANGFA module mounted ip65 waterproof solar led street light AS01 10W
YANGFA module mounted ip65 waterproof solar led street light AS01 10W
YANGFA module mounted ip65 waterproof solar led street light AS01 10W
YANGFA module mounted ip65 waterproof solar led street light AS01 10W

YANGFA module mounted ip65 waterproof solar led street light AS01 10W
