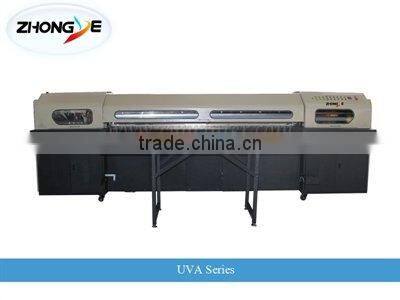

2.5m Large Format digital UV Printer:UVA-EP2500

Specifications

2.5M large format solvent printer
1,4/5/7/10(spt255) printhead or 1/2Epson head
2, panasonic or Fuji motor
3, real 1440dpi

Name:	UVA-EP2500
Class:	UVA series
Print technology:	Drop-on-demand Piezo electric
Print head:	1/2(Epson DX5)
Print width:	2.5m
Print height:	8cm
Resolution:	1440dpi max
Speed:	1head: 2pass 25sqm/h; 4pass 16sqm/h; 6pass 10sqm/h 2heads: 2pass 50sqm/h; 4pass 32sqm/h; 6pass 20sqm/h
Locating mode:	Raster /servo
Color:	CMYK W
Media width:	2.5
Media handle:	Roll to roll Sheet to sheet
Media types:	KT board;PVC board;Plexiglass board;glass board;ceramic board,tile;metal board;leather and all the roll to roll material like flex banner,mesh,one way vision,vinyl etc
Drying system:	Uv lamp
File format:	TIFF,Postscript 3,JPEG,EPS,PDF
Working process:	Printmon software for windows xp
Rip:	Photoprint /maintop
Power supply:	50hz/60hz 220v(10%)20A
Operation environment:	(Temperature )18-26 (Humidity )40%-70%
Dimension:	4.6m*1.6m*1.4m
Weight:	1200KG



UV A series printer can print Both ROLL TO ROLL and Sheet to Sheet, with feed in and take up rollers. Media move on front and back rollers flatbed and the wide belt main flatbed to finish printing.Print height r4each 8 cm Max.



Zhongye UV series UV flatbed printer adopts Japanese series print heads, equipped with double servo drivers, 5cm max printing height. Realize the formless, non-contacting, and real-time printing on different kinds of sheet materials and roll materials, such as KT board, PVC board, plexiglass, glass, ceramic, metal, and leather etc. It replace the roll of traditional screen printing technology, and brings to customers the individualized, small-lot, various, and multicolored products, with the output features of speediness, high efficiency and flexibility guaranteed.

WARRANTY:We promise that we can guarantee to keep the whole printer in
good repair for one year,and no charge for repairing and adjusting,but
cunstomer should pay the airplane ticket,room and food for our
technician.
