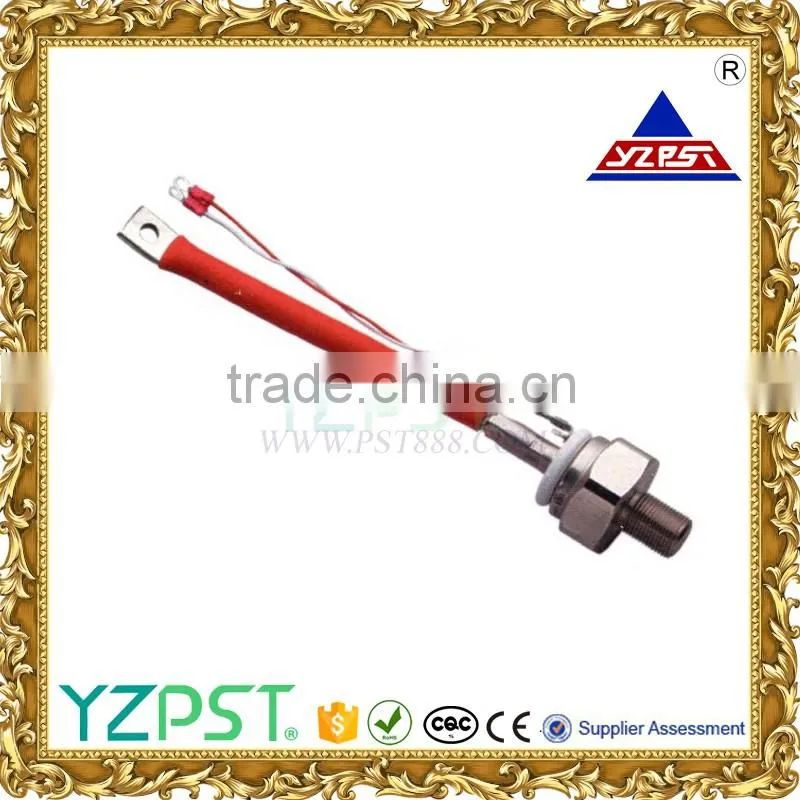

Fast recovery thyristor 800V
- 1000 Piece / Pieces per Month
- shanghai
- T/T Credit Card
You May Like
Product Details
Place of Origin | Jiangsu, China | Brand Name | YZPST | |
Model Number | PST-DK13_800V |
Product Description
Fast recovery thyristor
PST-DK13_800V
Symbol | Parameter | Values | Units | Test Conditions | |
ON-STATE | |||||
ITAV | Mean on-state current | 70 | A | Sinewave,180° conduction,Tc=80°C | |
ITRMS | RMS value of on-state current | 110 | A | Nominal value | |
ITSM | Peak one cycle surge (non repetitive) current |
1200 |
A | 10.0 msec (50Hz), sinusoidal wave- shape, 180o conduction, Tj = 125 °C | |
I2t | I square t | 7.2 | KA2s | 8.3 msec and 10.0 msec | |
IL | Latching current | 200- | mA | VD = 12 V; RL= 12 ohms | |
IH | Holding current | 150 | mA | VD = 12 V; I = 2.5 A | |
VTM |
Peak on-state voltage |
2.35 |
V | ITM = 300 A; Duty cycle £ 0.01%; Tj = 25 °C | |
di/dt |
Critical rate of rise of on-state current |
non-repetitive |
- |
A/ms |
Gate drive 20V, 20Ω, tr≤1μs, Tj=Tjmax, anode voltage≤80% VDRM |
repetitive | 200 | ||||
BLOCKING | |||||
VDRM VRRM | Repetitive peak off state voltage Repetitive peak reverse voltage |
800 |
V |
| |
VDSM VRSM | Non repetitive peak off state voltage Non repetitive peak reverse voltage |
900 |
V |
| |
IDRM IRRM | Repetitive peak off state current Repetitive peak reverse current |
15 |
mA |
Tj = 125 °C ,VRRM VDRM applied | |
dV/dt | Critical rate of voltage rise | 200 | V/ms | TJ=TJmax, linear to 80% rated VDRM |
