thyristore manufacturers 800V
- 10000 Piece / Pieces per Month
- SHANGHAI
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | YZPST | |
| Model Number | KK165-800/2 |
Product Description

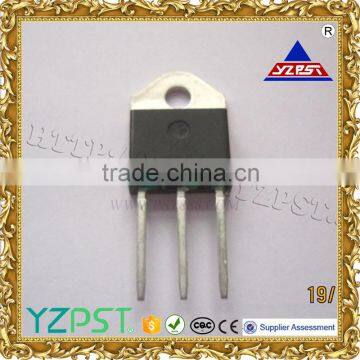

Power thyristor inverter
KK165-800
POWER THYRISTOR FOR INVERTER APPLICATIONS
Inverter Grade Thyristors Version Type :KK165-1000 TOP3
Features
• RoHS Compliant
• All diffused design
• Glass-passivated chip
• Guaranteed high dV/dt
• Guaranteed high dI/dt
• Highsurge current capability
• Low thermal impedance
• Highspeed performance , tq is less than 50μSec
• Electrically-isolatedpackage
• High voltage capability — 200 V to 1000 V
Typical Applications
• Inverters
• Choppers
• Induction heating
• All types of force-commutated converters
MAIN FEATURES
Symbol | Value | Unit |
IT | 165 | A |
VDRM/RRM | 600 / 800 / 1000 | V |
VTM | 1.5 | V |
ABSOLUTE MAXIMUM RATINGS
Parameter | Symbol | Value | Unit | |
Storage junction temperature range |
Tstg |
- 40 to +150 | ℃ | |
Operrating junction temperature range |
Tj |
- 40 to +125 | ℃ | |
Repetitive Peak Off-state Voltage |
Tj=25°C | VDRM | 600 / 800 /1000 |
V |
Repetitive Peak Reverse Voltage |
Tj=25°C |
VRRM | 600 / 800 /1000 | |
Non repetitive Surge Peak Off-state Voltage |
tp=10ms,Tj=25°C | VDSM | VDRM+100 |
V |
Non repetitive Peak Reverse Voltage | VRSM | VRRM+100 | ||
RMS on-state current (full sine wave) | TO - P3 Tc=80°C | IT | 165 | A |
ELECTRICAL CHARACTERISTICS(Tj=25°C unless otherwise specified)
1. We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items).
2. If the items are defective, please notify us within 3 days of delivery.
3. Any items must be returned in their original condition to qualify for a refund or replacement.
4. We can ship to you by FedEx/UPS/DHL/TNT/EMS/HK Post. Please contact us directly and we will use your preferred ways.
5. We are not responsible for any accidents, delays or other issues caused by the forwarder.
6. Any import fees or charges are on the buyer's account
1. With regard to your inquiry and quotation of products, we will give you the detailed reply within 24 hours.
2.we provide warranty for all the goods from us.
3. We're in this field more than 13 years. If there's any problem, please contact with us,we'll provide suggestion from our engineer to help you solve problem.
4. We have large warehouse for goods. Keep lots of goods in warehouse, so could promise fast delivery.
5. The price of sending samples is the same. We quate FOB price. You need to bear the freight after it boarded the ship freight.
NAME :John Chang AND Sam Zhou
SKYPE: yzforever0313
TEL: 0086-514-87782298 87782296
FAX: 0086-514-87782297
URL:WWW.YZPST. NET / WWW.PST888.COM
ADD: Room303 Weiheng Building NO.184 Wangyue RD Yangzhou Jiangsu, China
All emails will be replied within 24 hours. Please leave a message in the Trade Manager. Thank you for ordering and hope you enjoy your purchase here. You commen ts are always welcomed and very important in our long-term business corporation.
We sincerely hope to cooperate with you.For more details, please contact me!
