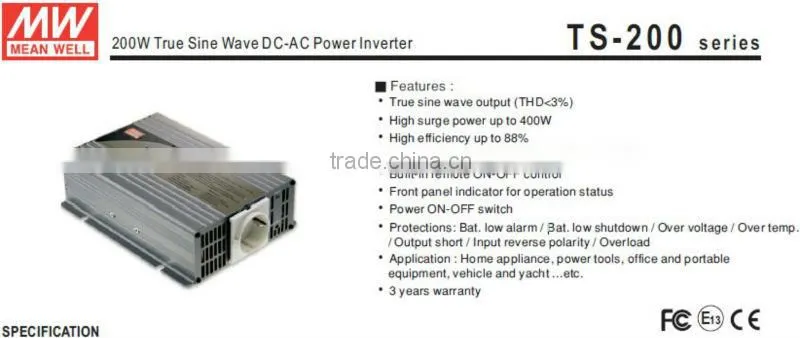

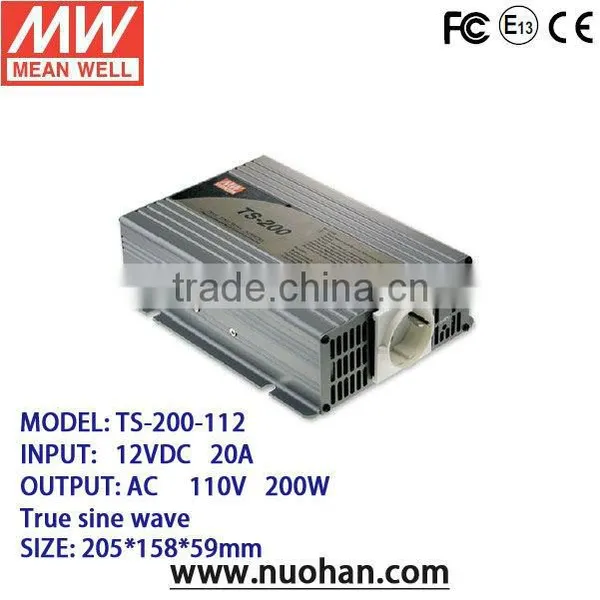

Meanwell 200W True Sine Wave DC-AC Power Inverter ac inverter

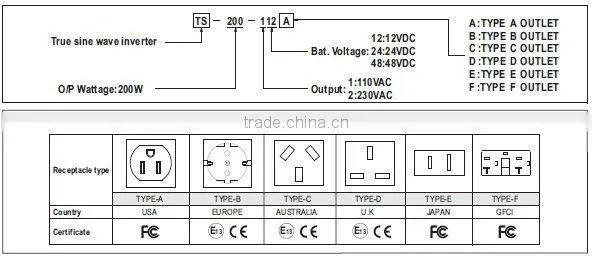

MODEL

TS-200-112

OUTPUT

RATED POWER

200W

MAXIMUM OUTPUT POWER

230W for 180 sec. / 300W for 10 sec. / surge power 400W for 30 cycles(typ.)

AC VOLTAGE

Factory setting set at 110VAC

100 / 110 / 115 / 120VAC selectable by setting button S.W

FREQUENCY

60 ±0.1Hz   50/60Hz selectable by setting button

WAVEFORM

True sine wave (THD<3%) at rated input voltage

AC REGULATION   Note.1

±3.0% at rated input voltage

FRONT PANEL INDICATOR

Operation status ; Green : normal, Orange(flashing) : remote control OFF, Red : abnormal

INPUT

BAT. VOLTAGE

12V

VOLTAGE RANGE (Typ.) Note.3

10.5 ~ 15VDC

DC CURRENT (Typ.)

20A

NO LOAD CURRENT DRAW (Typ.)

1.25A

OFF MODE CURRENT DRAW

≤1mA

EFFICIENCY (Typ.)     Note.1

86%

BATTERY TYPES

Open & sealed Lead Acid

BATTERY INPUT PROTECTION

FUSE

30A*2

BAT. LOW ALARM

11.3± 4%

BAT. LOW SHUTDOWN

10.5± 4%

BAT. POLARITY

By internal fuse open

OUTPUTPROTECTION

OVER TEMPERATURE

85°C ± 5°C

Protection type : Shut down o/p voltage, re-power on to recover; by internal RTH1 detect power transistor

OUTPUT SHORT

Protection type : Shut down o/p voltage, re-power on to recover

OVER LOAD (Typ.)

105 ~ 115% load for 180 sec., 115% ~ 150% load for 10 sec.

Protection type : Shut down o/p voltage, re-power on to recover

GFCI PROCTECTION

Optional (Only type F)

FUNCTION

REMOTE CONTROL

Open : Normal work ; Short : Remote off

ENVIRONMENT

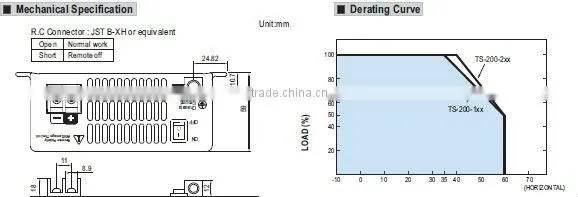

WORKING TEMP.

-10~+35°C at 100% load   +60°C at 50% load

WORKING HUMIDITY

20%~90% RH non-condensing

STORAGE TEMP., HUMIDITY

-30~+70°C / -22~ +158 F, 10~95%RH

VIBRATION

10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY&EMC

SAFETY STANDARDS

Design refer to UL458

LVD

None

WITHSTAND VOLTAGE

Bat. I/P - AC O/P:3.0KVAC AC O/P - FG:1.5KVAC

ISOLATION RESISTANCE

Bat. I/P-AC O/P, AC O/P-FG:100M Ohms / 500VDC / 25¢J/ 70% RH

EMC EMISSION

Compliance to FCC class A

EMC IMMUNITY

None

OTHERS

MTBF

106.2K hrs min.   MIL-HDBK-217F (25°C)

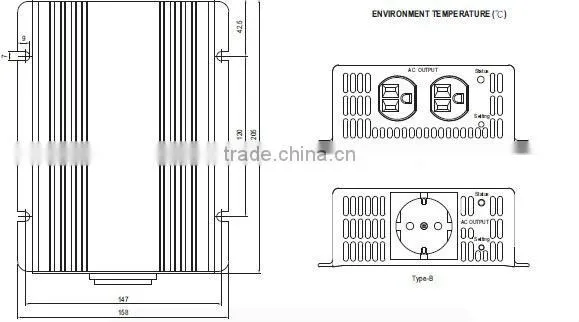

DIMENSION

205*158*59mm (L*W*H)

PACKING

1.63Kg; 6pcs/10.8Kg/1.44CUFT

NOTE

1.Efficiency & AC regulation is tested by 200W, linear load at 13V/26V/52V input voltage.

2.All parameters not specified above are measured at rated load, 25 of ambient temperature.

3.The tolerance of each voltage value by models is:112/212→± 0.5V;124/224 ±1V;148/248±2V
