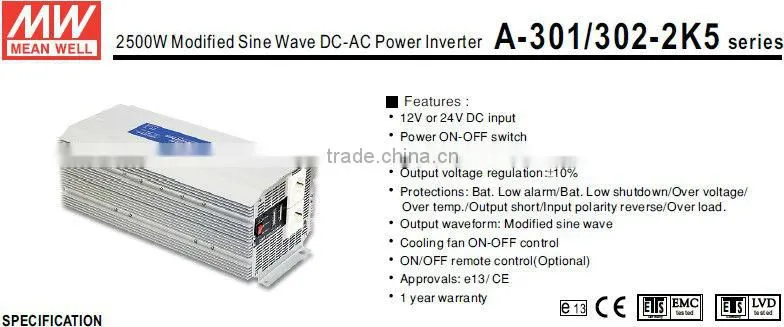

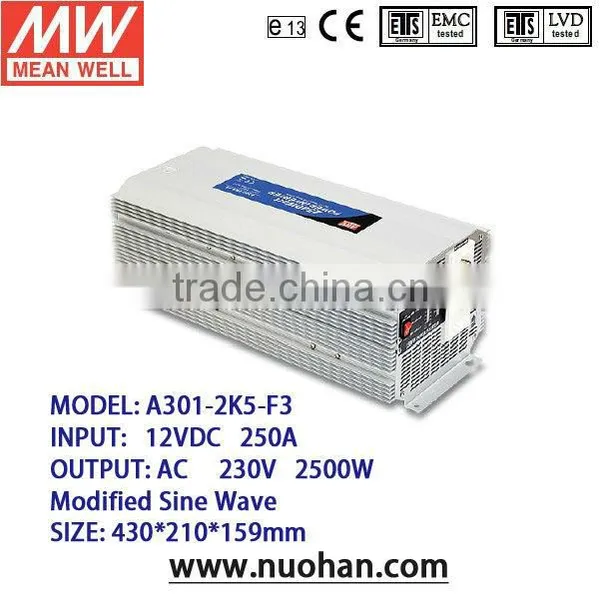

Mean well 2500W Modified Sine Wave DC AC Power Inverter frequency inverter 2500w inverter

ORDER NO.

A301-2K5-F3

OUTPUT

SAFETY MODEL NO.

A-300-2K5W

AC VOLTAGE

230V

RATED POWER

2500W

SURGE POWER

5000W

WAVE FORM

Modified Sine Wave

FREQUENCY

50Hz ±1%

AC REGULATION

±10%

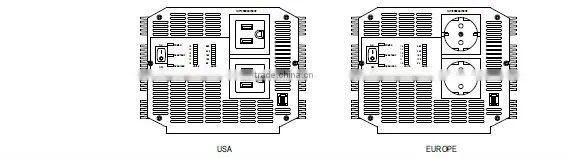

STANDARD RECEPTACLES

TYPE-3* 2ea

LED INDICATOR

Green LED for power on; Yellow LED for O.T.P.; Red LED for O.L.P.; Battery V/A meter

INPUT

DC CURRENT

250A

NO LOAD CURRENT DRAW

0.9A

DC VOLTAGE

12V

VOLTAGE RANGE

10~ 15VDC

EFFICIENCY (Typ.)

82%

DC CONNECTOR

None

FUSE

30 A * 12

PROTECTION

BAT. LOW ALARM

10± 0.5V

BAT. LOW SHUTDOWN

9.5 ± 0.5V

OVER LOAD

>2700W shut down o/p voltage, re-power to recover

OVER VOLTAGE

15~17V

OVER TEMPERATURE

60± 5°C / 140± 9F

OUTPUT SHORT

Shut-off

BAT. POLARITY

By fuse open

ENVIRONMENT

WORKING TEMP.

0~25°C at 100% load

WORKING HUMIDITY

20%~90% RH non-condensing

STORAGE TEMP., HUMIDITY

-30~+70°C / -22~ +158 F, 10~95%RH

TEMP. COEFFICIENT

±0.05%/°C (0~50°C)

SAFETY&EMC

ISOLATION RESISTANCE

I/P-O/P: 100M Ohms / 500VDC / 25°C/ 70% RH

EMI CONDUCTION & RADIATION

Compliance to EN55022 class B, 72/ 245/ CEE, 95/ 54/ CE

EMC IMMUNITY

Compliance to EN61000-4-2,3

LVD

Compliance to EN60950

OTHERS

MTBF

37Khrs min. MIL-HDBK-217F (25°C)

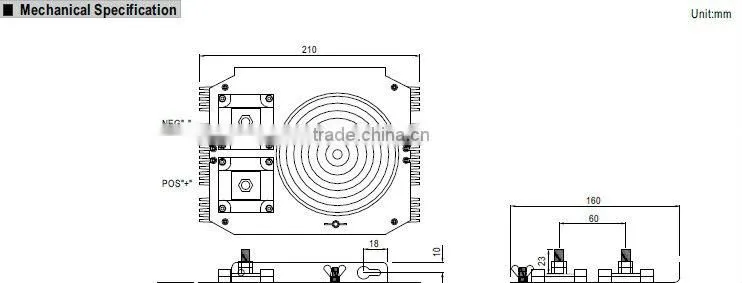

DIMENSION

430*210*159mm (L*W*H)

PACKING

8.7kg ; 2pcs / 19kg / CARTON

COOLING

>40°C (NTC) fan on

APPLICATIONS

Home appliance, Power tools, Office and Portable equipment and Vehicle ...etc.
