China top quality black coal briquette machine with low investment
- 200 Set / Sets per Month
- qingdao tianjing/shanghai or as your request
- T/T Credit Card
- Diameter 10-50mm coal ball briquette press machine for sale
- Over 95% briquetting rate white coal briquette manufacturing machine for export sale
- China professional coal briquette press machine with factory price for sale
- 2016 best-selling artificial coal briquette making machine with top quality
- End users highly-speaking coal briquette press machine with big profit
- Superior briquetting quality coal dust briquette machine plant
Product Details
Condition: | New | Production Capacity: | 1-30t/h | Motor Type: | AC Motor |
Power(W): | 5.5-132KW | Place of Origin: | Henan, China | Brand Name: | Sharing machine |
Model Number: | 290/360/430/500/650/750/850/1000 | Dimension(L*W*H): | Defined | Certification: | CE ISO |
Warranty: | 12 Months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
China top quality black coal briquette machine with low investment
1. Introduction of black coal briquette machine
coal briquette press machine for ball shape is applicable for making small tablets,cylinder shape
and cubic shape from coal and charcoal dust.The output briquette is in good density,perfectshape,
and good appearance.Meanwhile,it is easy for combustion,no smell and last longer whenburning.
This machine is one kind of the Mechanical-pressure type outomatic tablet machine.It can press a
variety of powder materials into round,square and other special-shaped tablets. It is widely used
in refractory,power plants,metallurgy,chemical,energy,heating industry. Final products with the
character of energy saving,easy to transport,increase of wastes utilization,with good economic and social benefits.
Model | Motor Power | Diameter of Roller | Capacity for Coal | Capacity for Coke | Capacity for Charcoal |
HSR-290 | 7.5 KW | 290 MM | 1-2 t/h | 1-2 t/h | 0.6-0.8 t/h |
HSR-360 | 11 KW | 360 MM | 2-4 t/h | 2-4 t/h | 0.8-1.3 t/h |
HSR-400 | 18.5 KW | 400 MM | 4-6 t/h | 4-6 t/h | 1.3-2 t/h |
HSR-450 | 22 KW | 450 MM | 5-7 t/h | 5-7 t/h | 2-2.8 t/h |
HSR-500 | 37 KW | 500 MM | 6-9 t/h | 6-9 t/h | 2.8-3.5 t/h |
HSR-650 | 45 KW | 650 MM | 10-15 t/h | 10-15 t/h | 3.5-4.5 t/h |
HSR-750 | 55 KW | 750 MM | 15-20 t/h | 15-20 t/h | 4.5-5 t/h |
HSR-850 | 75 KW | 850 MM | 20-25 t/h | 20-25 t/h | 5-8 t/h |

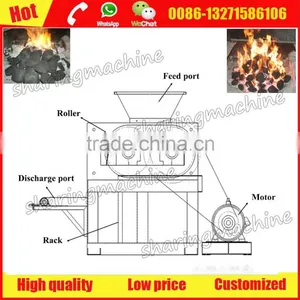

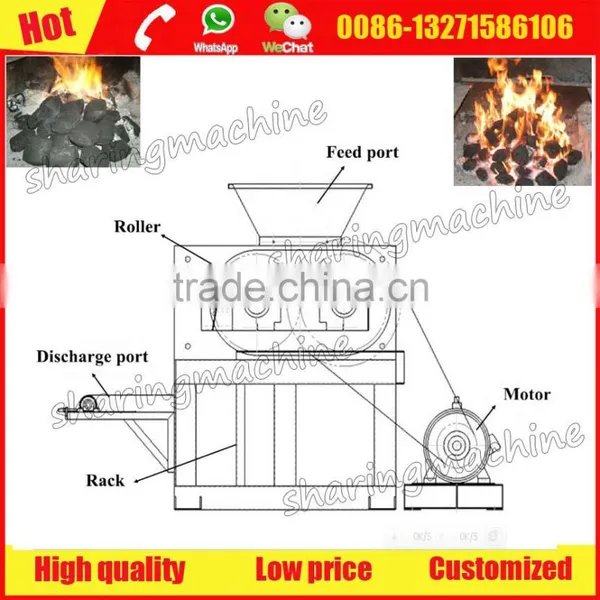

2. Working principle of black coal briquette machine
This series of coal briquette press machine for ball shape will pass the power on to the two pressure roller through the reducer.The two sides and roll rotation, in both the rotating roll,Natural materials to enter the ball roll mode, with the roll rotation, material pressure on a small become larger, When the material to the two rollers rotating line contact point, the pressure of materials has reached the peak. Tremendous pressure in the role of line, the materials become a finished product from the powder ball
3. Raw materials of mine coal briquetting machine :
A: Coal/coke/charcoal powder.
B: Metal powder: Iron powder, magnesium oxide powder, copper powder, chromium ore, lead,
zinc scrap, bauxite, nonferrous metal powder, silicon manganese alloy powder etc.
C. Mineral powder: aluminum powder, toner, gypsum, sludge, desulphurization gypsum powder,etc
4. Characteristics of black coal briquette machine
:
1.The roller is made by hard materials with good wear resistance and long life time.
2.The service life of wearing parts is up to 4000 hours.
3.The machines electricity coal reduce by 60%.
4.The machine is easy to operate and maintain.
5.The molding materials are energy saving, easy to tansport and higher utilization of waste.
6.The final products are smokeless, non-toxic, none peculiar and environmental protection.
7.The end outlet shape of products can be oval, round, square, ball egg-shaped and pillow shaped.
5. Example for briquette production line of black coal briquette machine
:
Ball press machine include coal briquetting machine, charcoal briquetting machine coke briquetting machine, mineral powder briquetting machine,lime briquetting machine.
Raw materials ---crushing---feeding---mixing---briquetting---drying---finished products

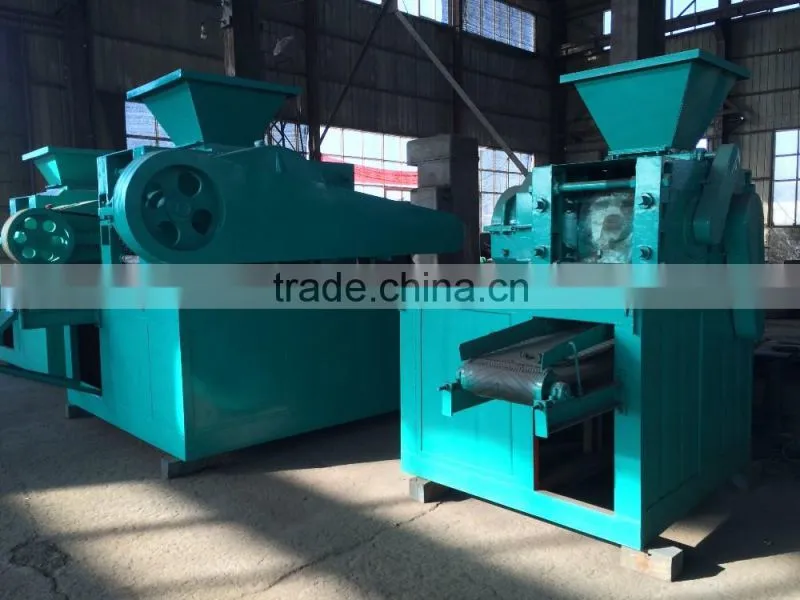

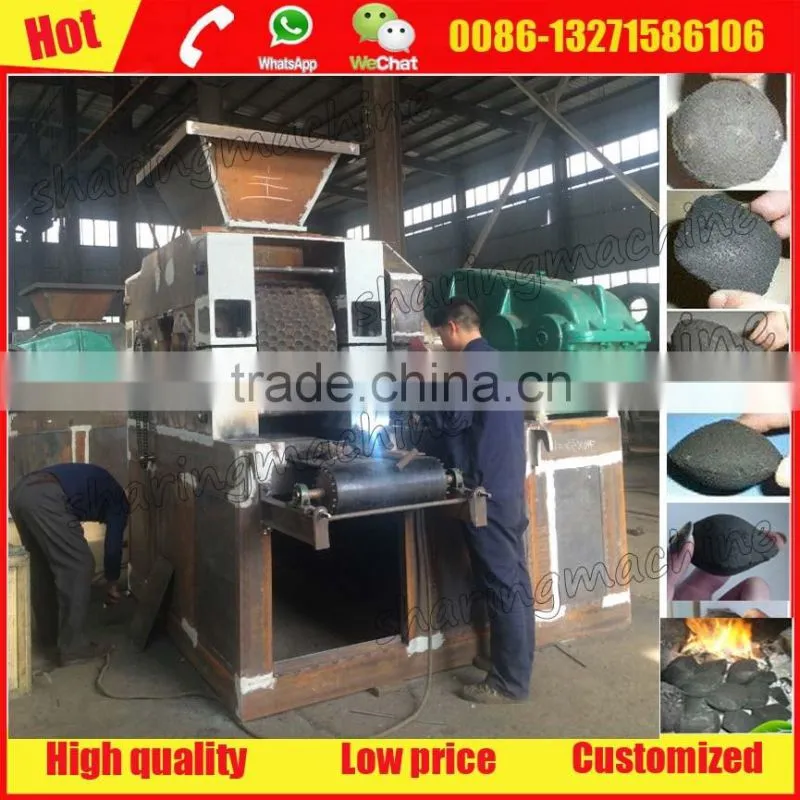

6. Picture images of black coal briquette machine
:
black coal briquette machine
Pre-sales service:
Be a good consultant and assistant to customers, to ensure our customer's investment rewarded with great profit.
1.Enough details about the ores or slags shall be learned, sometimes a test is needed for some ores.
2. Equipment of right model is selected for customers.
3. Customized products and processing flow sheet can be designed and developed to meet customer's special needs,
4. Engineer could be sent to observe customer's working site to come up with an optimized solution accordingly.
On-sales service:
Every customer is respected and convenience and reliability will be provided. We are devoted to helping you to benefit as much as possible.
1. Inspection is a must before delivering of the goods.
2. Assistance to make a construction plan by supplying all drawings and data needed.
3. Most favorable scheme for you with the guaranteed quality.
4. Timely communication to make sure improvement of project and your requirement met.
After-sales service:
1. Installation, adjustment, and testing of equipment is available.
2. Train of technicians and workers at site is promised.
3. Service engineers will not leave until ensuring the whole line running well after the installation & adjustment is finished.
4.If any failure or question about the machines or the processing line, contact us and we are available at any time.
Thanks very much for your time for checking our briquette press machinery!
Have a wonderful day!
