Woodworking Wide Belt Sander Machine

FOB Price

USD $10,000 - $20,000 / Set

1 Set(Min.Order)

Supply Ability 2 Set / Sets per Month
Port Qingdao
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Condition:	New	Type:	Other, Sander, faced board polishing sander	Place of Origin:	Shandong, China
Brand Name:	Hzh	Model Number:	BSG2313/2316	Voltage:	380V
Power(W):	108.5kw	Dimension(LWH):	3540x2700x2210mm	Weight:	10T/14T
Certification:	ISO9001	Warranty:	One year	After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

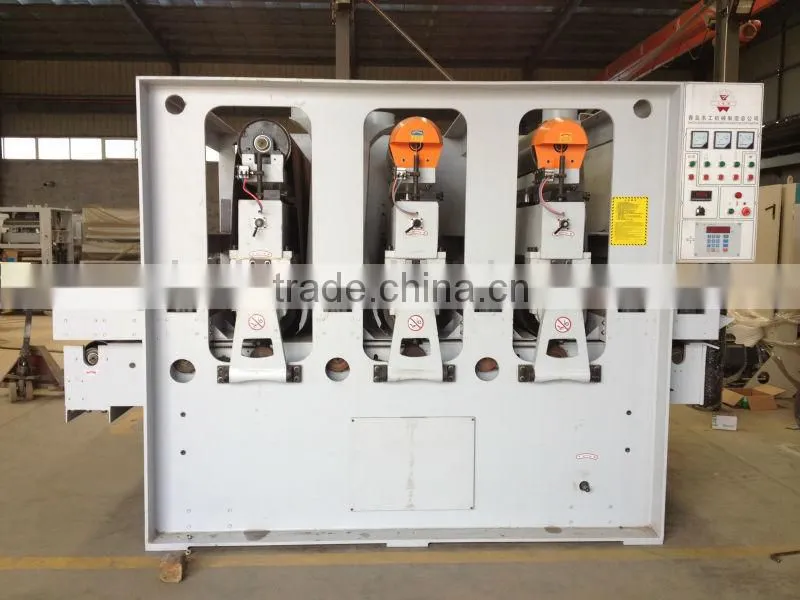

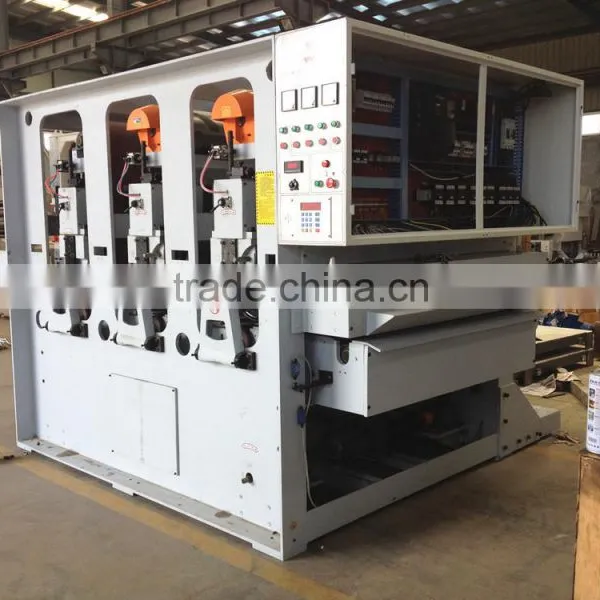

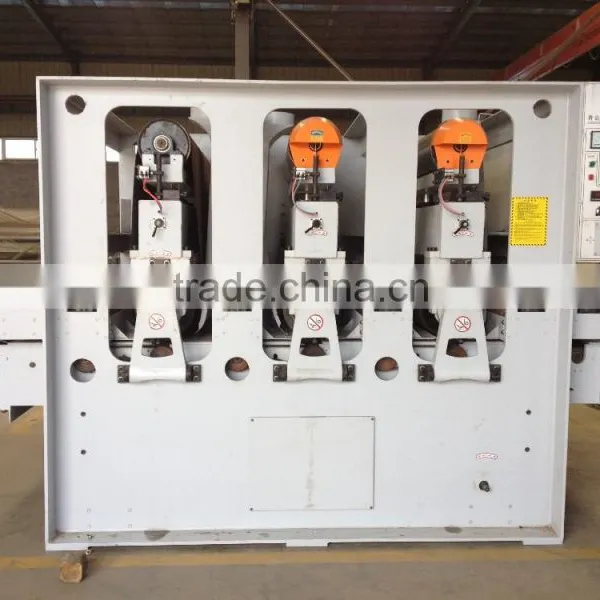

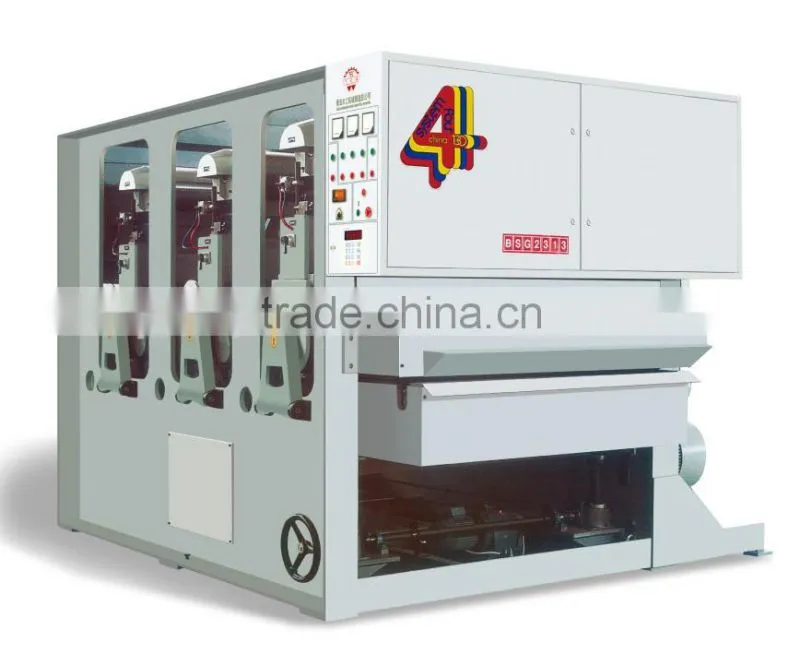

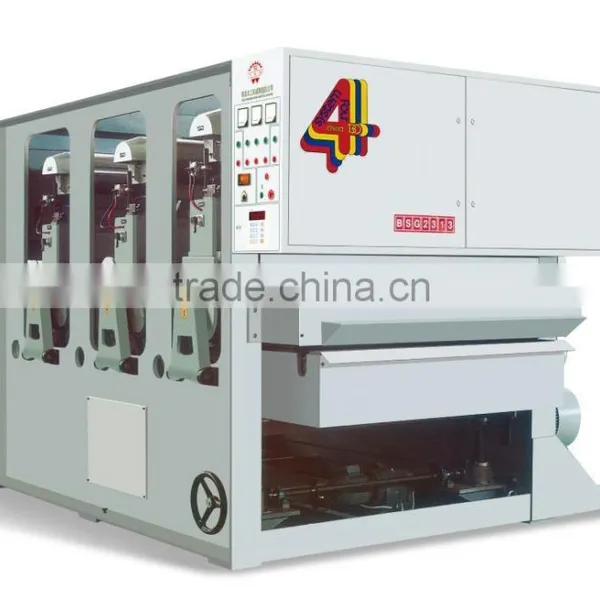

We supply BSG2313 BSG2316 three heads wide belt Durm Sander machine

Specifications

1 widely used in fancy plywood /particle board lines
2 for heavy calibrating and fine polishing.
3 Sanding speed is high

Product Description

Model	BSG231R-R-P	BSG2316R-R-P
width of sanded panel	40-1300mm	40-1600mm
thickness sanded panel	2.5-140mm	2.5-140mm
speed of abrasive belt on 1st unit	19m/s	19m/s
speed of abrasive belt on 2st unit	19m/s	19m/s
speed of abrasive belt on 3st unit	13m/s	13m/s
feed speed	13-100m/min	13-100m/min
size of abrasive belt	1330x2620mm	1630x2620mm

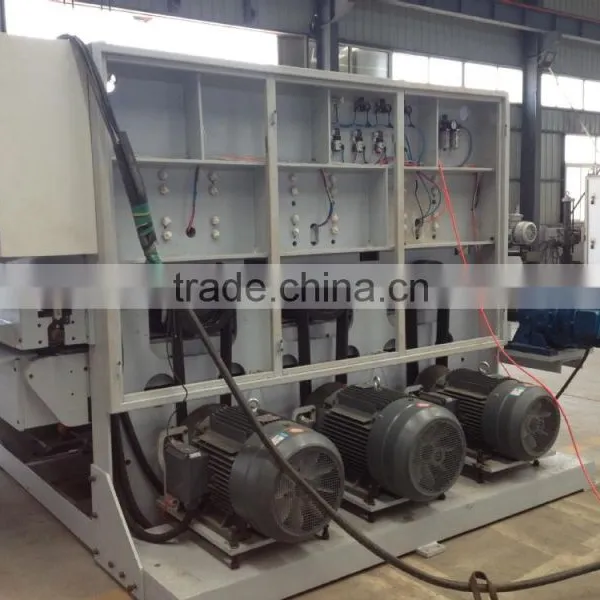

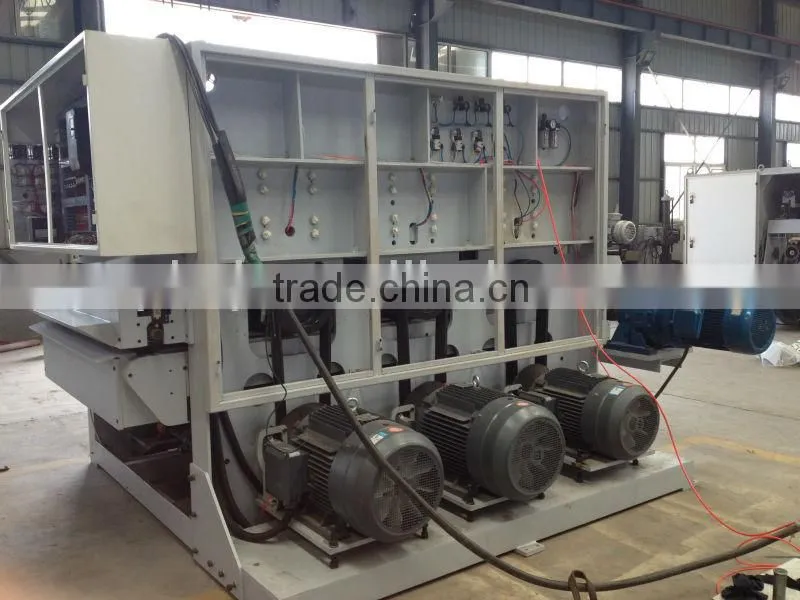

total motor power	108.5kw	109.1kw
Motor power of 1st unit	37kw	37kw
Motor power of 2nd unit	30kw	30kw
Motor power of 3rd unit	30kw	30kw
Feeding motor power	11kw	11kw
Lifting motor power	0.25Kw	0.75Kw
Brush motor power	0.25Kw	0.37Kw
speed required for cleaning equipment	25-30m/s	25-30m/s
compressed air volume	≥15000m³/h	≥18000m³/h
overall dimensions	3540x2700x2210mm	3540x3020x2210mm
N.W	10000kg	14000kg

1 Adopt world-advanced experience, a special machine-type designed meticulously

2 Suitable for sanding various kinds of panels for factories that specialized in manufacturing woodworking panel.

3 It is simple in design, convenient in operation and maintenance safety and reliable, with extra-low fault rate

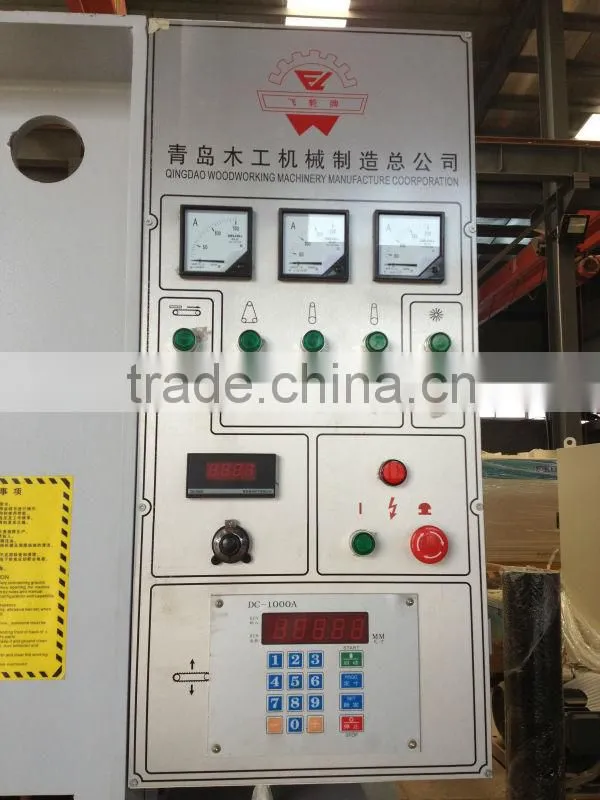

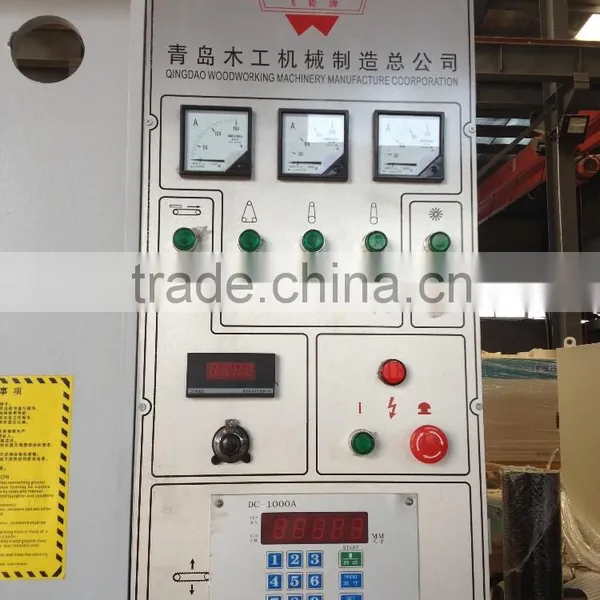

4Sanding speed is high, with high efficiency and accuracy. Feed power adopts frequency converter. Feed speed is digital display and it can be adjusted according to different demands

5 More safety devices are designed, safety and reliable, while you operate the machine, it can assure safety for operator and the machine, and it can save working manpower

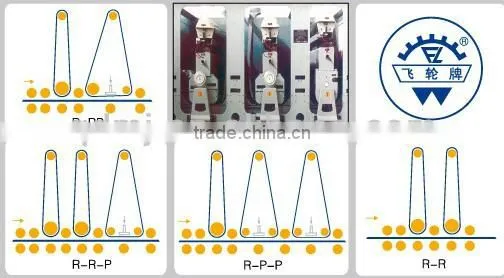

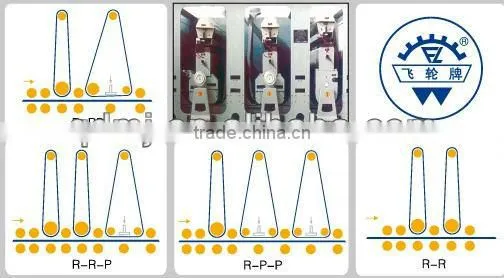

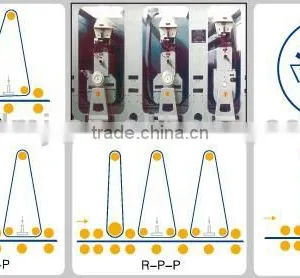

6 Three groups of sanding units can perform calibrating and polishing processes at one time. The first and second units are rubber rollers, the third one is sanding pad. The roller can be changed according to customer requirements. Sanded panel thickness is uniform and the surface is flat and smooth

7 Carefully chosen world-advanced electric appliance elements, normal working state can be assured effectively

Packaging & Shipping

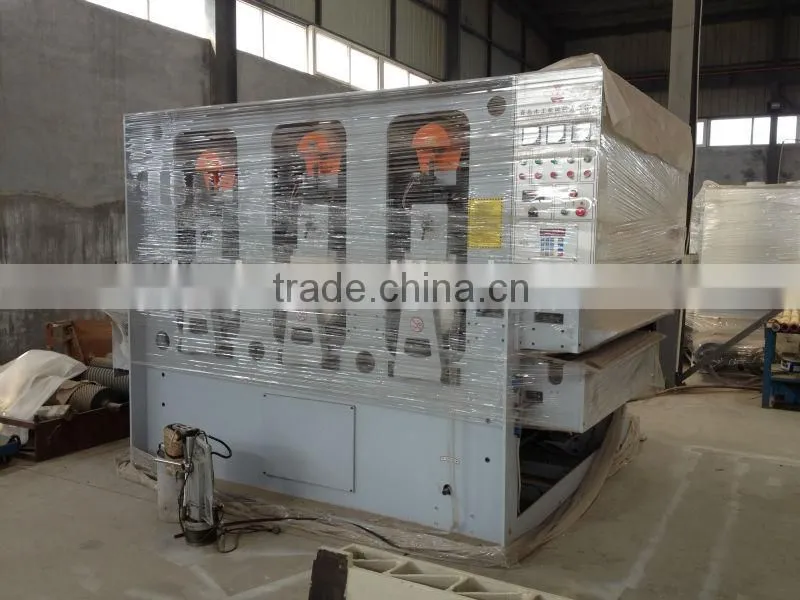

Package: PE film package.

Delivery: About 20 days after receive the down payment.

Company information

Qingdao Haozhonghao Woodworking Machinery Co., Ltd. previously was Qingdao Woodworking Machinery Manufacturing Company, and was established in 1958.

With more than 50 year experience in making woodworking machines, we got license from Italian DMC Corp. in 1985 to produce wide belt sanders. We firstly put BB1342 vertical slicer into the market in China. We developed BB1335B Horizontal Veneer slicer by integrating the internal and international technologies, the max slicing width reaches 1300mm. We are the first company which was certified by ISO9000 in the industry, and also a hi-tech enterprise in Qingdao.

FAQ

What is the Warranty of machine?

Machine supplied quality guarantee period: one year for mechanical parts and three months for electrical parts. Warranty is counting from the date of B/L.

What is the Max working width of Sanding machine?

Usually 600- 1300mm. Also It can produce as clients requests.

Why choose HAOZHONGHAO?

1,Professional: We have more than ten years experiences in exporting high quality woodworking machinery, especially Sanding Machine, Veneer Slicer and Grinder.

2,Excellent: Established in 1958, ISO9001 certificated, cooperative with Italy DMC Company

3,Economial: We offer the good price with great quality because we do high-volume production manufacturer.

4 Location: One hour reach Qingdao port

How to contact me?

More details please contact Simon guan

Email: sales5 (at)

Skype: simon98178

Tel: 0086-84822277

Mobile: 0086-13455297096

Web:
