Home > Products > Aluminum Composite Panel > PE/ PVDF ACP Decorative Exterior /Interior aluminum composite panel

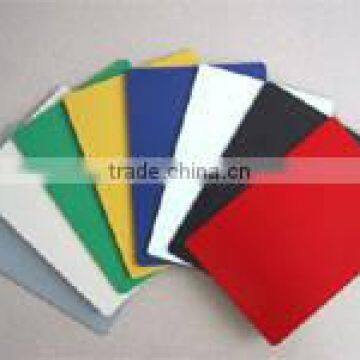

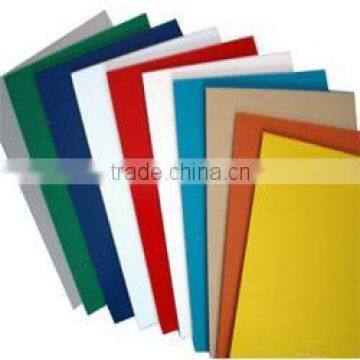

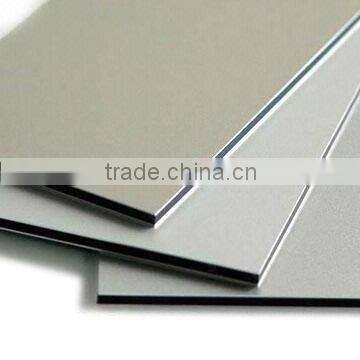

PE/ PVDF ACP Decorative Exterior /Interior aluminum composite panel

FOB Price

USD $4 - $12 / Square Meter

100 Square Meters(Min.Order)

Supply Ability 300000 Square Meter / Square Meters per Month
Port Shanghai
Payment Terms:T/T L/C D/P D/A Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Place of Origin:	Shanghai, China	Brand Name:	hoho	Usage:	Outdoor
Function:	Anti-Static, Antibacterial, Fireproof, Mould-Proof	Surface Treatment:	Anodized, Brushed, Foil Decoration, Mirror, PE Coated, PVDF Coated

Product Description

aluminum panels for walls aluminum composite panel.

Thickness: 4mm 6mm 8mm up to 20mm (only in Bolliya with special cladding profile)

Aluminum Skin: AA1100, AA3003 AA3005 AA5052 optional.

Paint:	PVDF, PE Or Others
Skin Alloy:	1100, 3003, 3005, 5005, 5052
Standard Thickness:	4mm (details as below chart)
Standard Size:	12202440, 15004000
Coating Thickness:	>25UM (kynar, FEVE) >18um(PE), None for other metals

Coating thickness	ECCA-T1[1995]Comply with customer standard	Kynar 500, 70%+ FC resin 28um +
Gloss Deviation	ECCA-T2[1995]30 (60 °) +/- 5 E	Gloss	10%
Colours Deviation	ECCA-T3[1995]ΔΕ≤0.8(CIE - L a b - system)	ΔE	0.4-0.5
Pencil hardness	ECCA-T4[1995] ≥H	2H
Impact resistance test	ECCA-T5[1995] 1 kg of weight falls from specified heigh	no detainting no cracking
T-Bending	ECCA-T7[1996] 0T Without severe cracks	1T
Coating adhesive	not lower than class 1	not lower than class 0
MEK-test	ECCA-T11[1999]	Over 200
Acid Resistance	70% HNO3 30mins	ΔE< 5%
Boiling test	Bended sheets 1.0T after 5 minutes in boiling water	without cracks
Tensile Strenght	155-180(Mpa)	≥155
Yield strength	≥130Mpa)	≥130
Elongation	≥3%	≥3%
This test resulte is randomly tested by internal QC department and result in average datebase.

Painting: Kynar 500 PVDF resin with quality dying material only from PPG or Beckers.

2-3 coating system as one of PPG's authorized coater in China

Color remain bright and vivid after long time duration even under server weathering considtion.

Why Kynar 500 PVDF coating? The one and only resin human could find can survive server neveda desert environment. PPG is the oldest PVDF resion supplier in the world,

and they are famous for colorful and durability of dying materials. Choosing Bolliya aluminum composite panel means the everlasting of your building.

Color: More than 30 standard colors and customerized colors available. Strict ΔE control.

ΔE means the color coherence control in same or different batch, eash the pressue on client's stocking plan or supplying line.

Core: PE flexible core or FR core
