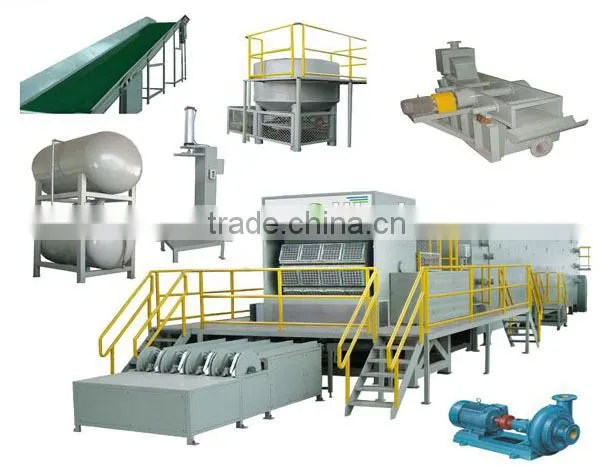

HGHY high quality best service egg tray machine E3000B made in China factory

Specifications

- Fully automatic
- Energy saving and labor utilization
- Making egg trays in good shape
- Reliable supplier
- HGHY Brand



HGHY high quality best service egg tray machine E3000B made in China factory



Mainly used for the products with simple structure but in big quantity, such as egg trays, fruit trays, cup carriers and disposable medical care products

Status: Brand new

Product Type: Egg Tray Machine

Processing Type: Pulp Molding Machine

Place of origin: Guangdong China

Brand: HGHY

Item no: XZ8-16040-E3000B1C

Voltage: 380-440V

Approval: CE

Warranty: 12 Monthes

After-Sale Service: Engineers available to service machinery overseas





Capacity(B)	Pulper	Rotary Forming Machine	Dryer
2000 PCS/hr	Volume 2m3, power 37Kw	4 forming platens, platen size 1600X400MM	6 layers/Single layer, outline dimension 15000X2120X4200MM, Fuel: diesel, gas, LPG
3000 PCS/hr	Volume 3m3 , power 55Kw	8 forming platens, platen size 1600X400MM	6 layers/Single layer,  outline dimension 18000X2120X4200MM, Fuel: diesel, gas, LPG
4000 PCS/hr	Volume 3m3 , power 55Kw	12 forming platens, platen size 1600X400MM	6 layers/Single layer,  outline dimension 21000X2120X4200MM, Fuel: diesel, gas, LPG



Remarks: The capacity calculation takes the production of 30 cavity egg trays as the standard.

(Size 300X290MM, weight 70g)

















Pulping system
Main equipments:pulper,3m³,55kw;vibration screen,1.8m²,4kw; consistency controller;mixer; pulp pump,water pump,control cabinet

for pulping system,etc.

Forming system

Consist of 8 pcs of forming platens and 1pc of transfering platen. Platen size:1600*400mm. 4pcs of 30-cell egg tray molds can be

mounted on each forming platen(4pcs/cycle). There are 16pcs of forming molds and 4pcs of transfering molds in total. Forming

efficiency :12-14cycles/min;equiped with vacuum auto drain system,auto cleaning system for the forming mold, preheating system

and auto control cabinet.

Drying system

Outline dimension:18000×2120×4200mm;6 layer conveying chain; heated concentratedly; one burner with French or Italian brand.

The energy for option: LPG,GAS,diesel oil. Equiped with auto control cabinet.

Stacking system
The finsihed products will be counted and stacked automatically after drying.

Height Limit Pressor

It will press and make the products more compact after stacking so that storing and transporting will be more convenient and

cost-effective .

Subsidary  Equipments

Vacuum pump,75kw, 1set, 30kw,1set; air compressing system: air compressor syetem,air dryer,air filter and air storage tank.
