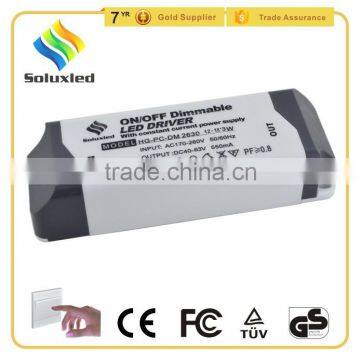

300mA Constant Current Professional ON/OFF Dimmable LED Driver With CE Certification, LED Down light Driver
- 300000 Piece / Pieces per Month
- Jiangmen/Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
- External Close Frame 20W Plastic LED Transformer 600mA Constant Current 0-10V Dimmalbe Driver LED
- 40W 1200mA CE Approved Constant Current Indoor Lamps Driver Dimmable Led Power Supplies
- 30W 900mA 20-35V 0-10V Dimmable LED Driver With Constant Current
- 10W 300mA 0-10V Dimmable LED Driver With Constant Current and CE Certification
- 12W 300mA External ON/OFF Dimmable LED Driver With Plastic Shell
- 600mA ON/OFF LED Dimmable Driver, Led Down Light Driver
Product Details
Place of Origin: | Guangdong, China | Brand Name: | SOLUXLED | Model Number: | HG-PC-DM2630 |
Output Power: | Other, 20-28*1W | Output Type: | Single | Input Voltage: | Other, AC170-260V |
Output Voltage: | 60-95V | Output Frequency: | 50-60Hz | Output Current: | 300mA±5% |
Product Description
Model | HG-PC-DM2630 | Application | ||
Input | Voltage Range | AC100-260V | AC100-260V |
led panel lights, led downlights, led ceiling lights wall lights...ect indoor lights
|
Frequency Range | 50/60Hz | 50/60Hz | ||
Power Factor(PFC) | ≥0.80 | ≥0.80 | ||
AC Current (Max.) | 0.51A | 0.98A | ||
Output | DC Voltage Range | 60-95V | 40-63V | |
Constant Current Range | 300mA±5% | 550mA±5% | ||
Rated Max. Power | 20-28*1W | 12-18*3W | ||
Ripple | 2Vp-p | 2Vp-p | ||
Efficiency | 77-85% | 77-85% | ||
Protection | Overload | Yes | ||
Short Circuit | Yes | |||
Over Voltage | Yes | |||
Over Temperature | Yes | |||
Others | Type | Constant Current & Isolation | ||
Waterproof Level | IP22 | |||
Dimension/Weight | 125*42*28mm | |||
Packing/Carton Size | 43*30*25cm | |||
Cable | No | |||
Housing Meterial | Plastic Case | |||
warranty | 3 years | |||
Certificate | CE/ROHS | |
Small size,High efficiency,High reliablility,Long lifetime;
IP22 rating;
Working temperature-40~+65°C;
Protection:Overload,Short-circuit pratection,Over-temperature;
Start delay design,which can reduce the starting current when multipe simulatance start;
CE,EMC certificate,ROHS compliant;
Low output ripple noises.
NO.1 >> ARE YOU A MANUFACTURE?
Yes, we are 7 years manufacture experience , Already field certification by BV ( Bureau veritas ).We have Complete production equipment and R & D testing equipment as the Samsung brand SMT equipment, reflow, wave soldering wind And EMC / EMI testing equipment, high voltage tester, harmonic tester, pressure test, oscilloscope ...... etc
NO.2 >> WHAT IS YOUR SUPPLY CAPACITY ?
We can produce 300,000pcs per month.
NO.3 >> HOW DO YOU CONTROL THE QUALITY ?
All of components in the LED driver are at popular brand company,besides,quality inspector is responsibility for inspection incoming material,which control the quality from the source. 100% burn-in test before shipping.
NO.4 >> CAN YOU SEND US SAMPLES ?
We can send you the samples, will be according to your order requirements.
NO.5>> WHAT IS YOUR DELIVERY TIME ?
Some items we have stock can delivery in 24hours,we will be according to your order requirements.
Normal products: 5-7 days Customized products : 10-20 days.
NO.6 >> WHAT IS YOUR PAYMENT TERM ?
NO.7 >> HOW MANY YEARS WARRANTY FOR YOUR PRODCUTS?
Normal products can provide 3 years warranty, also can OEM for 5years.
Life-long maintance service for SOLUXLED's product about AFTER -WARRANTY SERVICE .
NO.8 >> ABOUT EXCHANGE & WARRANTY POLICY
Quality: 0.5% more or less is allowed for Electronic products .
For problematic items more then 1% , we will change new items or replace it for you.Send back us to test if possible, so that we can take the solution accordingly depending to the test report.
For all your inquiries,please contact us immediately,We will according to your actual situation to provide the best solution for you.
Remark: Due to products improvements, Product specifications, quality will be subject to the sample and according to the factory's standard configuration.
