Related Products
Specifications
membrane ptfe film1.ptfe flim Anti-caustic,abrasive resistance
2.thickness:0.1-0.5mm
3.width:10~1500mm
4.any length offer

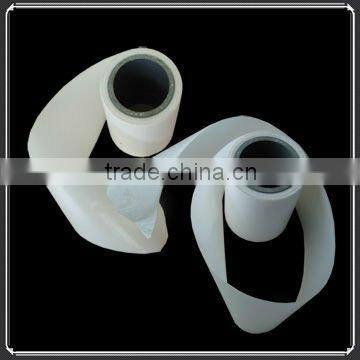

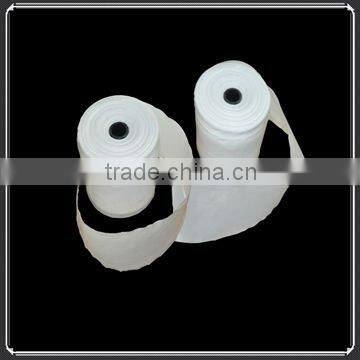

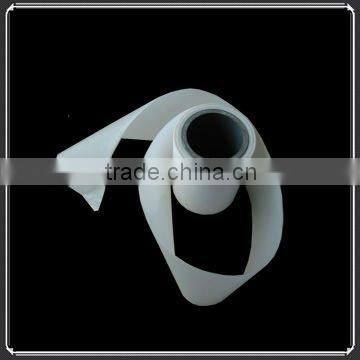

membrane ptfe skived film
ptfe/plastic film
Anti-caustic, abrasive resistance
Ptfe teflon Skived film
1).thickness : 0.1mm
width:10~500mm
length: unlimited
2). thickness : 0.15mm
width: 10~1000mm
length: unlimited
3). thickness : 0.2~0.4mm
width: 10~1200mm
length: unlimited
4). thickness : 0.5~12mm
width:10~1500mm
length: unliminted
essential color, -180oC-260oC(no load), ptfe molded and ptfe skived flim.
surface: homogeneous, smooth without rift, crack, air bubble, and mechanical scratch.
A few exogenous impurity is permitted.
application: all sorts of corrosive medium.
Property | Unit | oriented film | Skived film |
Tensile strength (min) | MPa | ≥30.0 | ≥10.0 |
Elongation at rupture | % | ≥30.0 | ≥100.0 |
1MHz dielectric loss tangent≤0.01mm>0.01mm |
| 3.0×104 2.5×104 |
— —
|
1MHz dielectric constant |
| 1.8~2.2 | —— |
Dc breakdown voltage (Normal temperature) | KV/MM | 200 | 40 |
Now available standard of our PTFE skived film
Thickness(mm) | Width(mm) | Length(mm) |
0.1 | 10-500 | unlimited |
0.15 | 10-1000 | unlimited |
0.2-0.3 | 10-1200 | unlimited |
Remark: the thinnest thickness is 0.1mm---0.5mm
PTFE (Teflon)
Virgin, or unfilled, PTFE (of which Teflon is a trade name) is widely used due to it's unique combination of properties:
Characteristics:
Outstanding chemical resistance (unmatched by any other plastic)
lowest coefficient of friction of any plastic
superb electrical insulator
high resistance to weathering
wide working temperature range (-180C to +260C)
Typical applications:
Seats
Seals
Insulators
Sleeves and Liners
Bellows
bridge and pipe bearings
Properties (typical):
Colour: White
Density: 2.22 g/cm3
we offer above products

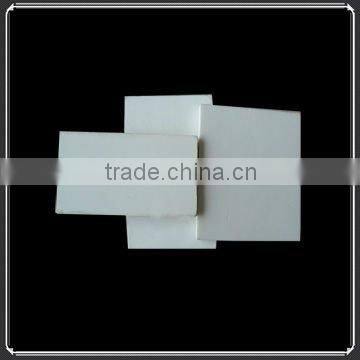

PTFE teflon moulded /skived sheet
PTFE teflon skived film/tape
PTFE teflon moulded/extruded rod
PTFE teflon moulded/extruded tube
PTFE teflon extruded capillary tube
PTFE teflon gasket sealing material
Filled PTFE teflon products
PTFE teflon component
