square 16*16 LED ws2812b digital pixel led matrix display -256pixels

FOB Price

USD $1 - $2 / Meter

5 Meters(Min.Order)

Supply Ability 50000 Meter / Meters per Month
Port shenzhen
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

LED Light Source:	SMD5050	Type:	Flex LED Strips	Input Voltage(V):	DC5V
Lamp Power:	51W	Lamp Luminous Flux(lm):	18lm	Color Temperature(CCT):	Addressable
Working Temperature(℃):	10, 50	Working Lifetime(Hour):	50000	Lamp Body Material:	Copper
Certification:	CE	Emitting Color:	Other, yellow/red/green/blue/white	Place of Origin:	Guangdong, China
Brand Name:	TS	Model Number:	TS-W2812-2562

Product Description

square 16*16 LED ws2812b digital pixel led matrix display -256pixels

Model number	TS-W2812-2562
LED TYPEE	SMD 5050 RGB chip

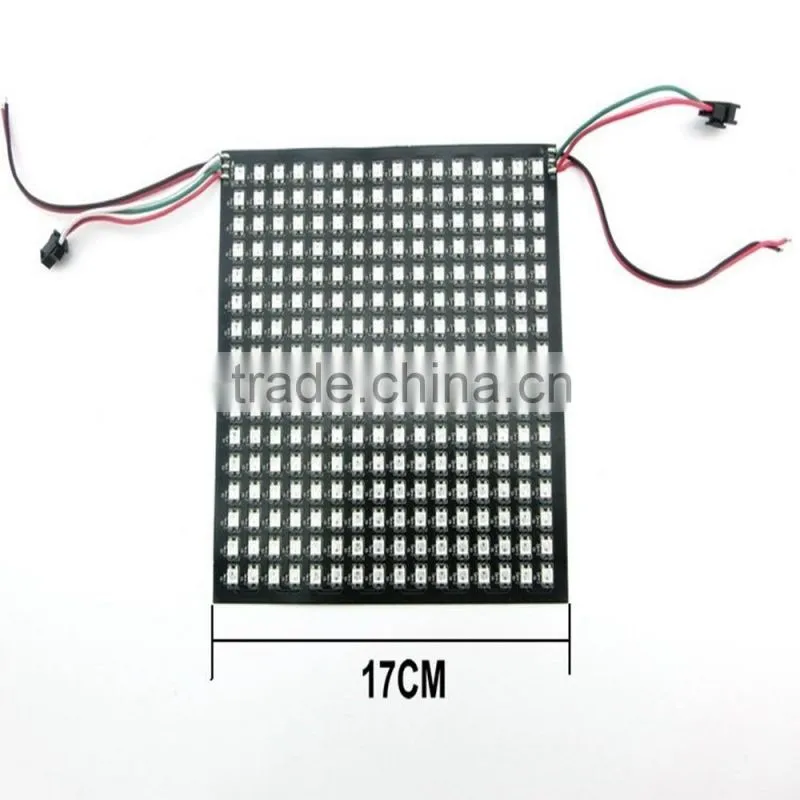

PCB SIZE	170mmx1700mm
IC Model	WS2812B (W2811 IC built -in 5050 RGB led chip )
Color	Addressable full color
View angle	140 degree
LED QTY	256LEDS
POWER	75w
Voltage	DC5V
PCB Pitch	10mm
IP rate	IP20/IP65(Silicon tube )/IP67/IP68
Application	indoor /outdoor decorative lighting ,ceiling lighting ,sign lighting etc.

Detail use information:

Small flexible 8x8 dot matrix led display ws2812b led matrix

1)You can create animations, games, or even incorporate them into a fun e-textiles project. On top of all that,
thanks to its flexible backing, this LED Matrix can be bent and bowed to fit onto almost any curvy surface.
2)These panels require a 5V low voltage input for power which needs to be able to source a good amount of current
– up to 5A in most uses (15A if all LEDs are set to bright white, which is NOT recommended).
3)Attached to each flexible LED matrix are two 3-pin JST SM connectors and two sets of bare power cables (input / output), which provide you connections for DC5V+, COM-, DAT, and GND. Needless to say, if you are looking for
a large panel of addressable LEDs to fit the contours of almost any surface you’ve come to the right place.
4)Note: Repeated / Over bending may significantly reduce the structural integrity of the flexible panel. It is advisable when
bending it over curved surfaces to not be too rough with this product as you may damage LED traces or the panel itself.
Needless to say, do NOT fold this matrix in half!

Connection:

Small flexible 8x8 dot matrix led display ws2812b led matrix

SPI signal :LED strip+ LED power supply +led controller

DMX control :LED strip + LED power supply+DMX controller +DMX decoder

LED controller :T-series SD card controller ,RF remote controller .DMX controller,Arduino.........(off line /PC online)

LED power supply :Meanwell power supply ,T- series ,A-series .... (waterproof /non-waterproof )

Controller and Power supply:

T-1000S +Meanwell power:

Detailed Images

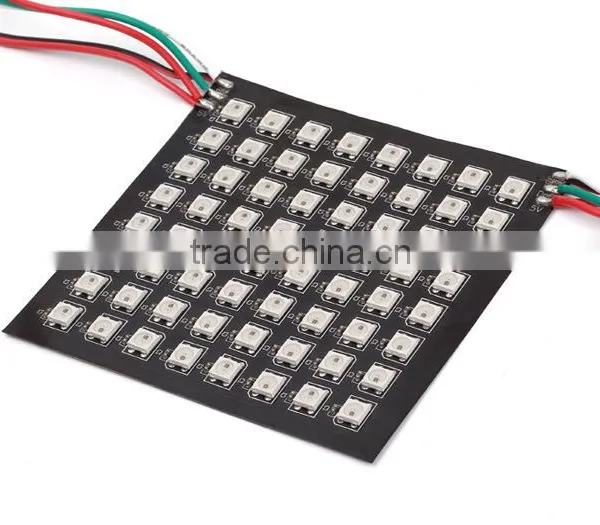

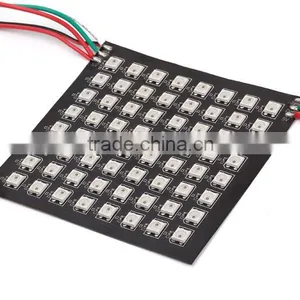

WS2812B 8*8 led matrix

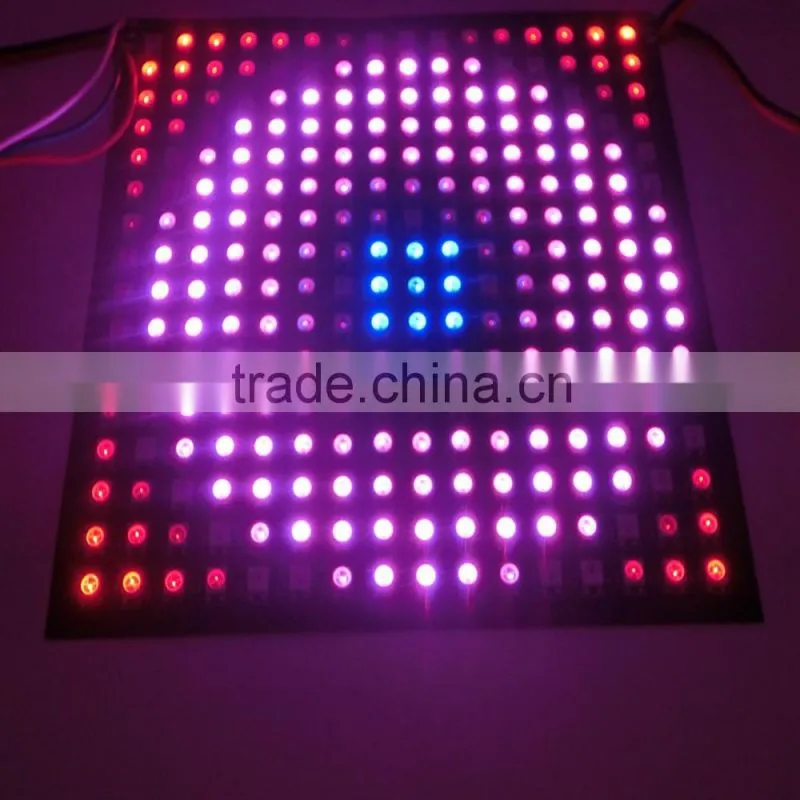

WS2812B 16*16 led matrix

WS2812B 8*32 led matrix

Application

house decorative lighting

outdoor lighting

logo decorative lighting

Certificate

Payment & shipping

Payment:

Standard payment Terms : pay 30% deposit in advance ,70% banalce before shipment

On-line Trade Assurance Order ,All is up to you !

More payment Tems could be provide!! ( T/T .Paypal .Western Union )

SHIPPING:

15-25 working days aftern payment receipt confrimed (Based on Actual Quantity)

Packing :standard export packing or according to customer's demend

Professional Hazards Goods shipping Forwarders
